Help CenterNickel Mesh
US$ 5 - 100
MOQ: 30 Meters
Key Specifications
Get Latest Price
Material:
Other, nickel
Type:
Wire Cloth
Application:
Filters
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Material
Other, nickel
Type
Wire Cloth
Application
Filters
Weave Style
Plain Weave
Wire Diameter
0.5-8mm
Technique
Woven
Model Number
NKMS
Brand Name
MAISHI
Product Description
Nickel mesh, mainly used for acid and alkali sieving and environmental conditions, gas, liquid filtration and other media separation.

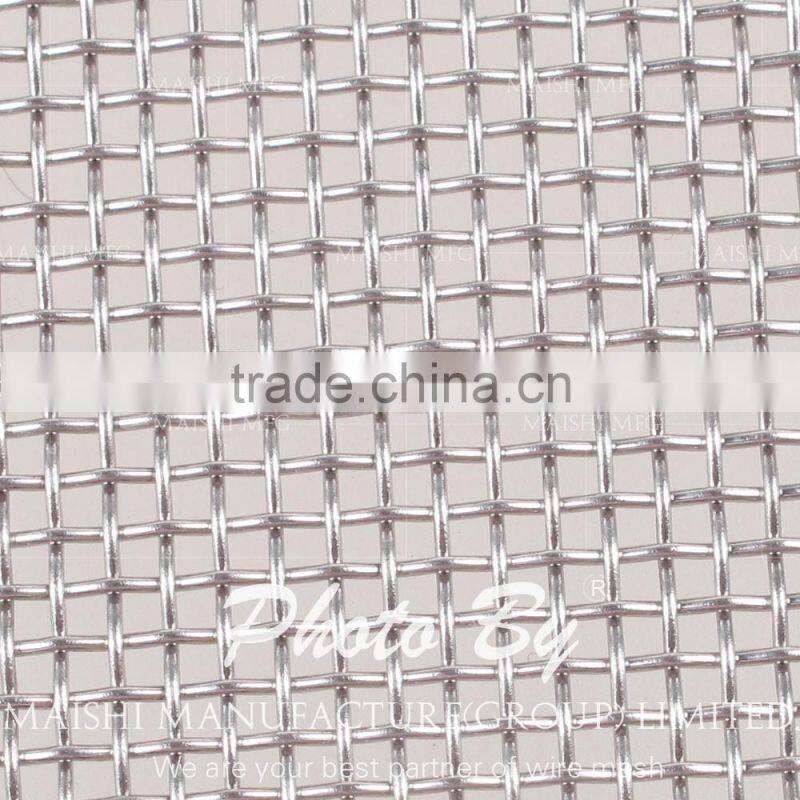

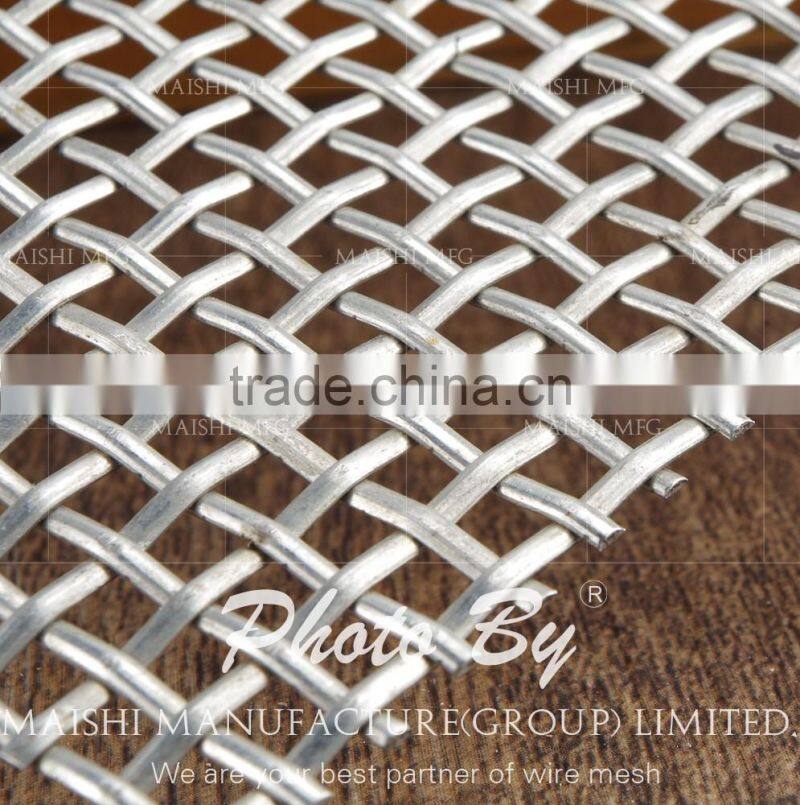

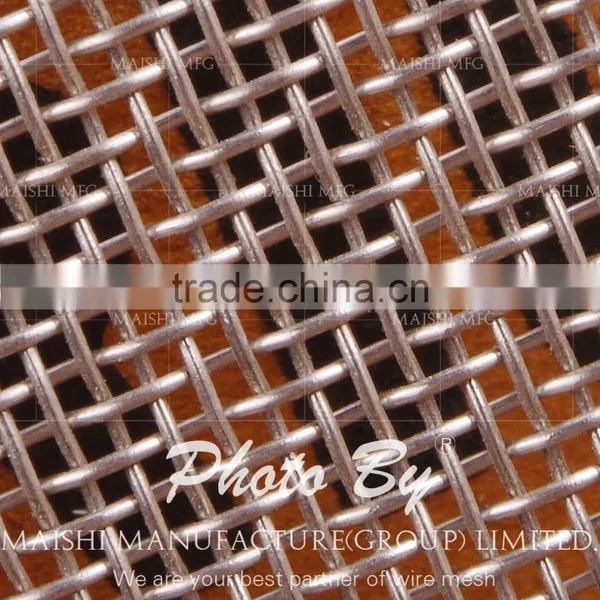

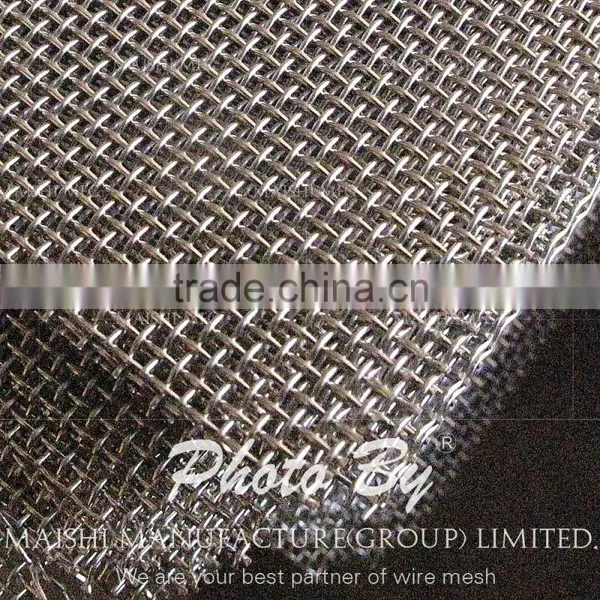

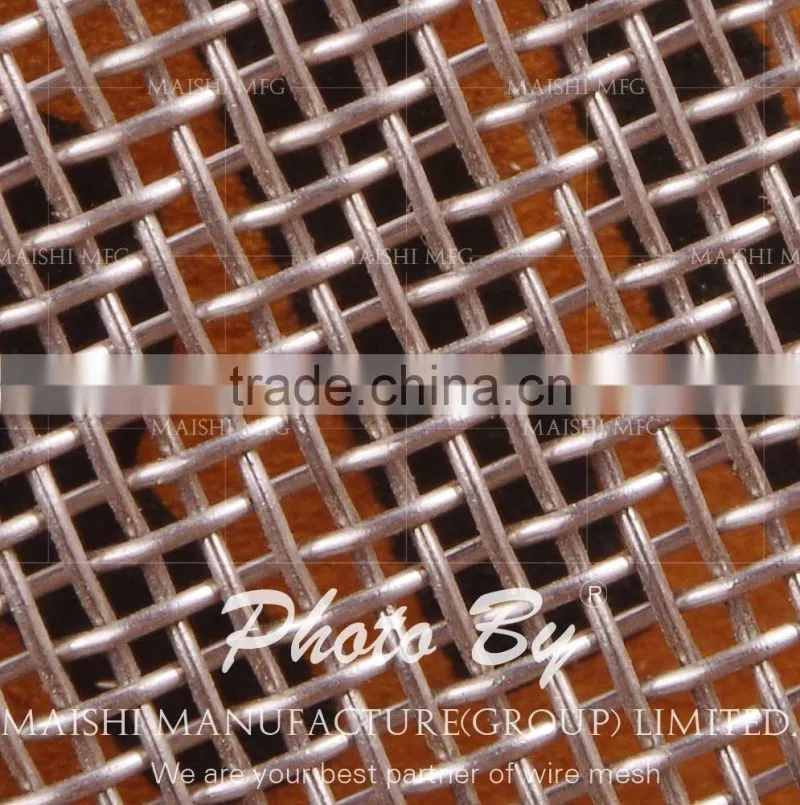

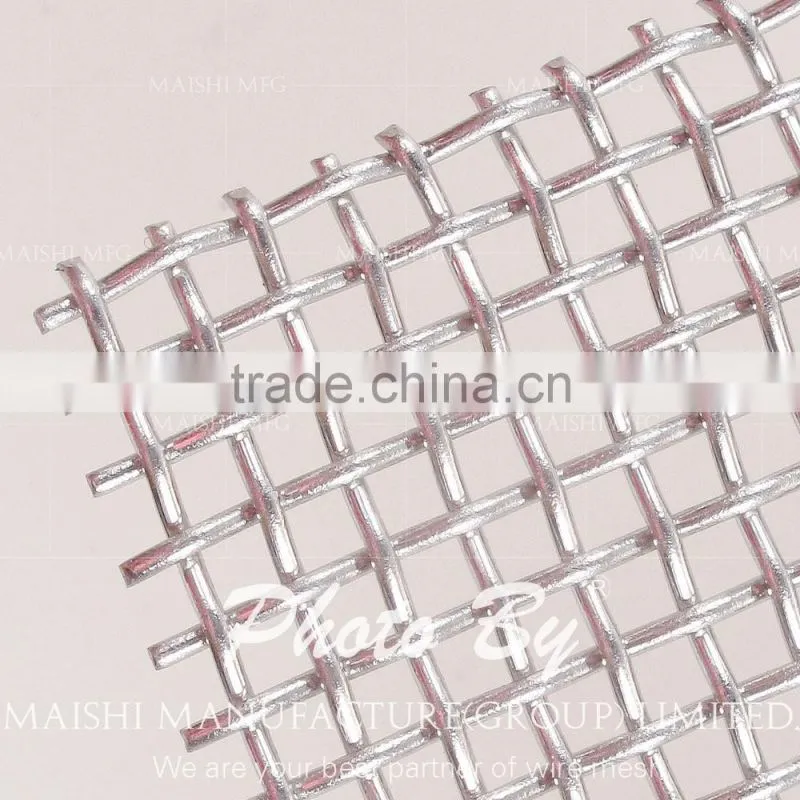

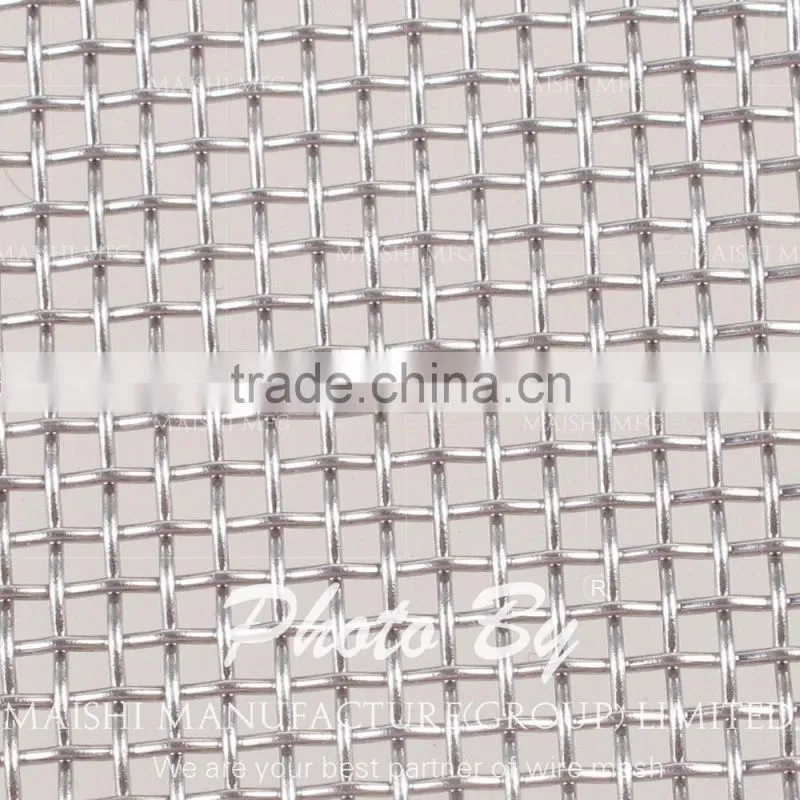

Plain weave nickel mesh
Most common weaving method, the main feature is the warp and weft wire diameter of the same density.
It is suitable for industries such as petroleum, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and so on. Nickel wire is woven into various specifications net and cloth. It has good acid resistance, alkali resistance and high temperature resistance.

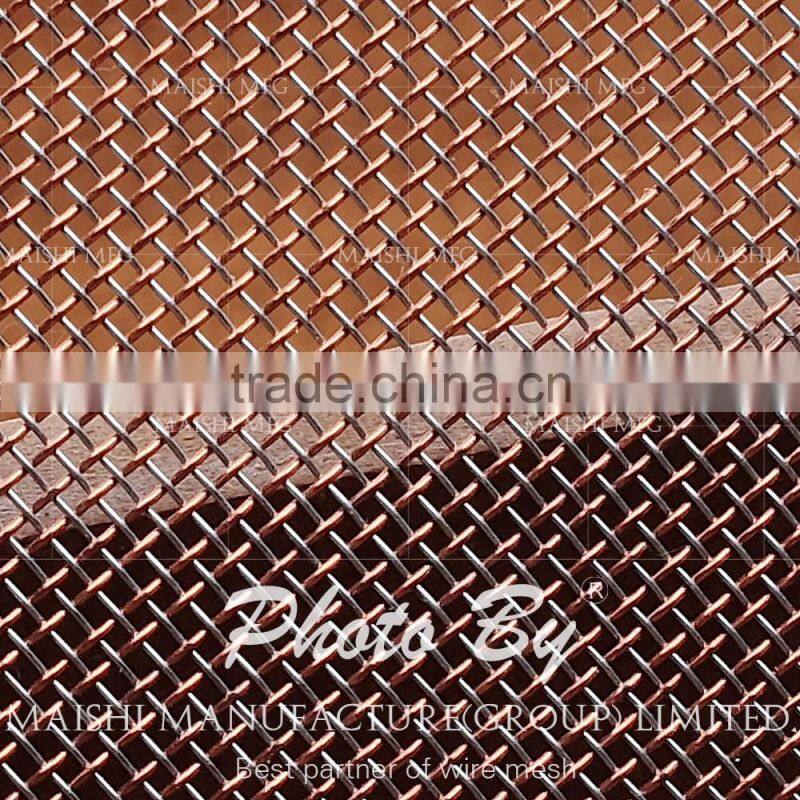

Twill weave nickel mesh
Twill weave is a kind of commonly used weaving method. One weft wire passes over two and under two warp wires, and one warp wire passes over and under two weft wires. The wire diameter for both( warp and weft) is mostly the same. It is square aperture.
Filteration rate is a little higher than the plain weave nickel mesh.

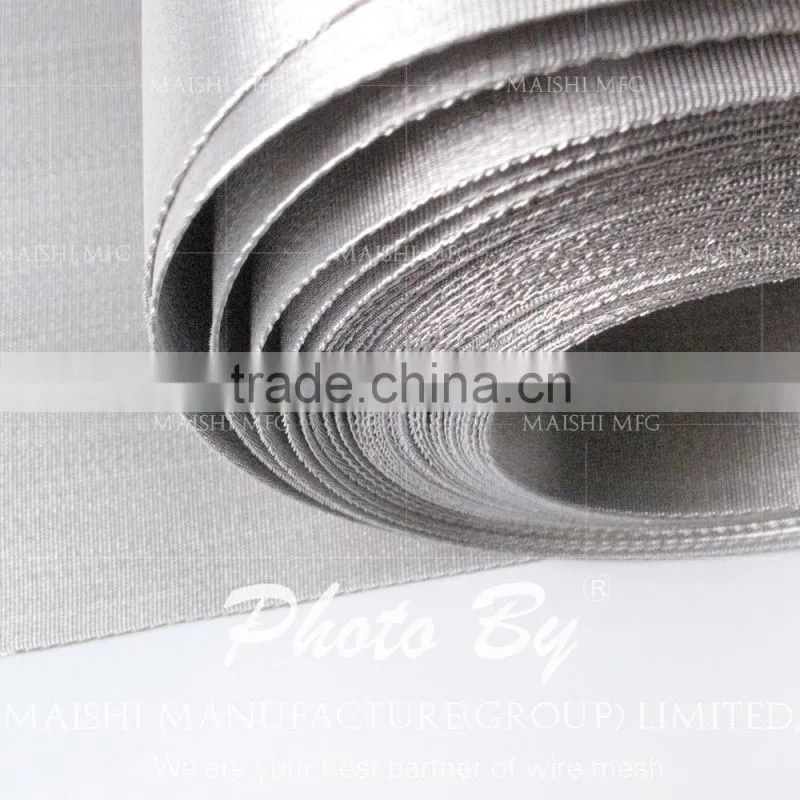

Plain dutch weave nickel mesh
Plain dutch weave is a kind of commonly used weaving method. Each warp wire and each weft wire passes over and under the next adjacent complementary wire, as in normal Plain Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction.

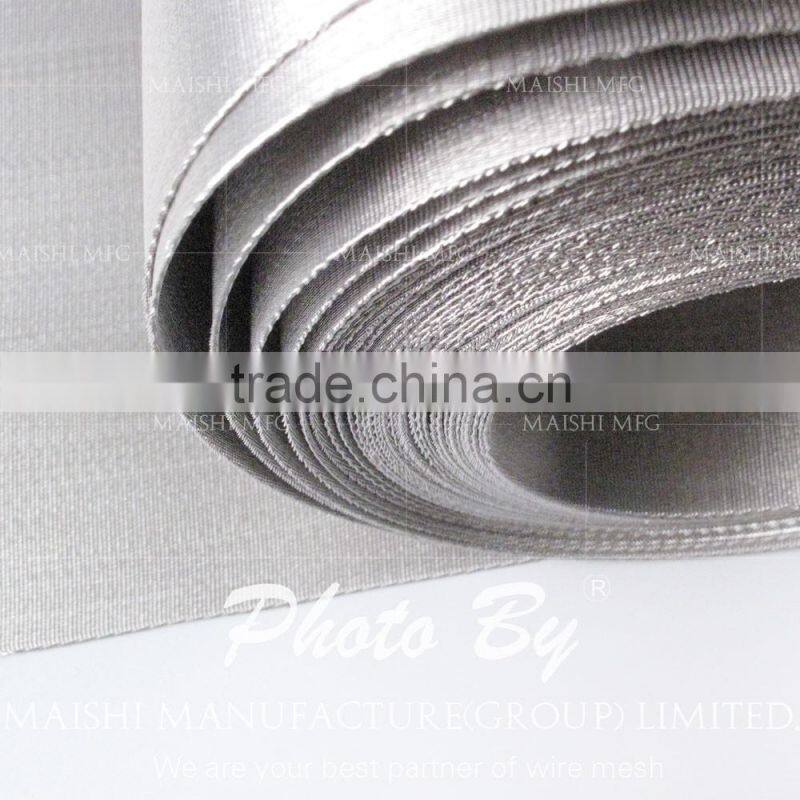

Twill dutch weave nickel mesh
Twill dutch weave is a kind of commonly used weaving method. Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, as in a normal twill weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction. This weave pattern enables the weft wires to be woven more densely, and much smaller aperture sizes can be achieved without forsaking cloth thickness.
Related Products
304 stainless steel mesh
click the photo to learn more
316 stainless steel wire mesh
click the photo to learn more

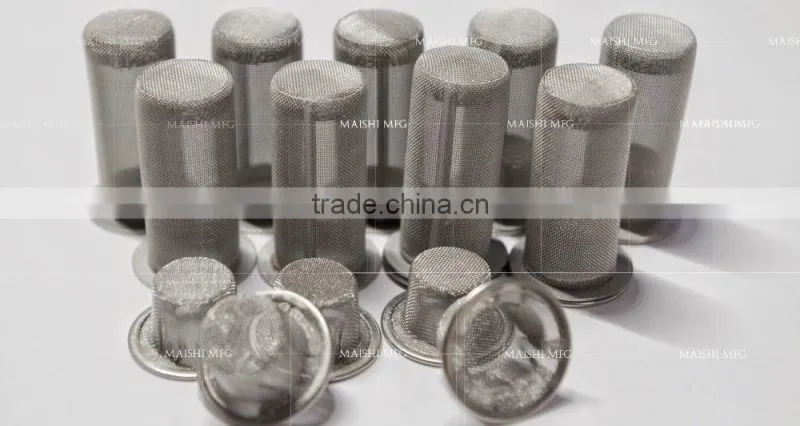

stainless steel filter
click the photo to learn more

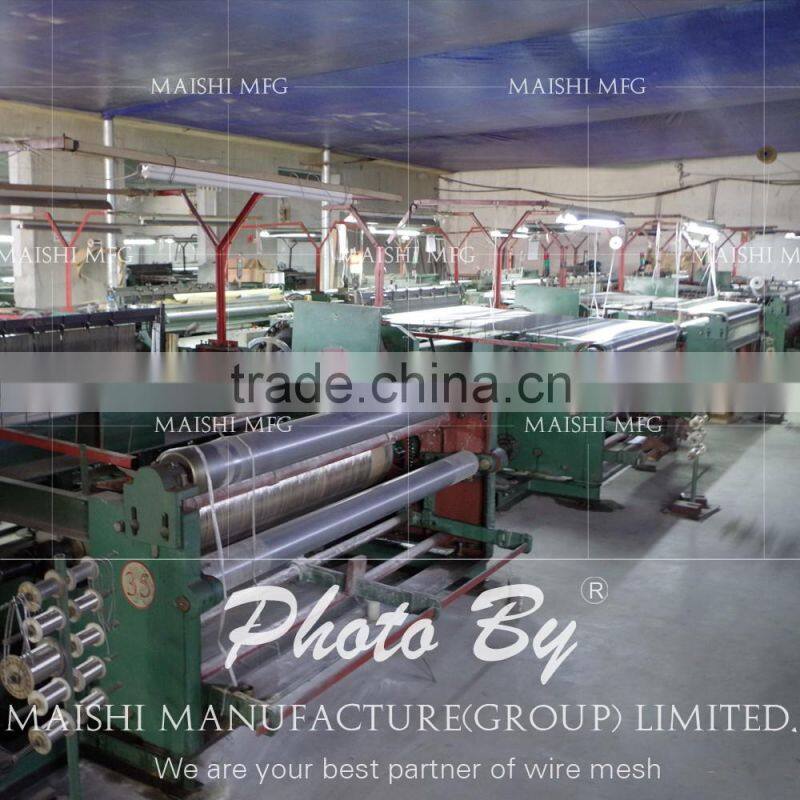

Our Company
We connected with production of stainless steel woven wire mesh and netting, since 1992, in China. The machinery and apparatus used in production process fully based on the high computer technology, so it is accepted as the only company capable of having TSE ( Chinese Standard Institution ) certificate and ISO 9001:2008, all of our produce according ISO9044：1999, JIS G 3555：2004, and ISO3310/BS410 etc.
Our mainly market of stainless steel wire mesh/colth in Germany, UK, Italy, Turkey, Korea, Thailand, Brazil, Mexico, Argentina, Egypt, Ghana, and other parts in the world. We have good reputation in the world with the quality and price. You are welcome to send by email or fax your inquiry for trial orders.
Certifications
Packing & Delivery
Contact
Send Inquiry to This Supplier
Mrs. Anna Wang
Business Director
Hebei Maishi Wire Mesh Manufacture Co., Ltd.
Shijiazhuang, Hebei, China
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2008
Factory Size
5,000-10,000 square meters
Total Employees
101 - 200 People
