Multi Span Greenhouse (ISO9001:2000)

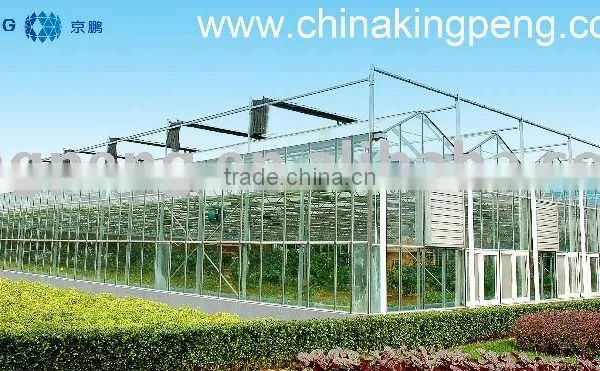

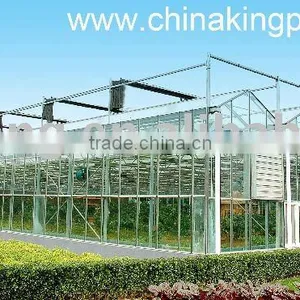

Multi Span Greenhouse (ISO9001:2000) photo-1

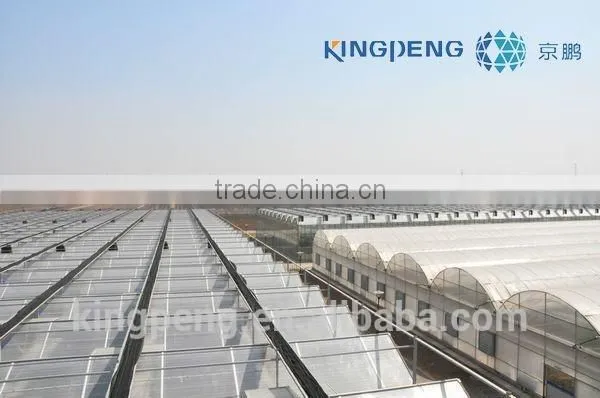

Multi Span Greenhouse (ISO9001:2000) photo-2
Multi Span Greenhouse (ISO9001:2000) photo-3
Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Size:
Large
Type:
Multi-Span Agricultural Greenhouses
Cover Material:
Glass
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Size Large
Type Multi-Span Agricultural Greenhouses
Cover Material Glass
Place of Origin Beijing, China
Brand Name kingpeng

Greenhouse Introduction:



Greenhouse for vegetable,eco-restaurant,flower market,luxury flower plantting and seed nursery.



1.Framework: Double side hot galvanized steel.

2.Covering Material: One layer glass or two-layer glass.

3.Door: Sliding door,Aluminum alloy framework covered by glass.



Multi Span Greenhouse (ISO9001:2000)



Greenhouse Features:



1. Intellectual control system keep suitable humidity,temperature,light and so on.

2. Steady high light transmission and good ventilation.

3. Greenhouse main structure with 25 years life span.

4. Kingpeng has many patent rights in greenhouse field.

5. Professional R&D center guarantee top quality.

6. Design according to customers' local climate condition.

7. Good after-service:Kingpeng could send engineer go abroad for correct installation.

8. Popular in the world (name brand: Kingpeng).





 Multi Span Greenhouse (ISO9001:2000)



Specification for Greenhouse:



Model

Cladding material

Ridge Type

Span(mm)

Gutter height (mm)

Top height (mm)

LB96Ss4N

Float/Tempered Glass

Triplicate Ridges

9600

4000

4800

LB96Ss4S

Float/Tempered Glass

Triplicate Ridges

9600

4000

4700

LB80S4

Float/Tempered Glass

Double Ridges

8000

4000

5000

LB120Ss4

Float/Tempered Glass

Triplicate Ridges

12000

4000

5000

LBB96Ss4

Double Layer Glass

Triplicate Ridges

9600

4000

4900





2. Covering Material:



Float glass. (Single-layer or double-layer)

This glass is molded in the tin tank with the gas (H2, N2) and has high smoothness. And excellent light transmittance rate is more than 90%. In addition, it has better resistance and UV compartment capacity. And low thermal expansion and contraction coefficient. All the features decide that this kind of glass could last more than 20 years with good appearance.



Toughened (Tempered) Glass. (Single-layer )

Toughened or tempered glass is a type of safety glass processed by controlled thermal or chemical treatments to increase its strength compared with normal glass. when toughened glass broken,  it will crumble into small granular chunks instead of splintering into jagged shards. However, the light transmitance is nearly the same as normal float glass.



Scattering Glass( Single-layer)

Scatering Glass is a kind of newly designed glass which is specially treated on the surface and structure and it can divide the direct light into smaller beams of light with different directions. It increases the light transmitance and uniformity in the greenhouse and decrease the shadow area of greenhouse structure effectively. The light transmitance of scattering glass is more than 97.5% and it can increase more than 15% production.



Multi Span Greenhouse (ISO9001:2000)



What can we do for you?

1. Reliable Design: Kingpeng has won numorous patent rights in greenhouse field and occupy the leading positon of the greenhouse.
2. Strong Technology Team: Professional R&D center guarantee top quality and advanced reliable design for each project.
3. Personal Custom: All the greenhouse design is made according to customers' local climate condition and requirements.
4. Good after-service: Kingpeng could send engineer go abroad for correct installation, horticultural service and other service for you.

About Kingpeng:

Kingpeng is the biggest greenhouse manufacturer and exporter in China. We have exported different kinds of greenhouses to more than 40 countries and regions in different climate areas, including Turkey, Iraq, Iran, Russia, Qatar, Kuwait, UAE, Saudi Arabia, America, Ethiopia, and Angola etc. We try to provide you the best greenhouse and service.

If you have any requirements and questions about the greenhouse, please feel free to contact us.

Our advantages:

Different design and equipments can be chosen according to the customer’s requirements and conditions. We try to provide the best options and service for the users of the greenhouse. Meanwhile, our greenhouse have very high quality and competitive price compared to the same level greenhouse.

Delivery Information:

The delivery period of greenhouse project depends on the greenhouse type, size and inner configuration etc. and the detailed days should be confirmed after we confirm all the information above.

Kingpeng makes sure the strongest packing in our factory, the fastest delivery speed and the best quality of our greenhouse product. We will provide as long as 12 months quanlity guarantee for the whole greenhouse and its material after the delivery and horticulture service after the greenhouse completed.
