Specifications
ozone generator for water treatment (CE)stronger than any other chemical disinfectants in terms of its sterilization capacity

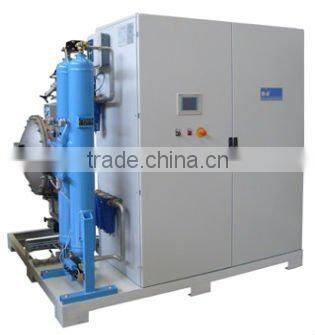

ozone generator for water treatment (CE)
Profile
Our ozone generator, as the name depicts, is a machine applied to generate ozone. Ozone is a very strong oxidizing substance. With its oxidizing performance, it could be used to destroy the biological structure of the bacteria, viruses, and other microorganisms and kill them in a short period of time. When the density of ozone reaches 0.3-2 mg/L, it can kill bacteria in 0.5-1 mins. While its density reaches 4 mg/L, it can kill 100% inactivated hepatitis B virus in just one minute. Therefore, the ozone is stronger than any other chemical disinfectants in terms of its sterilization capacity.
Parameter:
The technical of ozone generator with air source
| Type | Ozone output | Flow | Ozone concentration | Flow of Cooling | Rated power | Dimension | weight |
| kg/h | Nm3/h | g/ m3 | water m3/h | Kwh/kgO3 | mm | T | |
| JSO-1000 | 1 | 35-50 | 20-35 | 3-4 | 15-18 | 1900*930*1900 | 1.3 |
| JSO-2000 | 2 | 70-100 | 20-35 | 6-8 | 15-18 | 2400*1800*1900 | 2.1 |
| JSO-3000 | 3 | 105-150 | 20-35 | 9-12 | 15-18 | 2400*2300*1900 | 2.7 |
| JSO-4000 | 4 | 140-200 | 20-35 | 12-16 | 15-18 | 3000*2400*2120 | 3.5 |
| JSO-5000 | 5 | 175-250 | 20-35 | 15-20 | 15-18 | 3000*2500*2120 | 4.6 |
The technical of ozone generator with oxygen source
| Type | Ozone output | Flow | Ozone concentration | Flow of Cooling | Rated power | Dimension | weight |
| kg/h | Nm3/h | g/ m3 | water m3/h | Kwh/kgO3 | mm | T | |
| JSO-1000 | 1 | 10-12 | 80-120 | 1.7-2 | 8-10 | 1400*800*1700 | 0.9 |
| JSO-2000 | 2 | 20-24 | 80-120 | 3.4-4 | 8-10 | 1900*930*1900 | 1.4 |
| JSO-3000 | 3 | 30-36 | 80-120 | 5.4-6 | 8-10 | 1800*1800*1900 | 2 |
| JSO-4000 | 4 | 40-48 | 80-120 | 6.8-8 | 8-10 | 2400*1900*1900 | 2.5 |
| JSO-5000 | 5 | 50-60 | 80-120 | 8.5-10 | 8-10 | 2400*2200*1900 | 2.7 |

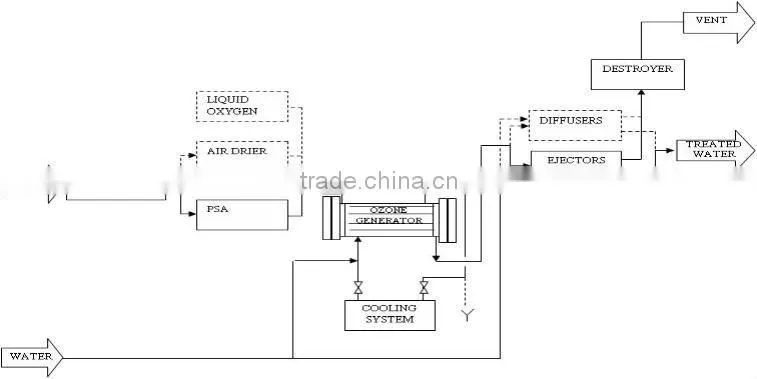

Diagram:
