Home > Products > Welded Wire Mesh Panel Machine > Hebei HTK stainless steel welded wire mesh machine
Hebei HTK stainless steel welded wire mesh machine
- 2 Set / Sets per Month
- XINGANG CHINA
- T/T Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | HTK | Model Number: | DHW-4 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

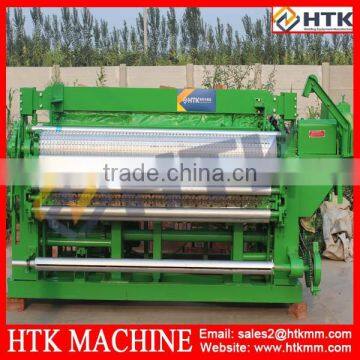

Hebei HTK stainless steel welded wire mesh machine
- PLC system control
- Direct factory
- Solid joints, no burning marks
- Simple and easy to operate
Characters:
- Strong welded points and bright luster .
- The mesh doesnt come loose even if cut in parts or being exerted force on parts .
- Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust
Technical Parameter:
Type Parameters |
| |||
DHW-4 | DHW-5 | DHW-6 | DHW-7 | |
Welding width | 48" | 60" | 72" | 84" |
Hole size | 1/2"-2" | 1/2"-2" | 1"-3" | 1"-4" |
Wire dia | 0.6-1.5mm | 0.6-2.0mm | 1.2-2.5mm | 1.2-2.7mm |
Welding speed | <90times/min | <70times/min | <70times/min | <60times/min |
Power | 65KVA*4 | 70KVA*5 | 75KVS*6 | 75KVA*7 |
Rated voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
Overall dimension | 3450*1600*1300 | 2750*1600*1300 | 4000*1600*1300 | 4300*600*1300 |
NOTE: SPECIAL TYPE CAN BE MADE ACCORDING TO CLIENT’S REQUIREMENT.
Fence Machine | Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine | Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine | Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine | Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine | Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines | grassland mesh machine |
Reinforcing mesh welding machine | |
Wire Nail Making machine | |
Expanded metal machine | |
Wire drawing machine |
After sale service:
- Engineer can install, test and adjust the machine for you
- 24 hours online after-sale service
- We will train workers for you
Our Factory:
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 2 senior engineers,10 senior technicians, more than 100 employees
- Our products: Field Fence and Field Fence Machine, Welded Wire Mesh Machine
- Our certifications: ISO 9001:2000, BV certification
- Our Main Market: South Africa, Mongolia, Asia, Dubai
Advantage of HTK factory:
- We have professional engineer supervision
- The price preferential benefit
- Product quality assurance
- High production efficiency
- With credibility and protection
- Can visit the factory in person
- Good after sales service
- Business model: Factory direct
Contact Us
- Hebei HTK Welding Equipment Manufacture Co., Ltd.
- Contact nameMark Ma
- Phone86-0318-3552766
- AddressShijiazhuang City, Hebei Province, Ping'an Avenue, No. 158, zijing apartments, Block B, 19A06 Shijiazhuang,Hebei
