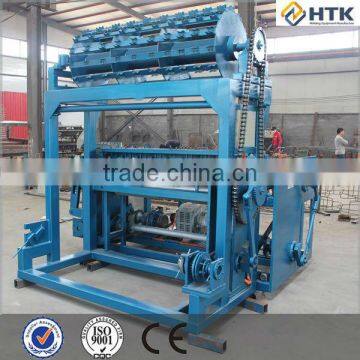

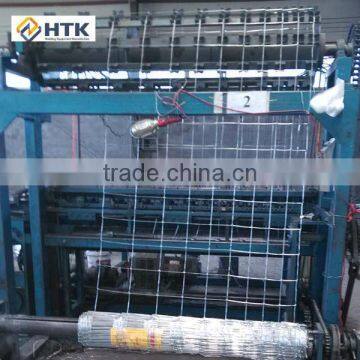

Warping and high quality field fence machine
Specifications of the mesh :
1.Industrial mesh welding machine
2.Welding wire diameter:3.0mm-6.0mm
3.High production capacity
4.Easy to operate
Technical Parameters:
| product specification | CY-A | CY-B |
| power | 5.5kw | 7.5kw |
| speed | 45knock/min | 45knock/min |
| wire diameter | 1.9mm-2.5mm | 1.9mm-2.5mm |
| top diameter | 2.0mm-3.5mm | 2.0mm-3.5mm |
| voltage | 380V-3P-50HZ | 380V-3P-50HZ |
| weight | 3.5T | 3.8T |
| overall dimension(M) | 2.8*3.2*2.4 | 3.3*3.2*2.4 |
Note:special type can be made according to client's reauiment.
Function features:
1.The machine can weave the diameter and weft wire together automatically.It is operated flexibly.
2.Greatly reducing labor cost and increasing the output effectively.
3.Products are neatly,beautifully,firmly and accurately.
4.The welding aperture could be adjusted randomly within the range,diverse specifications can be used in different areas.
Main Usage:
Welding fence meshes for railway, highway, maintain, building meshes for bridge, road and storey and mine supporting meshes.
Product details:
Warping and high quality field fence machine
Packing
1)In Nude,which is the most popular packing ways as it could load bigger quantities,then lower unit price.
2) Plastic Film, uniform and good integration.
3)Wooden Pallet,save time and efforts,more convenient to load and discharge.
Delivery
1)Delivery Time: 25days after the advance payment.
2)We usually choose the most economical and reliable shipping company to make sure you receive the goods in time.
Warping and high quality field fence machine
After-Sales Service
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.Factory Own Designing and Inspection Team.
4.All machines were tested and adjusted before delivery.
5.Engineers avaliable to service machinery overseas: Worker-training, installation.etc.
6.24 hours technical support by e-mail or calling service.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 2 senior engineers,10 senior technicians, more than 100 employees.
Main Products: Hinge Joint Fence,Fixed Knot Fence and Hinge Joint Fence Machine, Fixed Knot Fence Machine,Welded Wire Mesh Machine,Chain link Fence Machine,Barbed Wire Machine etc.
Supply Capacity: Field Fence 40000m/day with 14sets fence machine
Each Machine 10Sets/month
Main Market: South Africa,Asia,South America,North America,Middle East,Europe,etc .
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by ISO,BV.
5)Have our own inspection team to do the quality control.
