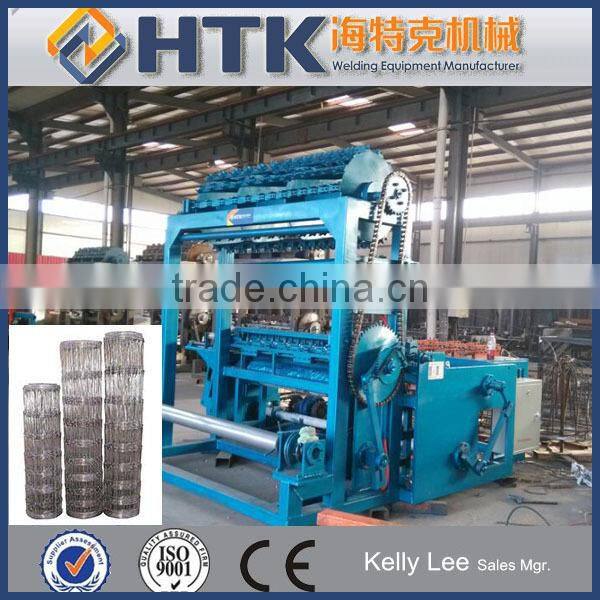

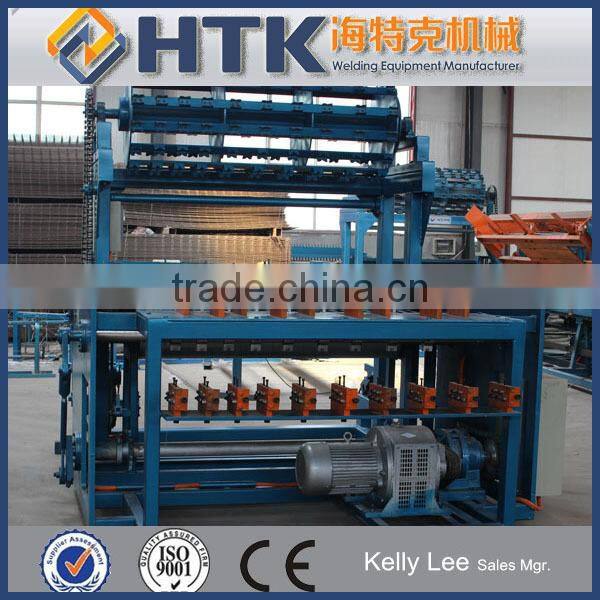

Full Automatic Wild Fence Weaving Machine
1. High degree of automation
2. Operational safety and reliability
3. Easy operation, long life and low prices.
4. Own designing and self-made machine.
5. ISO BV Certificated Factory Direct.
Specifications:
Machines
Items |
CY-A |
CY-B |
CY-C |
Fence Height |
1422mm |
1880mm |
2000mm |
Power |
5.5KW |
7.5KW |
7.5KW |
Speed |
≤45knock/min |
≤45knock/min |
≤45knock/min |
Wire diameter |
1.9-2.5mm |
1.9-2.5mm |
1.9-2.5mm |
Edge diameter |
2.0-3.5mm |
2.0-3.5mm |
2.0-3.5mm |
Voltage |
380V-3P-50HZ |
380V-3P-50HZ |
380V-3P-50HZ |
Weight |
3.5T |
3.8T |
4.0T |
Overall dimension |
2800*3200*2400 |
3300*3200*2400 |
3700*3200*2400 |
Note: Special type can be made according to client's requirement.
The fence:
1 |
7/150/813/50 |
Note: 1.Special type can be made according to customers’requirement.
2.Length could be 50 or 100m/roll.
3.7/150/813/50 Refers to: Horizontal Wire Number:7 Vertical Spacing: 150mm Height: 813mm Length: 50m |
2 |
8/150/813/50 |
|
3 |
8/150/902/50 |
|
4 |
8/150/1016/50 |
|
5 |
8/150/1143/50 |
|
6 |
9/150/991/50 |
|
7 |
9/150/1245/50 |
|
8 |
10/150/1194/50 |
|
9 |
10/150/1334/50 |
|
10 |
11/150/1442/50 |
|
11 |
13/150/1880/50 |
|
12 |
18/150/2000/50 |
|
13 |
21/150/2400/50 |
Guarantee and After-sale Service
1. Warranty: One Year.
2. Enough spare parts of machines could be supplied.
3. All machines were tested and adjusted before delivery.
4. Engineers avaliable to service machinery overseas:Worker-training, installation.etc.
5. 24 hours technical support by e-mail or calling service.
Main machines of HTK factory
Fence Machine |
Full Automatic Hinge Joint Fence Machine |
Full Automatic Fixed Knot Fence Machine | |
Welded wire mesh machine |
Automatic welded wire mesh machine |
Welded wire mesh panel machine | |
Breed aquatics row welded wire mesh machine | |
Numerical control welding fence row machine | |
Barbed wire machine |
Barbed wire machine |
Razor barbed wire machine | |
Diamond mesh machine |
Full Automatic Chain link wire mesh machine |
Hexagonal wire mesh machine/Gabion Mesh machine | |
Crimped wire mesh machine |
Automatic crimped wire mesh machine |
Beautiful grid crimped mesh machine | |
Other machines |
grassland mesh machine |
Reinforcing mesh welding machine | |
| Wire Nail Making machine | |
Expanded metal machine | |
Wire drawing machine |
HEBEI HTK WELDING EQUIPMENT MANUFACTURE CO.,LTD

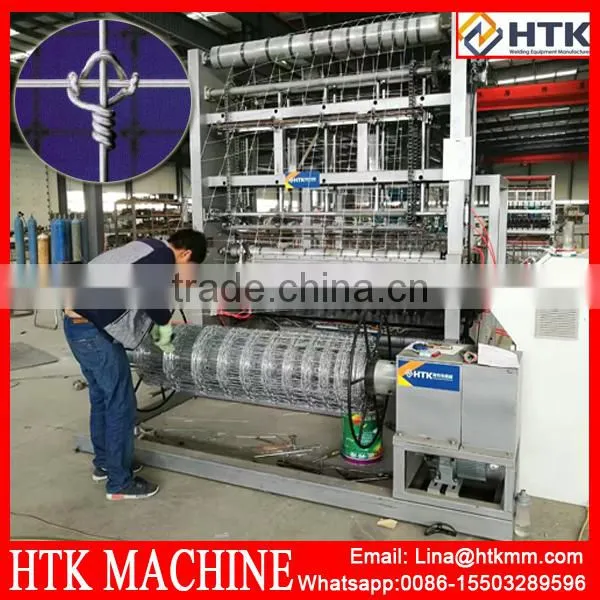

supply CY-type wrap-around Field Fence Machine is developed after many years.
our company has independent intellectual property rights, self-made.
It uses sophisticated computer control, advanced production technology.
1.Machine Voltage: 380V-3P-50HZ
The Voltage could be made as per customers' local required Voltage.
2.Payment: 30%TT in advance and pay off the balance against the copy of B/L.
