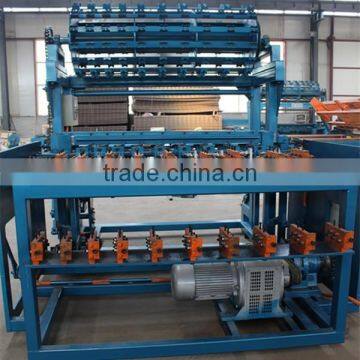

Fixed knot Deer farm fence equipment
Specifications :
1.Industrial mesh welding machine
2.Welding wire diameter:3.0mm-6.0mm
3.High production capacity
4.Easy to operate
Features:
1) It is used to weave wrap-around fence,it can weave the diameter wire and weft wire together automatically.
2) We have spent a lot of time to develop it which has independent intelletual property rights,self-made.
3) It uses sophisticated computer control,advanced production technology.With novelty,high degree of automation,operational safety and reliability,easy operation,long life.
4)The ma chine controlled automatically by NC.
5) All parts work coordinately and smoothly.It is operation flexibly and inexpensive.
Technical Parameter:
| production specification | CY-A | CY-B | CY-C |
| power | 5.5KW | 7.5KW | 7.5KW |
| speed | ≤45knock/min | ≤45knock/min | ≤45knock/min |
| wire diameter | 1.9mm-2.5mm | 1.9mm-2.5mm | 1.9mm-2.5mm |
| top diameter | 2.0mm-3.5mm | 2.0mm-3.5mm | 2.0mm-3.5mm |
| voltage | 380V-3P-50HZ | 380V-3P-50HZ | 380V-3P-50HZ |
| weight | 3.5T | 3.8T | 4.0T |
| overall dimension(M) | 2.8*3.2*2.4 | 3.3*3.2*2.4 | 3.4*3.2*2.4 |
(Note:special type can be made according to client's requiment.)
Application:
Fixed knot fence (field fence ) is mainly used for animal feeding, husbandary, preserving grassland, isolation, etc.
Field Fence Machine
Packing:
1)In Nude,which is the most popular packing ways as it could load bigger quantities,then lower unit price.
2) Plastic Film, uniform and good integration.
3)Wooden Pallet,save time and efforts,more convenient to load and discharge.
Delivery:
Delivery Time: 30days after the advance payment.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 2 senior engineers,10 senior technicians, more than 100 employees.
Main Products: Hinge Joint Fence,Fixed Knot Fence and Hinge Joint Fence Machine, Fixed Knot Fence Machine,Welded Wire Mesh Machine,Chain link Fence Machine,Barbed Wire Machine etc.
Certificate:BV and ISO9001 profession certificate
FAQ
Q: R u manufacture?
A: Yes, we have in this area more than 10 years.
Q: Could u install the machine in our factory ?
A: Yes, we could arrange engineer go to ur factory for installation.
Q: what’s the delivery time ?
A: 5 days after we received the deposit.
Q: If any problem about the machine what should we do ?
A: Any problem of the machine please feel free to contact us, we will Try our best to help u.
Q:what’s the guarantee period.
A: One year.
