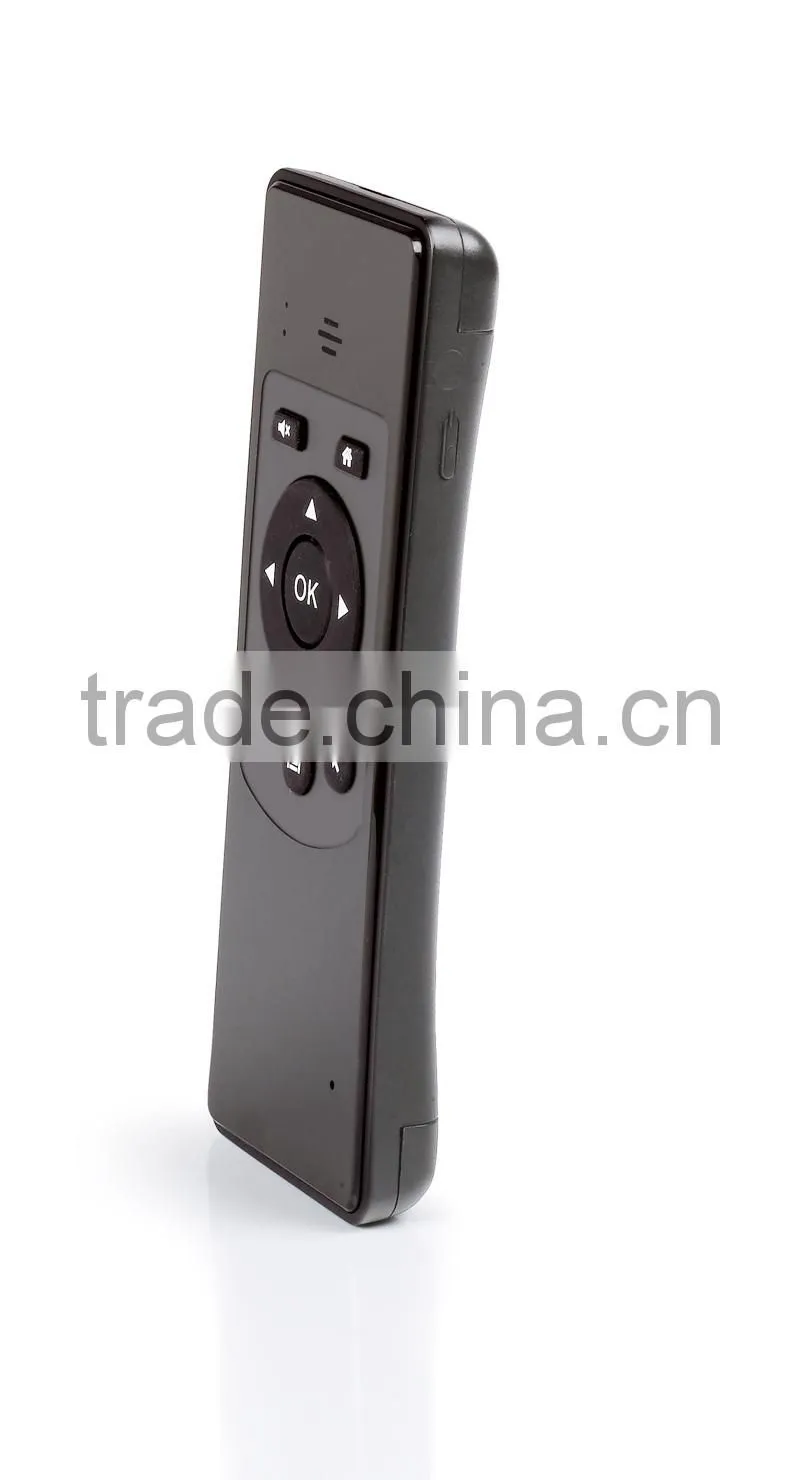

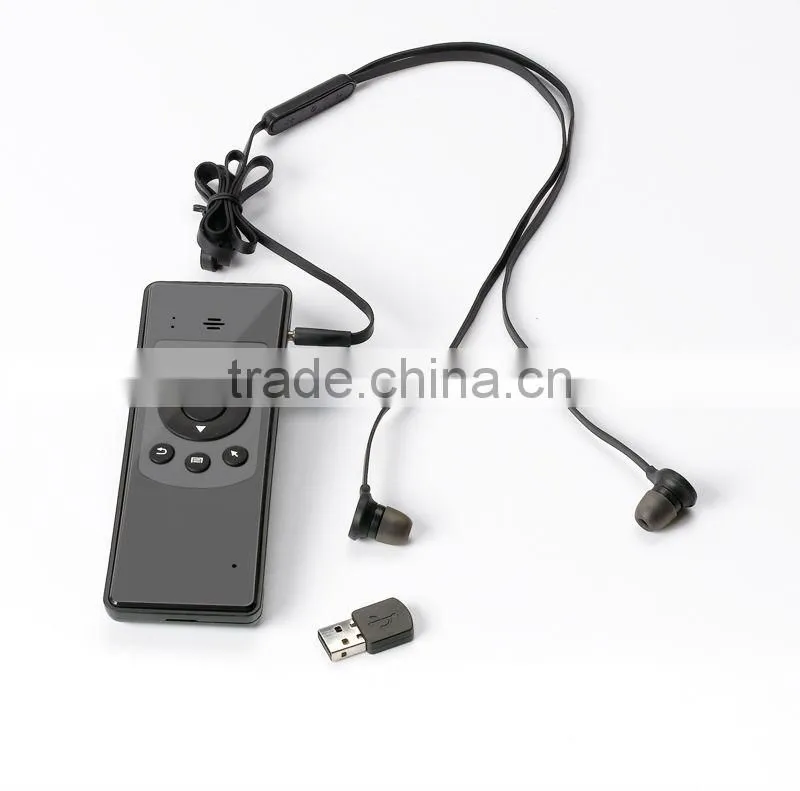

Radio Frequencty Gyroscope Air Mouse Presenter for Google tv Box Air Fly Mouse

Radio Frequencty Gyroscope Air Mouse Presenter for Google tv Box Air Fly Mouse thumbnail-1
Radio Frequencty Gyroscope Air Mouse Presenter for Google tv Box Air Fly Mouse photo-1
US$ 12.28 - 15.28 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop, Laptop, Other, Desktop, Laptop, TV,projector
Type:
2.4Ghz Wireless
Contact Supplier Request Quote Chat Now
USBONLINEDIRECT Communication Co., Ltd. (SHENZHEN)
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Desktop, Laptop, Other, Desktop, Laptop, TV,projector
Type 2.4Ghz Wireless
Interface Type Other, remote
DPI Other, remote 20 m
Tracking Method Other, radio frequency
Style Mini
Hand Orientation Both Hands
Brand Name air fly mouse
Model Number USKM0038
Place of Origin Guangdong, China

Specifications

Gyroscope air mouse presenter for tv box air flay mouse :
1.2 kinds
2.remote 10m
3.for computer,projector,smart tv

Radio frequencty gyroscope air mouse presenter for google tv box air fly mouse

1. Product introduction

Radio frequencty gyroscope air mouse presenter for google tv box air fly mouse

This wireless air mouse is with built-in gyroscope and the world's best gravity acceleration sensor, It can realize the traditional remote control, mouse, keyboard, bidirectional voice, and the function of motion sensing game on android platform.

It could have you released from your computer/TVset-top boxes/projector and other entertainment equipment, only need to flex your wrist



Compared with traditional usb  mouse:

Air mouse Usb mouse
remote static
can be with voicer not
motion sensor not
gros built -in not



Plug and play micro receiver, compatible with USB1.1 and USB2.0;

Product parameters

transport

2.4G Radio frequency hopping technology

Effective distance

10 meters

Function of remote control

Android System keys

The mouse function

6 axis gyro sensor

size

143*52*14.5mm

battery

2 triple A batteries

Standby time

12 months

Working current

The normal  version: work: 12 ma dormancy: 30 ua

Voice version: the mouse: 15 ma, voice: 35 ma dormancy 3 ua

The receiver

USB 2.0

System requirements

Windows, Android, Linux,



2. Product categories

2.1 Normal version(G62A)

Function:

  1. The wireless mouse/keyboard
  2. Contains the function of motion sensing game (The host must also support)

Features:

  1. 6 axis of gyroscope, real-time position calibration of the movement.
  2. Low power consumption: 12 mA (working), 20 uA (hibernation)
  3. The distance: > 20 meters

2.2 Phonetic version(G62C)

Function:

1. Support all the functions of the ordinary version

2.Support voice input and output(mic)


Features:

1.In the movement of six axis of gyroscope, real-time calibration.

2. The recording circuit with the function of automatic gain, can also be clearly recorded in a long distance

3. Output rich voice, especially hitting bass

4. Low power consumption:

  •                 State of the mouse :~15mA
  •                 bidirectional voice :~35mA
  •                 hibernation : ~3uA

Radio frequencty gyroscope air mouse presenter for google tv box air fly mouse

3. The specification of functional key

Both sides of the product, total 3 buttons.

3.2.1 two buttons on the left, respectively "volume +" and "volume -"

3.2.2 one button on the right, we call "customize" button

      [Non-voice version]:shutdown; short time pressing the key enter standby state, long time pressing close the host.

      [Voice version]:Short time pressing switch to audio output mode, pressing 2 seconds is the same as above.

3.3The back

Press "Fn" and the key with orange character simultaneously, you can input the corresponding orange characters .

For example , "Fn" + "Q" input "1"



[ note ] : Except the side buttons. only the button back to the ground is effective.

4. LED Light:

This mouse has a red and a blue LED light. Simply speaking,

The red light blinks constantly :irregular operating.

The blue light is on : normal operating.

 4.1 the Led light problems :

 a) red light flash fast: Disconnected with the wireless receiver.

b) red light flash slow: Low voltage.

c) red light is on continuously:put the handle on the desktop

   horizontally, keep 2-3 seconds until the red light flashes.

d) blue light is on continuously:Some button has being pressed down.

4.2 The normal work

a) Flashing every 5 seconds, but didn't open voice.

b) If blinking faster than a), there are several kinds of state,

   means : record or output voice

[Note]:If there is LED lights in the back of the controller ,the function of

the lights in the back contain all the function of red lights and blue lights,

if the frequency is faster than 1hz ,then there is a problem.

5. The code

Mouse and receiver matched(factory)===>customer===>plug receiver into set-top tv boxes ===>automatic connect===>press key(blue light on)===>work

                          ||

disconnected(wrong operation),red led light will flashing to the receiver

                                            ||

 Solve it :

1.Plug the receiver into the USB socket of set-top box (computer, etc.)

2.switch to the state of keyboard, air mouse close to the receiver within 10 cm,

3.Press about 5 seconds , after the success of the code, press any key , the blue light will be on.

Radio frequencty gyroscope air mouse presenter for google tv box air fly mouse

6. voice

     6.1 The features

      The function of voice input and output is open/closed automatically.

If the host record, the recording of handle will open automatically. if the host closed the tape, then the handle will also close the recording module, meanwhile, if the host's voice switch to the air mouse, it can hear the sound immediately.



     6.2 Channel switching

6.2.1The default mode

Plug the receiver into the host, voice won't been switched to the air mouse side automatically. it can only switch to the air mouse side after pressing the switch key .



6.2.2Switching method



If users need switch voice into the air mouse side, only need press the custom" in the side. Press it again back to the external host.

    6.3 The microphone

6.3.1. It has a built-in microphone circuit with the function of hardware automatic gain, In other words, people's normal voice can be clearly recorded, even in 2-3 meters.

6.3.2Voice version under the normal work, the microphone channel is ready in any time. voice search or recording could be made at any time as long as open the corresponding program on the host .

7. note

In order to avoid the interference from the mouse motion, this product will shut down the mouse function automatically when the keyboard face up. vice versa.

Radio frequencty gyroscope air mouse presenter for google tv box air fly mouse
