Best Selling High Speed VOXLINK 2.0 4*1 4K 60HZ HDMI Switcher EU

I. Introduction

This is a high performance HDMI 4x1 switcher that supports HDTV formats up to 4Kx2K@60Hz and all HDMI 3D TV formats. It can extract HDMI stream audio to separate digital and analog audio output. This product supports HDCP repeater/CEC/ARC functions. Select any of the inputs by front panel button or IR Remote, the corresponding indicator LED on the front panel will be illuminated.

II. Features

<!--[if !supportLists]-->Ø <!--[endif]-->Compliant with HDMI 2.0a, DVI 1.0 standards

<!--[if !supportLists]-->Ø <!--[endif]-->HDCP 2.2 and HDCP 1.4 compliant

<!--[if !supportLists]-->Ø <!--[endif]-->Video formats up to 4Kx2K@60 and all HDMI 3D video formats

<!--[if !supportLists]-->Ø <!--[endif]-->Support PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH

<!--[if !supportLists]-->Ø <!--[endif]-->Digital and analog audio output

<!--[if !supportLists]-->Ø <!--[endif]-->Support smart EDID management(Auto/2.1CH/5.1CH/7.1CH selectable)

<!--[if !supportLists]-->Ø <!--[endif]-->Support input port auto switching or manual switching mode

<!--[if !supportLists]-->Ø <!--[endif]-->Audio Return Channel (ARC) supports

III. Package

<!--[if !supportLists]-->Ø <!--[endif]-->1 x HDMI 4x1 Switcher

<!--[if !supportLists]-->Ø <!--[endif]-->1 x 5V/1A USB Power Adapter

<!--[if !supportLists]-->Ø <!--[endif]-->1 x 5V USB to DC Power Supply cable

<!--[if !supportLists]-->Ø <!--[endif]-->1 x 38KHz IR Rx cable

<!--[if !supportLists]-->Ø <!--[endif]-->1 x Optical convert header (for SPDIF audio output)

<!--[if !supportLists]-->Ø <!--[endif]-->1 x HDMI 4x1 IR Remote

<!--[if !supportLists]-->Ø <!--[endif]-->1 x Operation Manual

IV. Specifications

Frequency Bandwidth18Gbps

Input Ports    4 HDMI Female ports, 1 IR Receive port and 1 RS232 port

Output port    1 HDMI Female port and 1 L/R & Optical port

HDMI Audio Output      PCM2.1/5.1/7.1CH,Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD

ESD Protection      Human Body Model:± 8kV (air-gap discharge)

  ± 4kV (contact discharge)

Dimensions (mm)      180 (D) x 85 (W) x 11.6 (H)

Weight (g)  300

Power Consumption      Max 2.5W

V. Switcher Operation controls and Functions

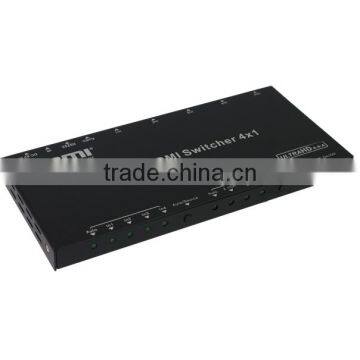

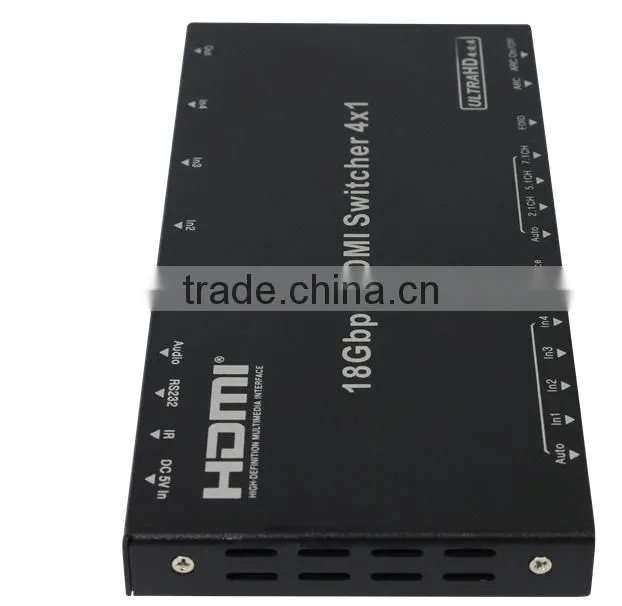

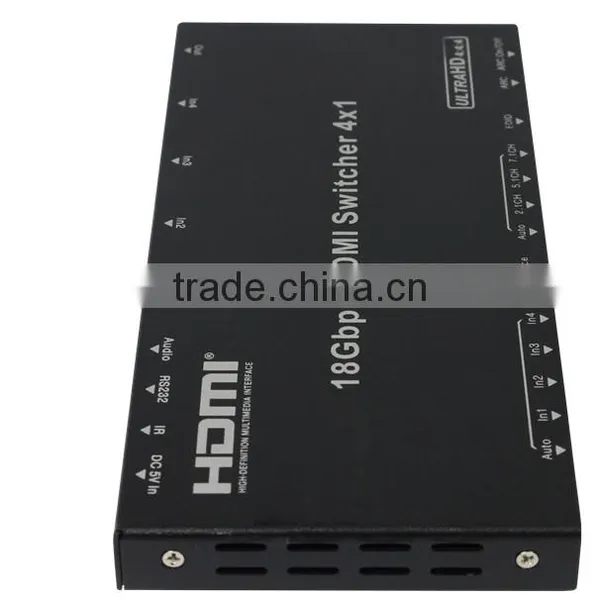

Front Panel:

1.  Input indicator LED, corresponding port LED will be illuminated when its port be selected.

2.  Auto or manual select button:

Press this button >2 seconds to select auto switching or manual switching mode.

Under manual switching mode, short pressing this button to select input port.

3.  EDID status LED (Auto means using TV EDID).

4.  EDID select button (Press this button to select EDID mode Auto/2.1CH/5.1CH/7.1CH)

5.  ARC status LED (this LED will be illuminated if ARC is enabled successfully)

6.  ARC function on/off button

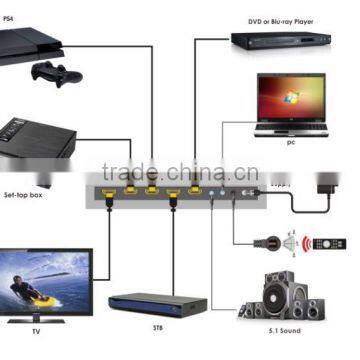

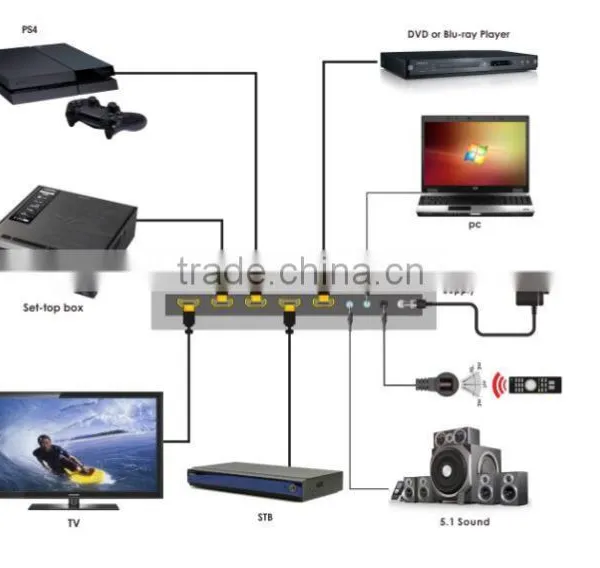

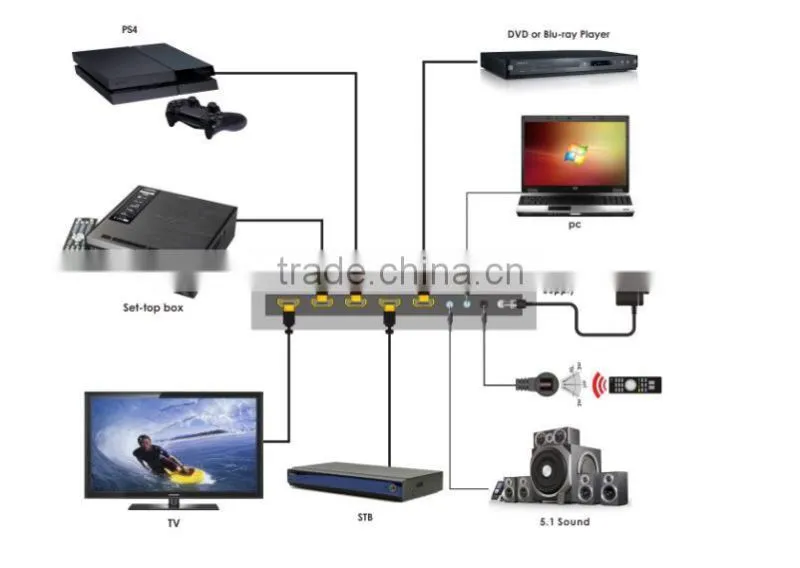

Rear Panel:

1.  HDMI output port, connect with HDTV or monitor by HDMI cable

2. 3. 4. 5.  HDMI input ports, connect with DVD, PS4 or Set-top Box by HDMI cable

6.  Audio output (including L/R analog and optical audio out)

7.  RS232 port   8.  IR receiver port  9.  DC 5V input port

VI. IR Remote

ARC: Press this button to enable or disable ARC function. ARC LED on front panel will be illuminated if ARC function is enabled successfully.

Auto/2.1ch/5.1ch/7.1ch: Press these buttons to select different EDID setting and corresponding LED on front panel will be illuminated.

Auto Source: Press this button to select auto switching or manual switching mode.

In1/In2/In3/In4: Under manual switching mode, press this button to select input port.
