2016 Newest HDMI to USB3.0 Video Capture Dongle HDMI Videos Capture Card

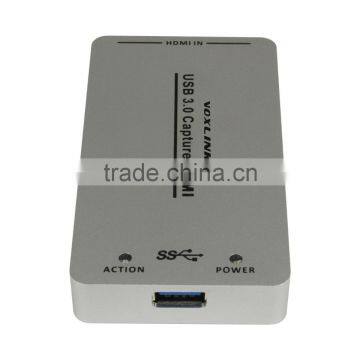

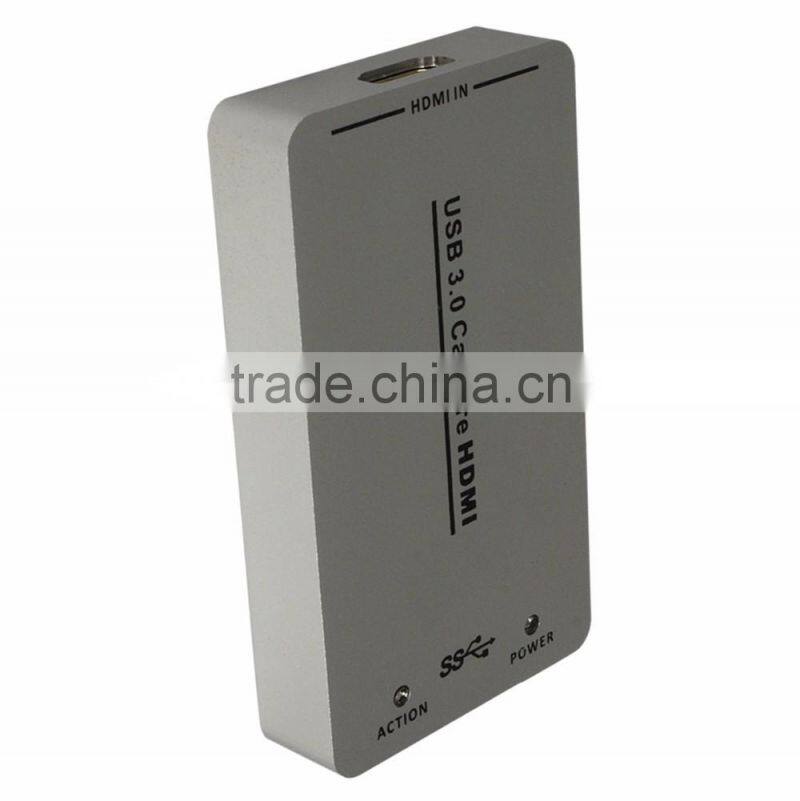

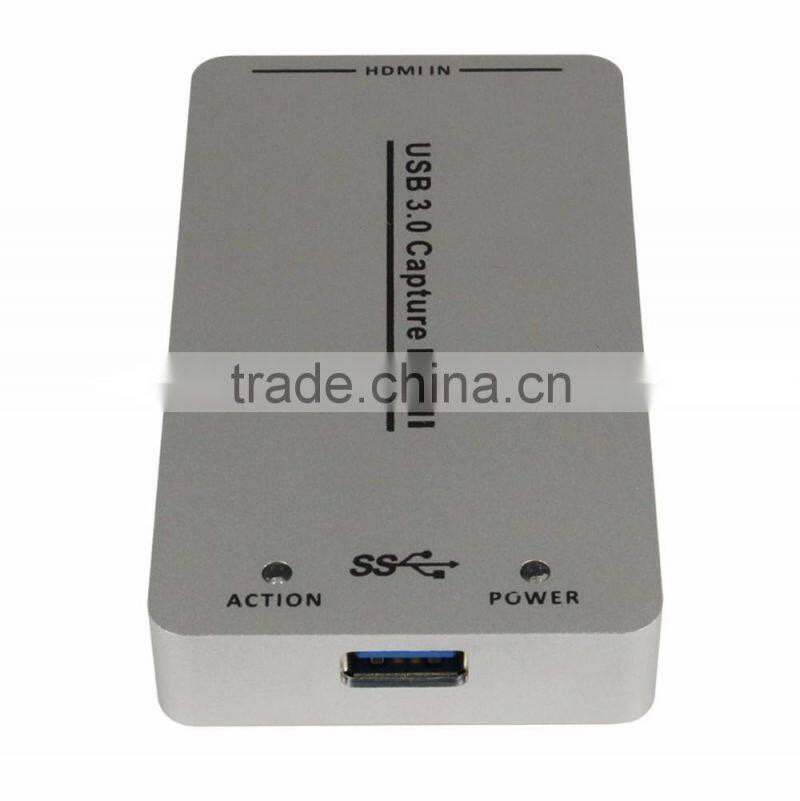

VOXLINK metal case HDMI to USB3.0 hd Video Capture card converter
1. Introduction
HDMI to USB3.0 Video Capture Dongle, it is easy to
c a r r y, h ave a s u p e r i o r p e r fo r m a n c e , s u p e r i o r
compatibility, simple installation and many other
features. It can capture one HDMI 1080p60 input and
output signal; compatible with Windows, Linux, Mac
OS X and USB 3.0 interface, Compatible with many
USB 3.0 chipset (Intel, Renesas,ASMedia, Fresco
Logic), compatible with PCIe Gen1.1 x1 expansion via
USB 3.0interface; The HDMI video capture meets UVC
and UAC standard, without having to install drivers
and settings, the real PnP, easy to use.
User manual
2. Package
HDMI to USB3.0 Video Capture Dongle----------1Pcs
USB3.0 Cable----------------------------------------1Pcs
User manual-----------------------------------------1pcs
3. Feature
It doesn't need to install a driver, and it is truly PnP.
It is compatible with Windows, Linux, OS X operating
systems
USB3.0, 300-350MB/s throughput and it is compatible
with USB 2.0
The process of video and audio is done by the dongle
and will not occupy the CPU.
It can capture one single channel HD HDMI video signals.
It can automatically detect the input video formats
and it will adjust to the set output size and frame
rate automatically.
The input and output video signal can reach 1080p/60 Hz.
It is compatible with UVC video capture and YUV
422 video output.

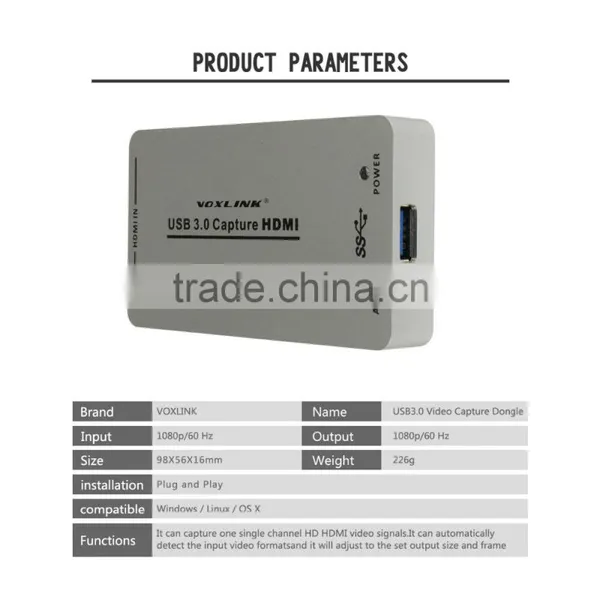

4. Speciication
Host Interface USB3.0, *300-350MB/s,
USB2.0, *40MB/s
Input Interface HDMI interface
HDMI Input Formats: 480i,480p,576i,576p,720p50,
720p60,1080i50,1080i60,
1080p24/25/30/50/60;
Output Formats Resolutions:
640x480/720x480/720x576/
768x576/800x600/1024x768/1280x720/1280x800/
1280x960/1280x1024/1368x768/1440x900/
1600x1200/1680x1050/1920x1080/1920x1200/
640x360/856x480/960x540/1024x576
Frame Rate: 25/29.97/30/50/59.94/60 fps
Audio and video capture standards of UVC and UAC
support of OS Windows 7
Windows Server 2008 R2
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)
Software compatibility Windows Media Encoder (Windows)
Adobe Flash Media Live Encoder (Windows, OS X)
Real Producer Plus (Windows)
VLC (Windows, OS X, Linux)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Wirecast (Windows, OS X)
Potplayer(Windows)and etc.
Development interface compatibility
DirectShow (Windows), DirectSound (Windows),
V4L2 (Linux), ALSA (Linux) OS X (QuickTime)
Size 98x56x16 (L/W/H, mm)
Power consumption <= 2.5W
Working Temperature 0-50 deg C
Storage Temperature -20-70 deg C
Storage Humidity 5%-90%

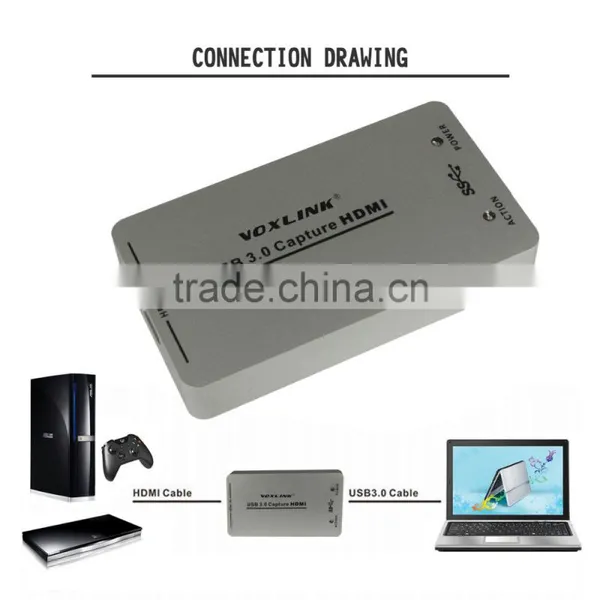

5. Connect and Operate

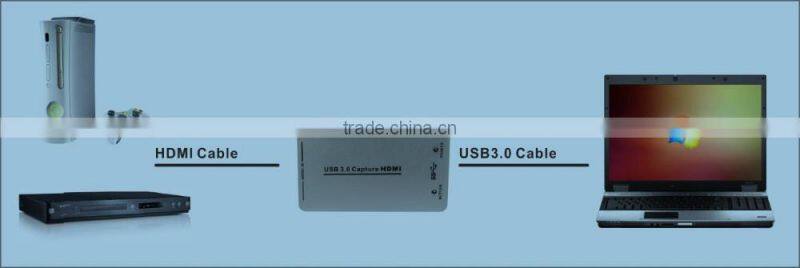

1. Connect the signal sources such as Blu-Ray Player,
Play Station , audio/video receiver, satellite receivers
with HDMI output interfaces with a HDMI cable to the
device HDMI input
2. Insert the USB3.0 cable head to USB3.0 interface,
the other side of the cable into your computer's
USB3.0 interface.
3. HDMI to USB3.0 Video Capture Dongle is based on
UVC (USB video class), UAC(USB audio class)
STANDARD, without having to install drivers and
settings.After installation in operating system, the
relevant video and audio devices will be added on. In
Windows, for example, will have new image device:
USB3.0 Capture video;
USB3.0 Capture audio;

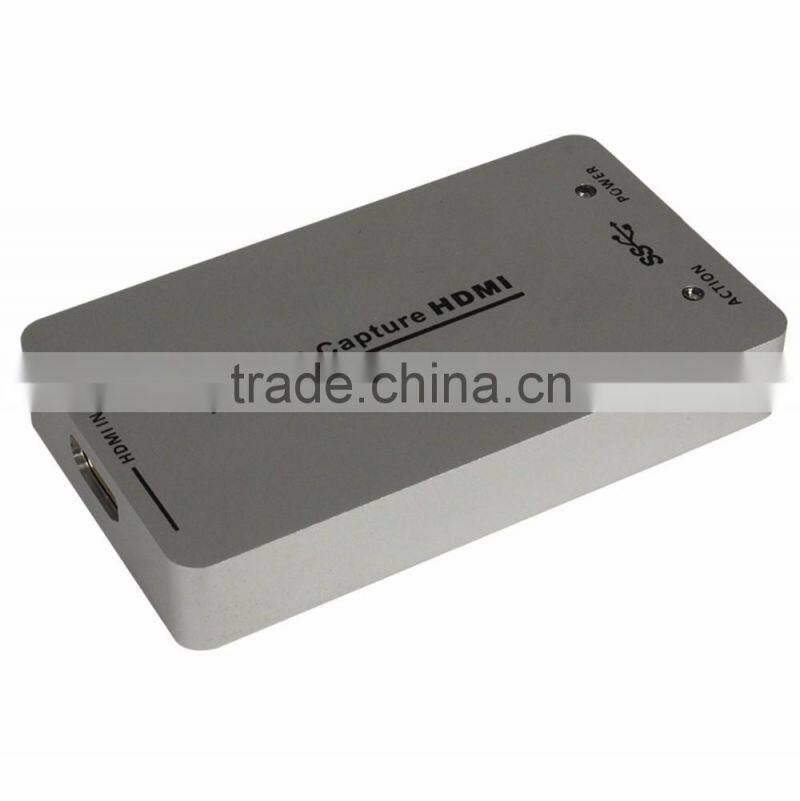

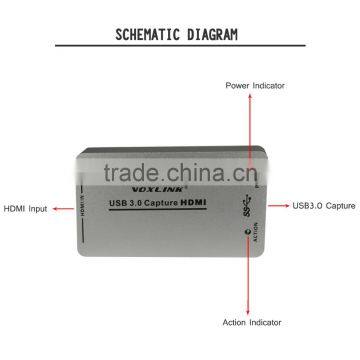

1. HDMI Input: This slot is where you connect the
HDMI source output from DVD, PS3,Set-top Box and
Note Book.

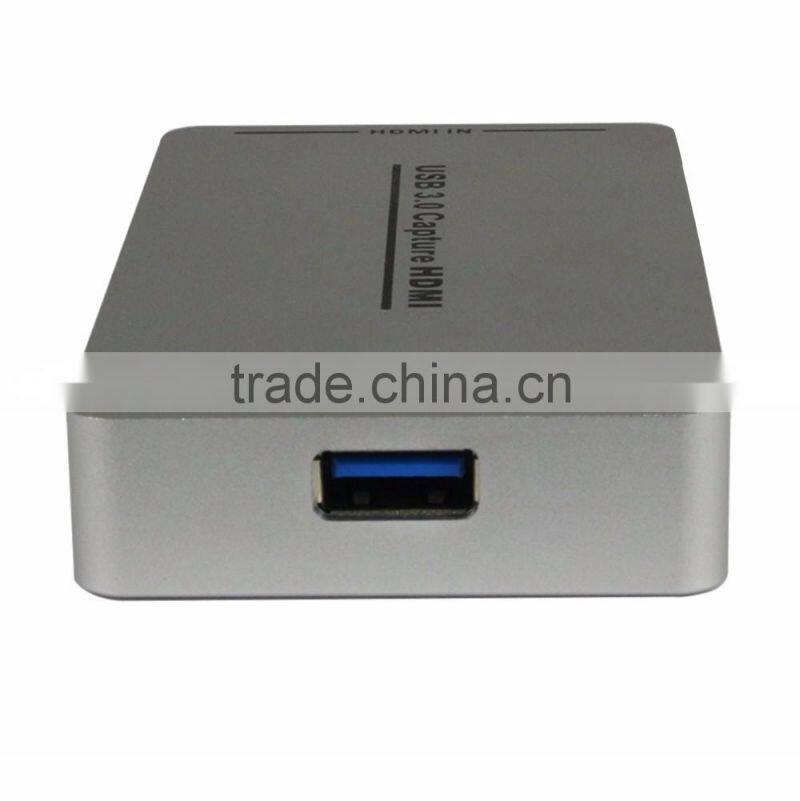

2. USB3.0 Capture out: This slot is where you
connect to the USB3.0 input of the computer or
NoteBook.

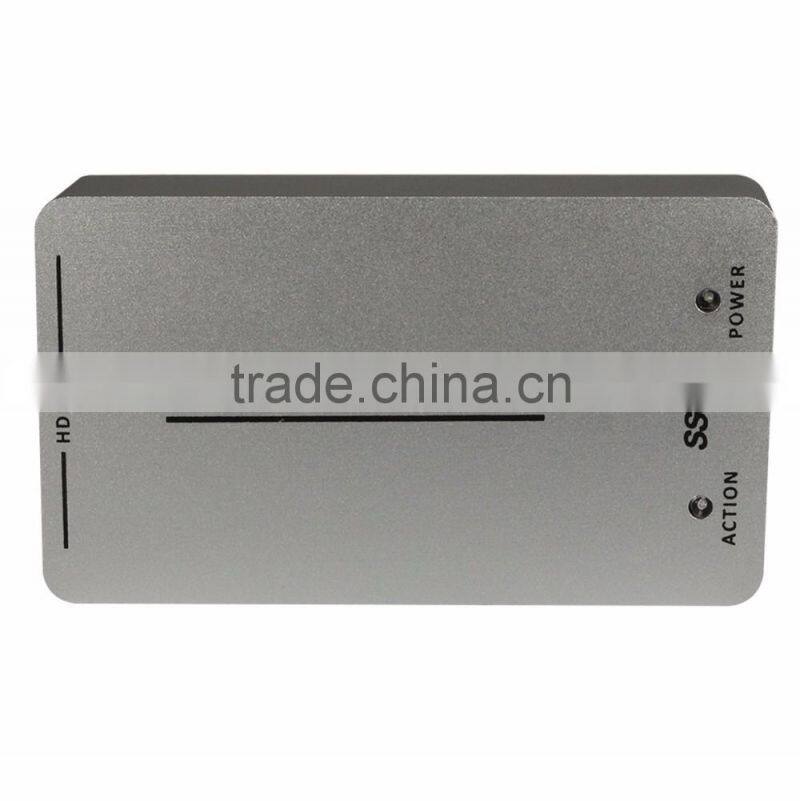

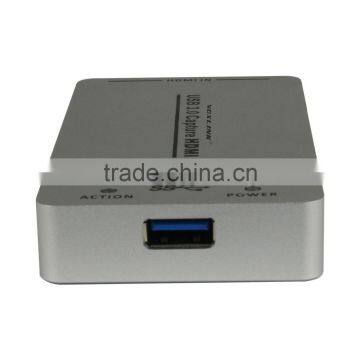

3. Power indicator: This LED illuminates when the
device is connected to computer USB port.
4. Action indicator: This LED illuminates when the
device capture the video normally.
6. Software instruction
For example: Potplayer(windows 7)
1.Install "Potplayer" application software on the
computer;
2.Double click " Daum Potplayer" shortcut to open
the application.

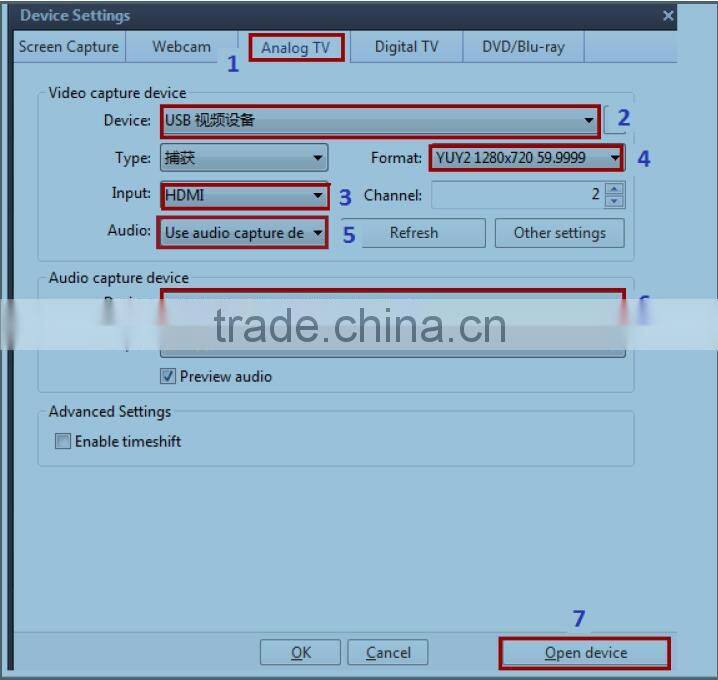

3.Click "Potplayer Open Device settings..." or use
shortcut key"Alt+D" to open the device settings page.
Select "Analog TV" page.
Select "USB3.0 Video Capture" in Video Device item.
Select "HDMI" in Input item.
Select suitable capture resolution in Format item.
Select "USB3.0 Audio Capture" in Audio Device item.
Click "Open device" to open the capture interface.

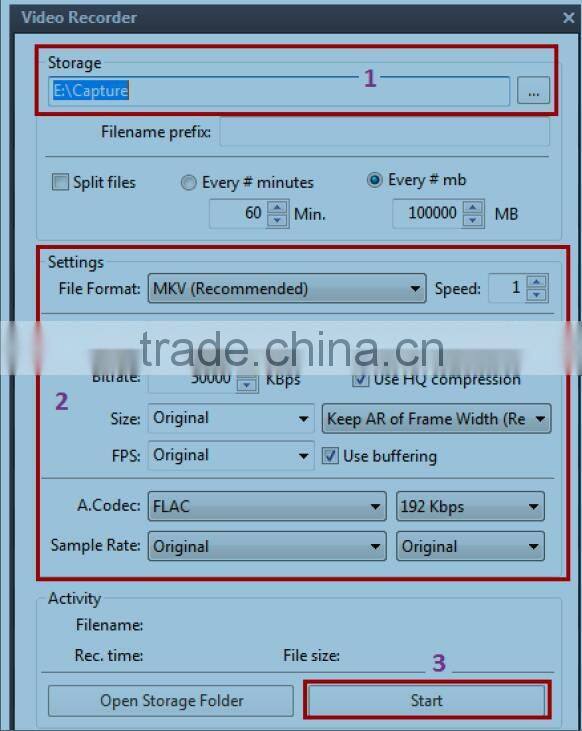

4.Click "Potplayer Video Video recoder" or use
shortcut key"Alt+C" to open the Video recoder page.
Select storage position;
Set video and audio capture setting;
Start to capture video and audio;
Some other newest hot sell HDMI to USB 3.0 vedio capture cards
Model:HDMI0057
Model:COEL0126
Model:USVC0022

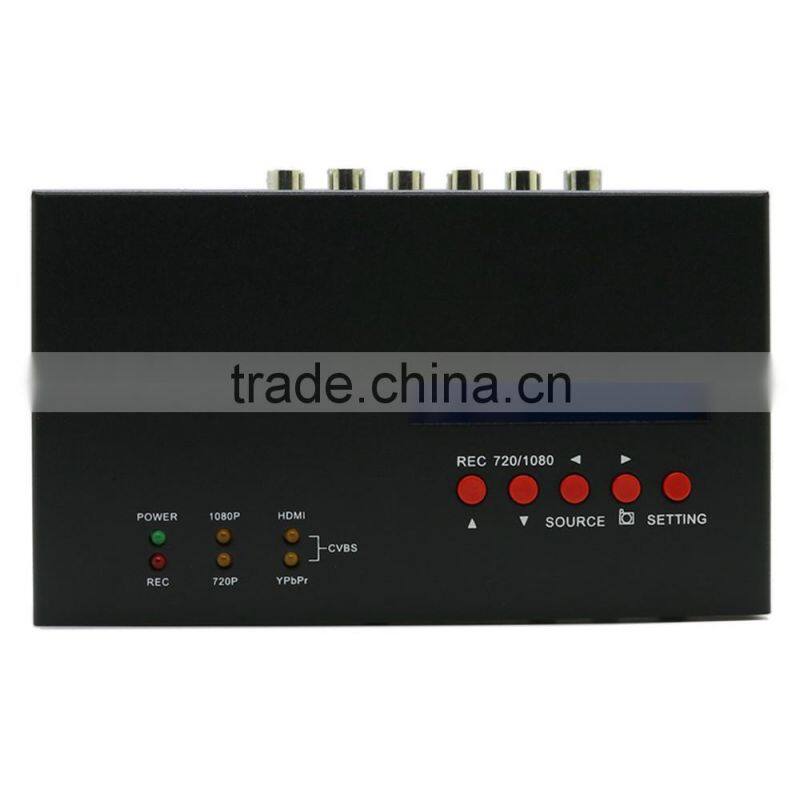

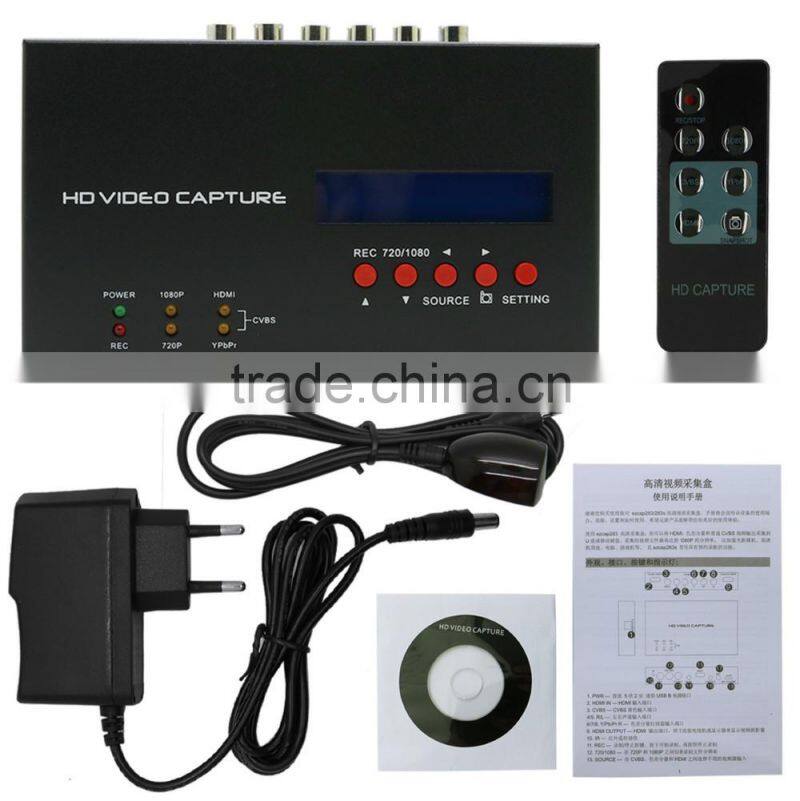

Name:1080p HD video Game capture hdmi recorder with one Click for Camera Gamepla
