Specifications
1. Converts Coaxial or Toslink digital audio signals to analog L/R audio2. Supports sampling rate at 32, 44.1, 48 and 96 KHz.

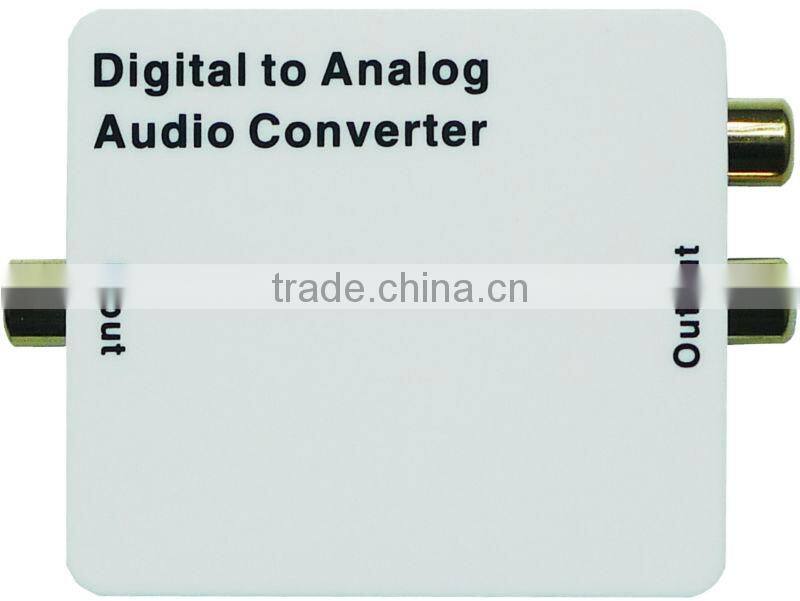

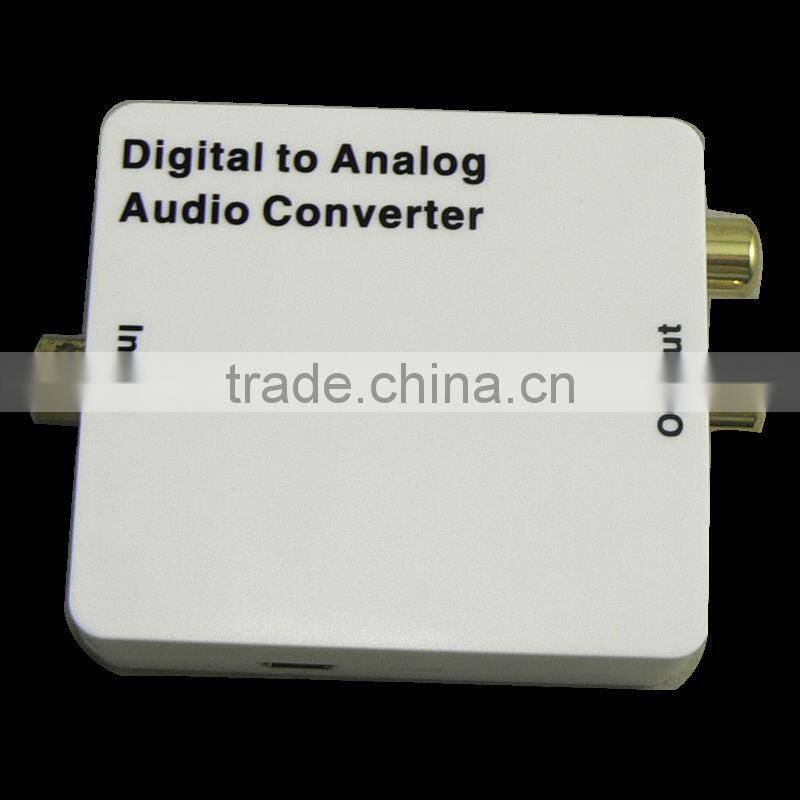

Digital to Analog Audio Converter white
This Converter has many features that enable it to perform in a superior manner. Among those features you will find:
1. Converts Coaxial or Toslink digital audio signals to analog L/R audio
2. Supports sampling rate at 32, 44.1, 48 and 96 KHz.
3. 24-bit SPDIF incoming bit stream on left and right channels
4. Provides electromagnetic-noise-free transmission.
5. Easy to install and simple to operate.
Signal Inputs/Output |
|
Input Audio |
Coaxial or Toslink digital audio |
Output Audio |
L/R audio and 3.5mm |
Connector |
|
Input audio connector |
Toslink,1XRCA(Coaxial) |
Output audio connector |
2XRCA(R/L)+ Headphone |
Sampling rate |
32, 44.1, 48 and 96 KHz |
Size(L-W-H) |
55X60X2MM |
Weight (Net) |
78g |
Power Requirement |
|
External Power Supply |
5V DC@1A |
Power Consumption |
0.5 watts (max) |
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1).Main unit (Digital to Analog Audio Converter).
2). DC 5V Power Supply
3) User’s Manual.

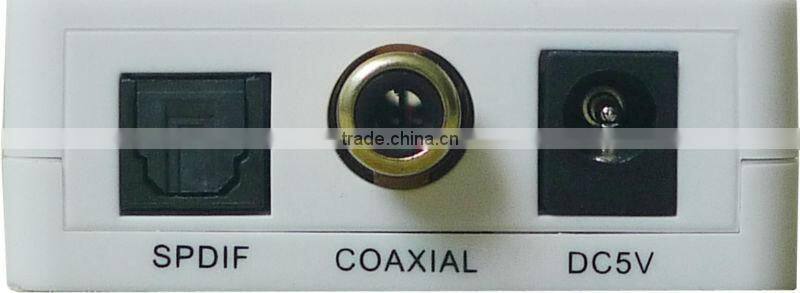

4.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal input(s);output(s) and power requirements.
5.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have been turned off.
1) Connect the audio source device to the Converter using appropriate Toslink or Coaxial cables.
2) Connect the A/V Receivers or Amplifiers to the Converter using appropriate L/R cable.
3) Insert the DC side of 5v power supply into the converter and then connect the AC side of the power supply into the wall outlet.
Note: When connected to the Toslink and Coaxial cables at the same, the product will give priority to Toslink input
Package Accessories:
- 1x Audio Digital-to-Analog Converter (DAC)
- 1x AC adapter
- Product accessories:
-
