PVC Coated Hot Dipped Galvanized Gabion Box/Gabion Mesh
1. Descriptions of gabion box

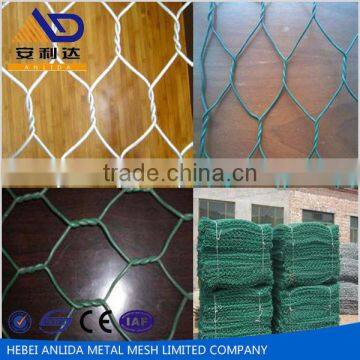

Gabion Box is wire containers made of hexagonal wire netting. Which is woven into double or multiple twisted hex meshes by theanti-corrosion, anti-wear and high tensile strength heavily galvanized wire, or PVC coated wire .Wire diameter varies with the hexagonal nettings.
For Galvanized Gabion Box, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated Gabion Box , the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
Gabion Box is flexible, permeable and integrity structure, filling the stones into it
Gabion Box is used for Security protection, resistance suddenly burst attacks , Nature Flood control barrier etc.
2. Material
Gabion box is also called big specification hexagonal box or gabion box, it is made from high grade steel wire through twisting and braiding by machine.It can be mainly used in supporting and protecting of side slope and basis pit, mountain rock hanging mesh, green guard rail netting on side slope, railway guard rail netting, highway guard rail netting. Gabion box also can be worked into stone cage or stone cushion, and used in reservoir, river or dyke for closure.
3.Common Specifications
| size | notes | The tolerance | |||
| Length(m) | Width(m) | Heigth(m) | diaphragm(unit) | volume(m3) | |
| 2 | 1 | 0.3 | 1 | 0.6 | length±3% width±5% height±5% |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | |
| 2 | 1 | 0.5 | 1 | 1 | |
| 3 | 1 | 0.5 | 2 | 1.5 | |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 1 | 0 | 1 | |
| 1.5 | 1 | 1 | 0 | 1.5 | |
| 2 | 1 | 1 | 1 | 2 | |
| 3 | 1 | 1 | 2 | 3 | |
| 4 | 1 | 1 | 3 | 4 | |
4.Features of Products
(1).It is very economical . You just need to put stone in the mesh and then seal it.
(2).It is flexible,corrosion resistant and can stand up to extreme weather.
(3).Simple construction,requiring no special technique.
(4).The silt between the wire mesh and stone contributes to plant growth.this makes the gabion wire mesh harmonious with the surrounding natural environment .

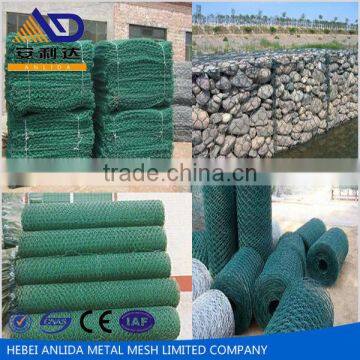

(5).The gabion box is folding and can be assembled site,which saves on transport cost.
5.Packing&Shipping
6.Application of Products
(1).Gabion box is used for slope and foundation pit support.
(2).Prevention or rock breaking ,slope planting.
(3).Water and soil protection.
(4).High mesh fence,protection of dam and seawall against erosion.etc.
7.Certifications of Product
8. Advantages
2. Strong and reliable security
3. Simple structure, Attractive appearance
4. Easy installation, Convenient transport
Anlida is one of the biggest mesh product supplier in Anping city, where is also the most important manufcturing and distributing center in China for Mesh products.
