Specifications
Material: Low-carbon Iron WireAperture: 3/8'' - 4''
Diameter: 0.3mm-4.0mm
Width: 0.5m-2.0m
Gabion Box
Gabion Boxes are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For Galvanized Gabion Box, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated Gabion Box , the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
Material: Low-carbon iron wire
Hole Shape: Hexagonal
Finish: Galvanized Gabion Box;
PVC coated Gabion Box
Aperture: 3/8'' to 4''
Gauge: BWG12 - BWG30
Wire diameter: 0.3mm-4.0mm
Width: 0.5m-2.0m
Length: 30 or 50m /roll
Weaving: Normal twist ; Normal and Reverse twist
1) Normal twist
2) Normal and Reverse twist
Applications:
1) Structural purposes , Heat insulation
2) Pipe wrapping(petrolium) ,Isolation purposes ,
3) Indicator & protection for underground cables and pipes ,Windows Protection
4) Light fencing applications ,Fishing ,Poultry farms ,Sugar industry
5) Rubber industry , rockwool blanket industry.
6) Poultry & animal housing, Crop protection. Fruit cages, Garden Protection,Rabbit Control,
Stucco in construction, reinforcement in road.
Features:
1) corrosion- resistant, rust-resistant.
2) oxidation –resistant, good tensile strength.
3) uniform mesh size, flat and even mesh surface, weave tightly.
4) galvanized /pvc coated for longer life, low costs
5) easy to handle and cut.
Specification
Gabion Box | |||||
| mesh | Min. Gal.v. G/SQ.M |
Width | Wire Gauge (Diameter) BWG |
||
| Inch |
mm | Tolerance(mm) | |||
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
Pictures of Gabion Box
Process of manufacture

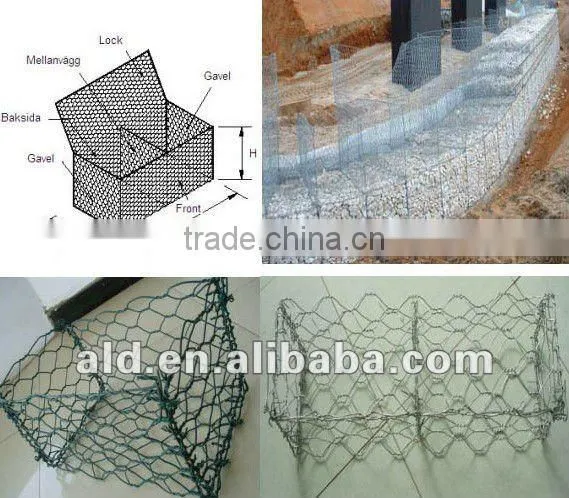

Process of fixing Gabion Box

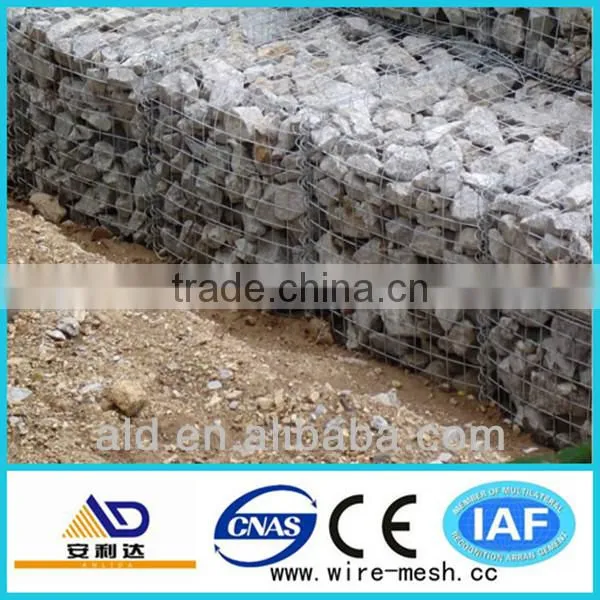

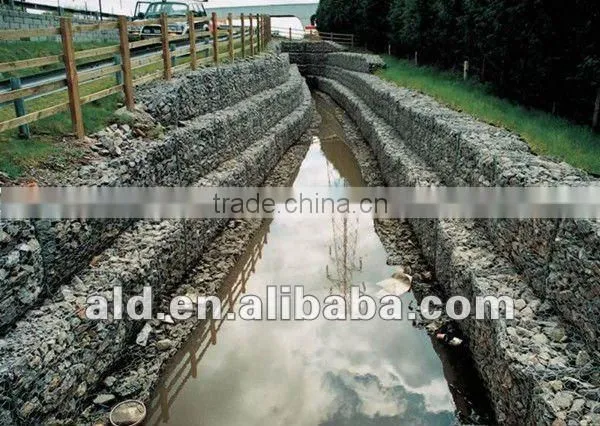

Usage: Gabion Box is mainly used in slope protect , Control and guide of water or flood , Preventing of rock breaking, Protection engineering of seaside area,ect.
