Specifications
razor wire fencewire diameter:2.5mm
thickness:0.5mm
BTO-22 CBT-65
special designed

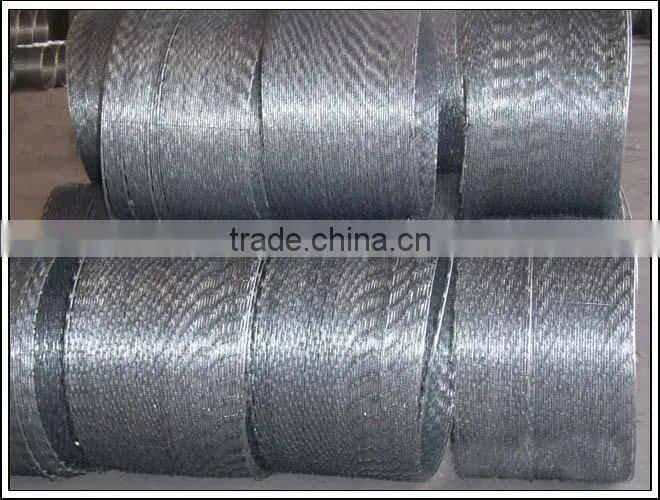

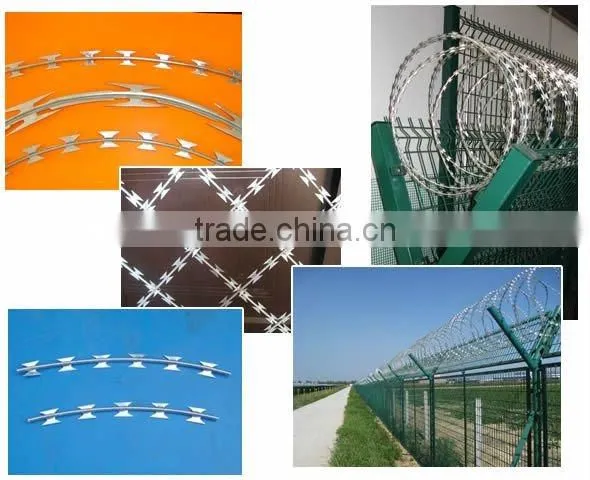

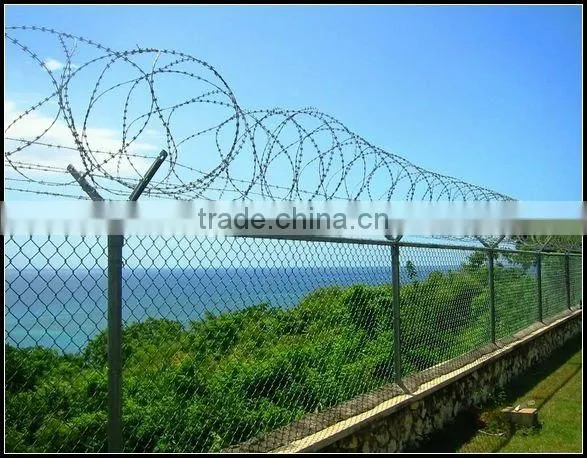

razor wire flat wrap fence
1. Material of razor wire flat wrap fence:
high carbon steel, galvanized steel sheet and wire, stainless steel sheet and wire
2. Surface treatment of razor wire flat wrap fence:galvanized, PVC coated.
3. Specification of razor wire flat wrap fence:Wire diameter: 2.0-2.5mm
Barbed distance: 26-100mm
Barbed length: 10-65mm

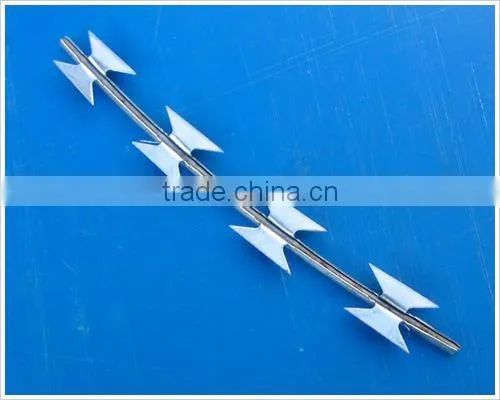

4. Razor blade specification
|
Reference Number |
Thickness (mm) |
Wire Diameter (mm) |
Barbed Length (mm) |
Barbed Width (mm) |
Barbed Spacing (mm) |
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
5. Razor type wire specification
|
Outside Diameter |
No of Loop |
Standard length Per coil |
Type |
Note |
450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
450mm |
56 |
8-9M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
10-11M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |

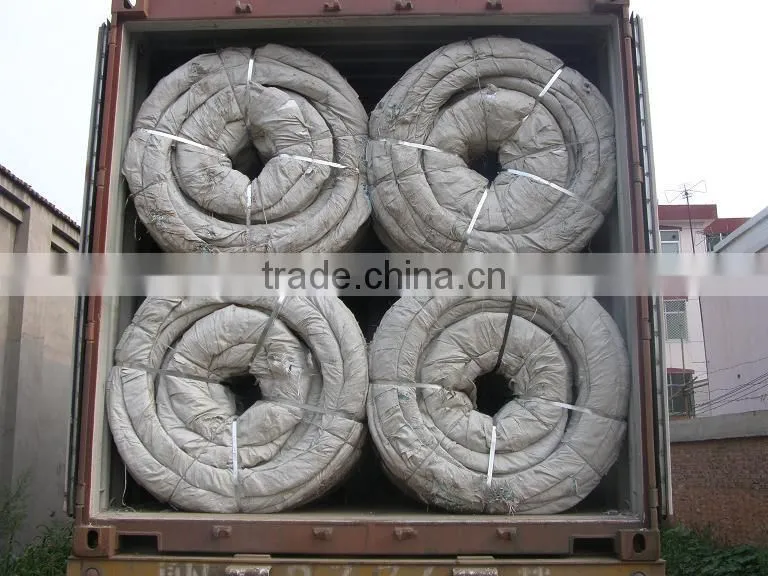

6. Packing detail of razor wire flat wrap fence:
Inside is waterproof paper, outside is woven bag.
