Specifications
1.Retractable Helical razor barbed wire2.wire daimeter:2.5mm
3.thickness:0.5mm
4.length:7-16m
5.BT0-10,12,18,22,28,30 CBT-6

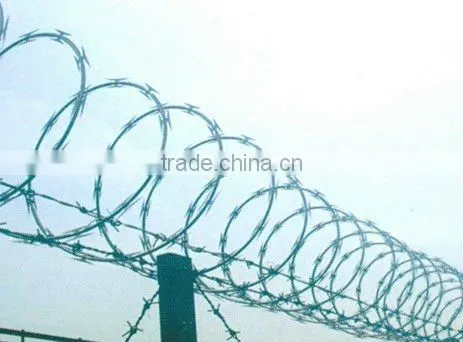

Razor barbed wire mesh is a new kind of protective fencing with such adantage as beautiful appearance ,economical cost and practicality ,and convenient construction .it plays a important role in protection in mine ,gardens and apartments ,frontier and sentry defence ,and ancloser of prision.

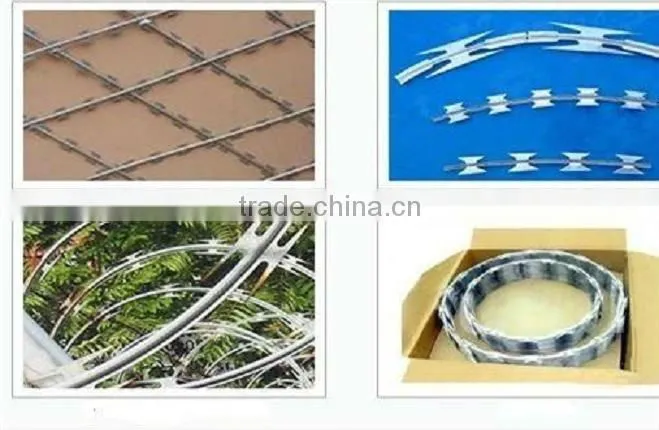

Razor wire has bright and beautiful blade of various types. Galvanized razor wire can be supplied in straight line razor wire ,single coil razor wire or crossed coil razor wire.
Material: hot-dipped galva nized/stainless steel sheet, galvanized/stainless steel wires!
Usage: razor barbed wire can be installed on farm, building and other fields. it is mainly serves in protecting of grass boundary, railway, highway, houses. etc.
Razor wire specification |
|
outside diameter |
No of loops | standard length per coil | type | notes |
| 450mm | 33 | 7-8m | CBT-60,65 | single coil |
500mm |
56 | 12-13m | CBT-60,65 | single coil |
| 700mm | 56 | 13-14m | CBT-60,65 | single coil |
| 960mm | 56 | 14-15m | CBT-60,65 | single coil |
| 450mm | 56 | 8-10m(3 clips) | BTO-10,12,18,22,28,30 | cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10,12,18,22,28,30 | cross type |
600mm |
56 | 10-11m(3 clips) | BTO-10,12,18,22,28,30 | cross type |
| 600mm | 56 | 8-10m(5clips) | BTO-10,12,18,22,28,30 | cross type |
| 700mm | 56 | 10-12m(5clips) | BTO-10,12,18,22,28,30 | cross type |
| 800mm | 56 | 11-13m(5clips) | BTO-10,12,18,22,28,30 | cross type |
| 900mm | 56 | 13-15m(5clips) | BTO-10,12,18,22,28,30 | cross type |
| 960mm | 56 | 13-15m(5clips) | BTO-10,12,18,22,28,30 | cross type |
| 980mm | 56 | 13-16m(5clips) | BTO-10,12,18,22,28,30 | cross type |
The length and the diameter of the coil can be designed according to the customer's need .
Razor blade specificatiom |
|
Referance Number |
Thickness(mm) | Wire Dia(mm) | Barb Length(mm) | Barb Width(mm) | Barb Space(mm) |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±.1 | 12±1 | 13±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 37±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 42±1 |
| BTO-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| BTO-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
