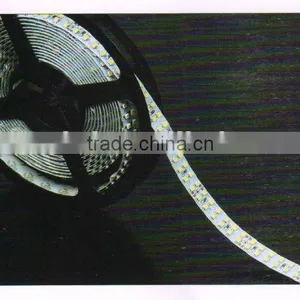

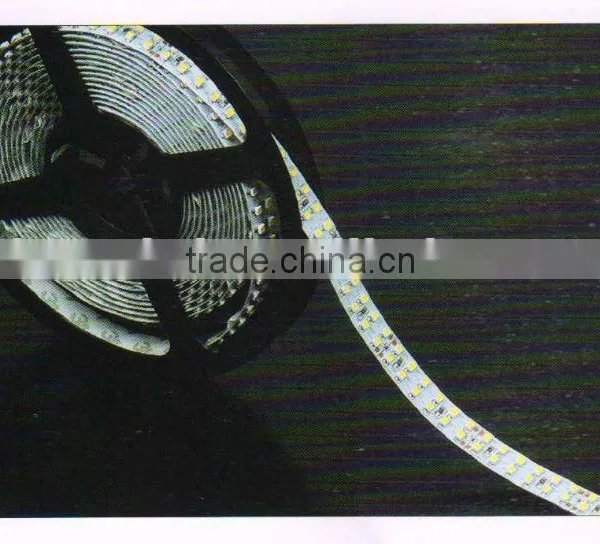

LED Strip Light SMD3528 12V 240P

Specifications

1.SMD3528;
2.Energy saving;
3.Good quality and competitive price;
4. Warranty: 2years;
5. Long working lifespan:>50.000hour

1.3LED cuttable with the mark;

2. Operating temperature:-20°- 50°

3.Match power supplier system;

4. Low power consumption;

5. Lower heating during operation;

6. Continuous length with the quickly connector;

7. Reel peaking and strong adhesive back

8.Available in full range of single color,white, warm white,red,blue,green,yellow,RGB;

9.Non-waterproof and waterproof available

10.Easy to install by the 3m tape on the PCB back;

11.Low power consumption, high intensity and stability;

12.Unique circuit design with strong resistance;

13. Against static electricity ensures the stability of the strips for long lifespan guaranteed.



Series 7  3528 flexible LED strip-240 LED/m
	Description

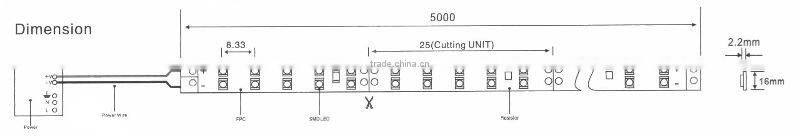

Item no:	Color	View Angel	Light Flux	Input Voltage	Power	Protection Method	Protection Grade	Dimension     (mm)
Strip3528/240/R	Red	120°	840Lm	DC12/DC24	19.2W	NK	IP33	5000*16
Strip3528/240/G	Green	120°	840Lm	DC12/DC24	19.2W	NK	IP33	5000*16
Strip3528/240/B	Blue	120°	840Lm	DC12/DC24	19.2W	NK	IP33	5000*16
Strip3528/240/Y	Yellow	120°	840Lm	DC12/DC24	19.2W	NK	IP33	5000*16
Strip3528/240/W	White	120°	840Lm	DC12/DC24	19.2W	NK	IP33	5000*16
Strip3528/240/WW	Warm White	120°	840Lm	DC12/DC24	19.2W	NK	IP33	5000*16



Application:

1.Building decoration;

2. Car decoration;

3.Amusement park and theater lighting;

4.Emergency hallway lighting;

5.Shopping mall/restaurant/hotal/meeting room;

6.Iluminated signs;

7.Edge lighting;

8.Path and contour marketing;

9. Cove lighting

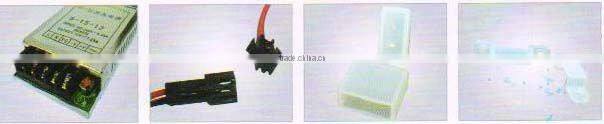

Led Strip light fittings:

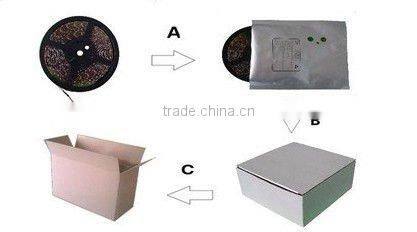

Packing:

1.One reel to a Anti-Static bag;

2.20 bags to a carton

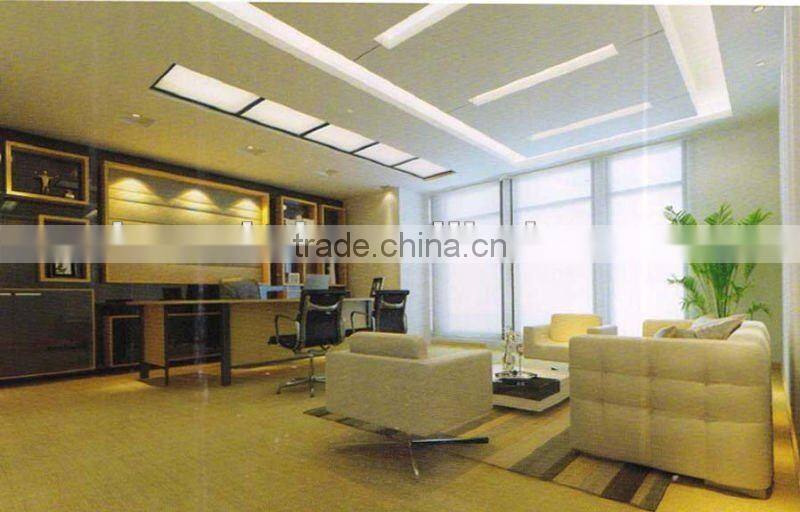

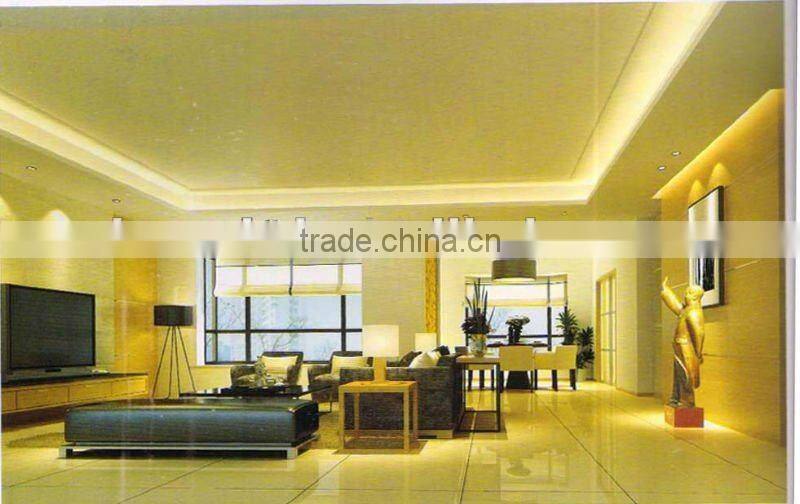

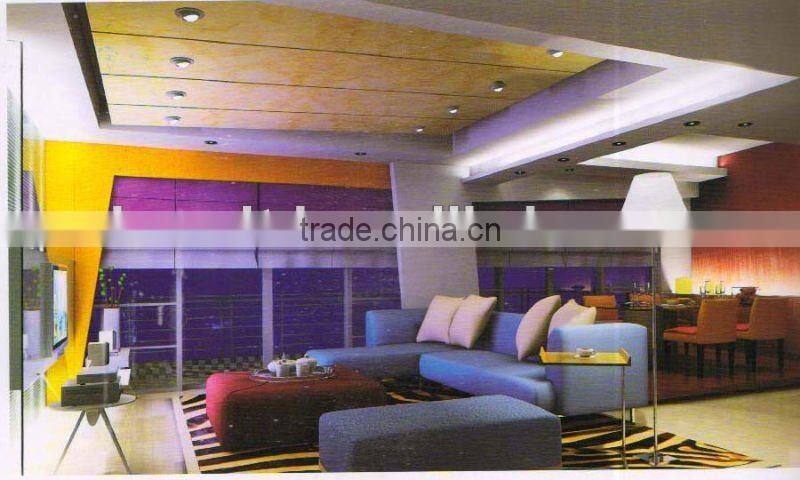

Application projects:
