Air Showers and Tunnels

Air Showers and Tunnels thumbnail-1
Air Showers and Tunnels thumbnail-2
Air Showers and Tunnels photo-1
Air Showers and Tunnels photo-2
US$ 1,000 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
JTC
Contact Supplier Request Quote Chat Now
JTC Spraying System (Dongguan) Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name JTC
Voltage 380V
Power(W) 1100W
Dimension(L*W*H) 2000Wx2000Lx2200H
Weight 360kg-1300kg
Certification ISO9001-2008
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

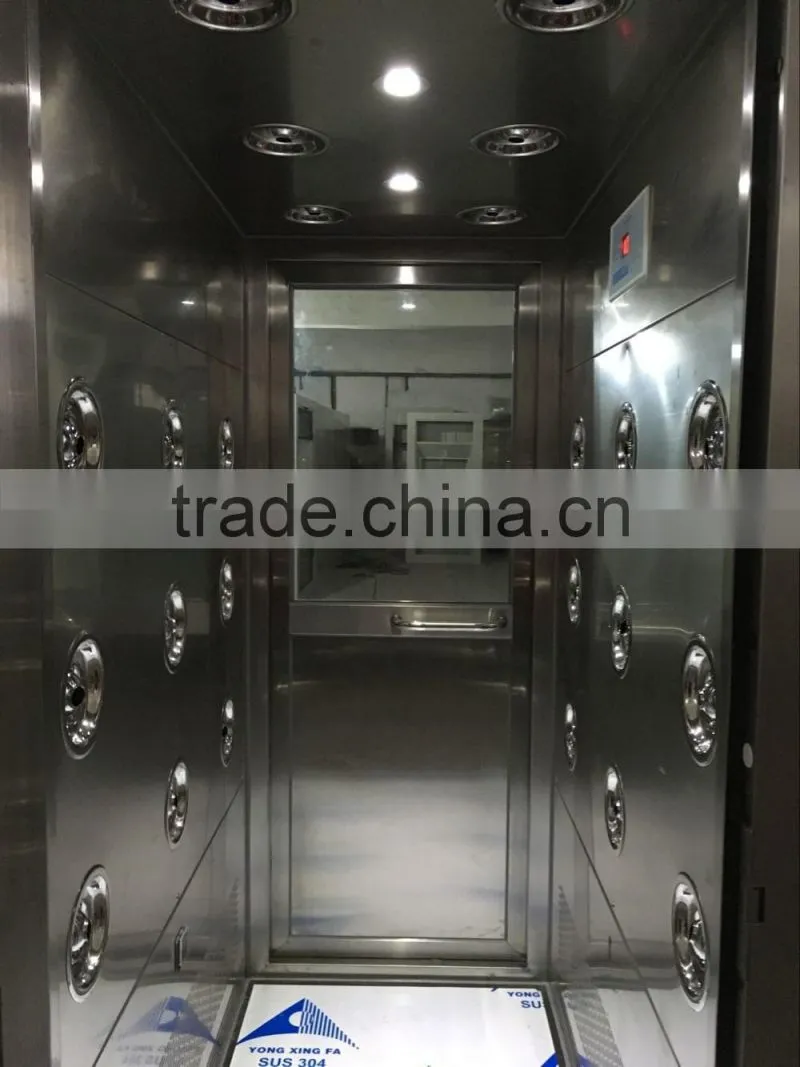

Air Shower Cleaning Room Instruction

Product description:
Air shower is mainly composed of cabinet, fans, filters, nozzle, electric control system of five parts. Box body is made by 1.2mm cold plate coating with stainless steel based. Automatic air shower room adopts photoelectric control, electric interlock, automatic blow. Air shower time is adjustable, compact structure, easy to use.
the operator is maximum dust source in working space , Air shower room, a purifying equipment being able to clean the dust adhering to the surface of human body and articles, preventing the unclean air invade into the clean room. To meet the cleanliness requirement of clean room with the help of air-conditioning system in the clean room.

Technical specification

model In Out Entrance & Exit
External Size(mm) 2000Wx2000Lx2200H
internal Size:(mm) 1500W*1400L*1945H
Nozzle quantity(pcs) 32pcs
Nozzle blowing wind speed(m/s) 25
Shower time(S) 10-99S(adjustable)
Fan Power(W) 1100W*4
LED light power(W) 18w*4
Power 380V  50HZ

Led lamp:(embedded) 18Wx4pcs

Fan: 1100W 4pcs, Power: 380V 50H   qty:4pcs
nozzle:stainless steel ,orifice diameter:30mm,qty:32pcs
Air Showers and TunnelsAir Showers and Tunnels

  Standard size and Specification:

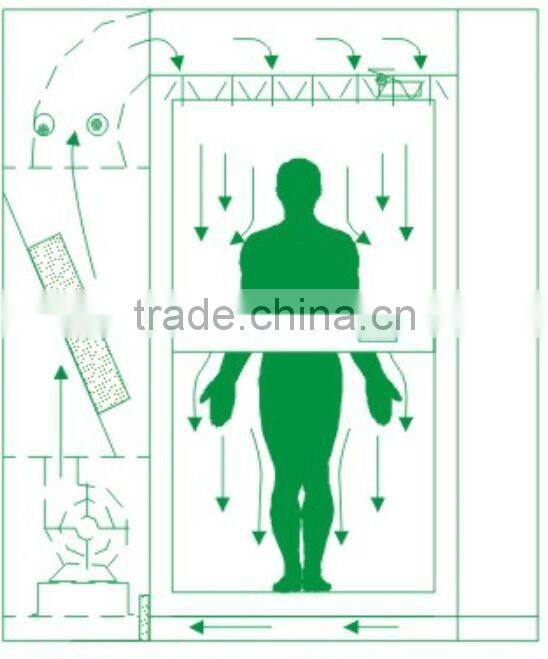

NEW GENERATION AIR SHOWER ROOM

blowing from Top to bottom

bring peron dust out

keep clear mostly



Old air shower room Non-direcrtion blowing cause air eddy ,then make secondary dust

can not clear mostly

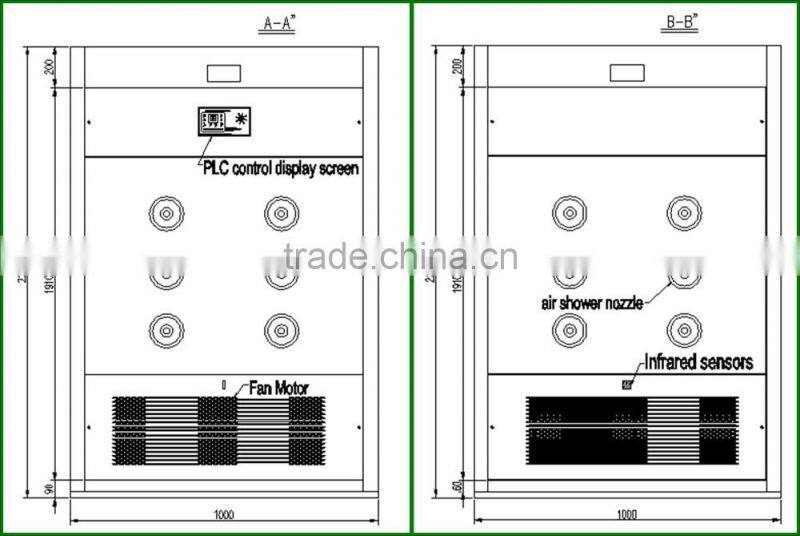

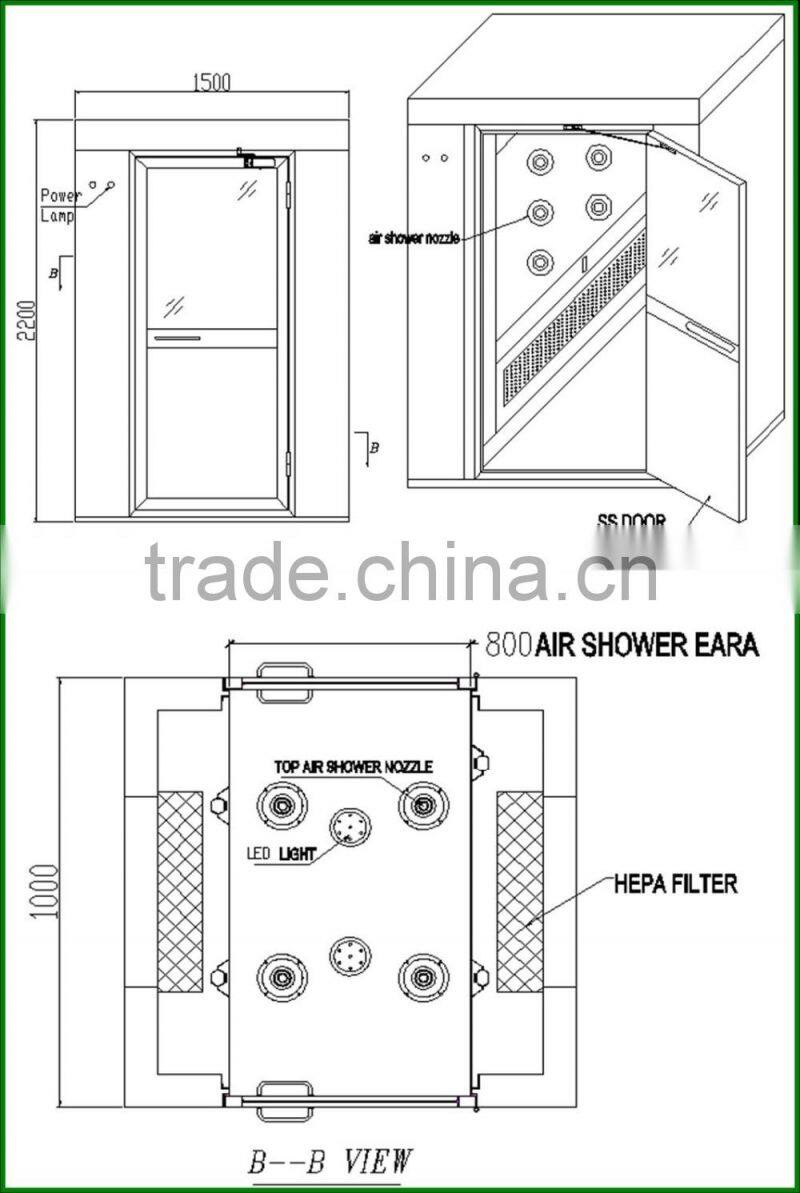

Air Shower Room CAD Size Drawing



Any question please feel free to call me or whatsapp available :0086-13925573754
