Home > Industrial Equipment & Components > Filtration Equipment & Parts > Air Filter > F7 Pocket Air Filter

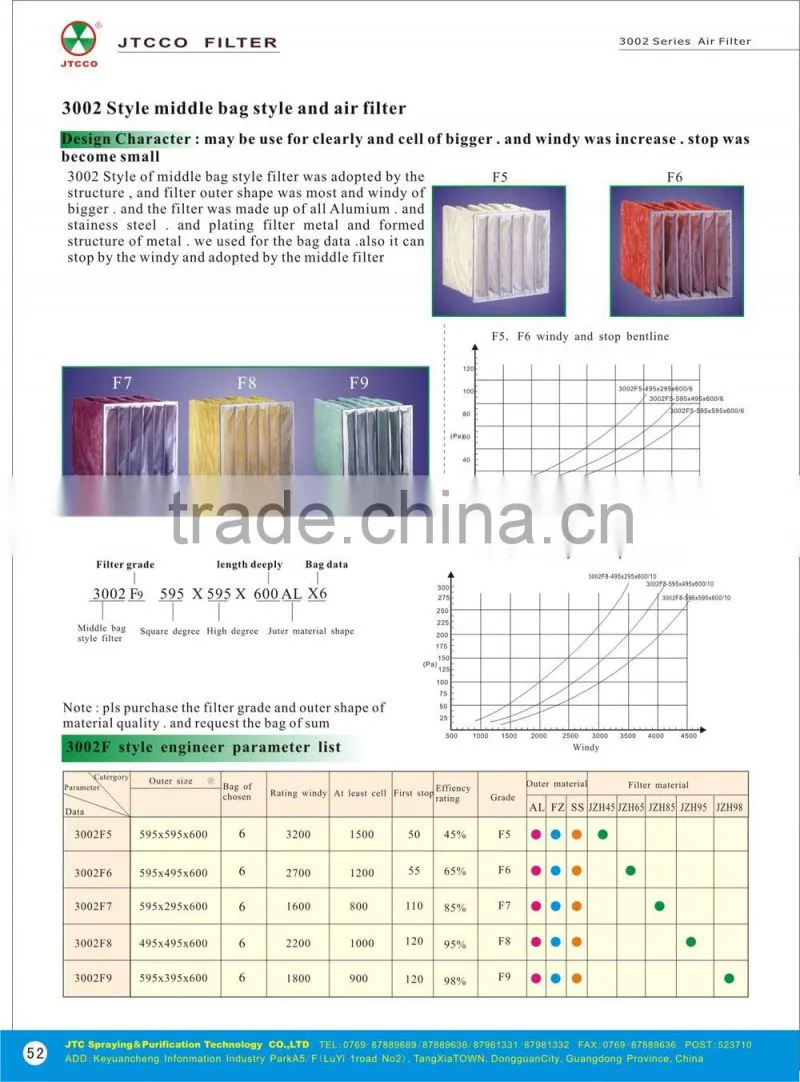

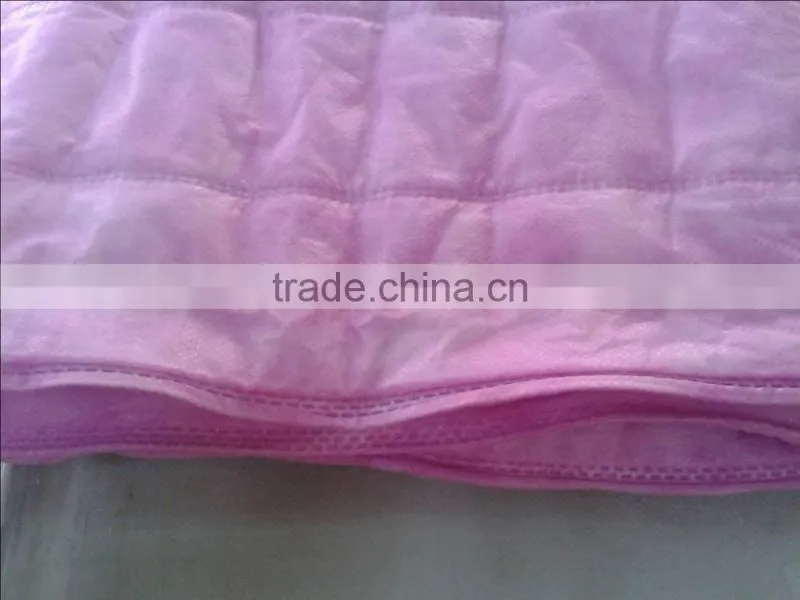

F7 Pocket Air Filter

Name: F7 Pocket Air Filter
Brand: JTCCO
SKU: 140667672
Availability: InStock

US$ 10 - 50 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Condition:

New

Efficiency:

90%

Construction:

Bag Filter

Contact Supplier Request Quote Chat Now

JTC Spraying System (Dongguan) Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Efficiency 90%

Construction Bag Filter

Filtration Grade Medium Filter

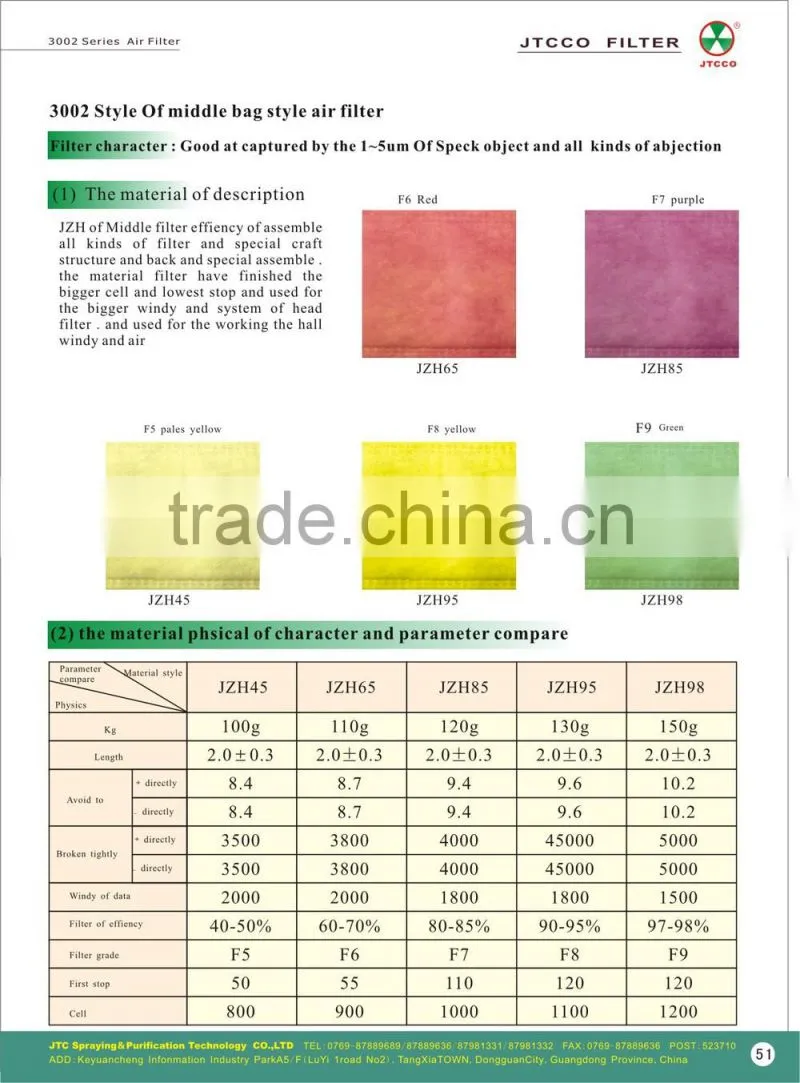

Medium Material Synthetic Fiber

Porosity 5

Place of Origin Guangdong, China

Brand Name JTCCO

Dimension(L*W*H) 595*595*21

Weight 2kg

Certification ISO

Warranty 1yea

After-sales Service Provided Engineers available to service machinery overseas

pocket air filter introduce

Just as the first incarnation revolutionised bag filter design, JTC pushes the boundaries of filter technology even further. With a state-of-the-art synthetic media incorporating nanofibres, JTC provides a remarkable dust holding capacity and life, whilst maintaining a low pressure drop.

Whilst the JTC bag filter retains many of the features that made its predecessor such a success, the most notable benefit over the previous model is the additional service life. Thanks to a unique filter media, JTC provides up to double the operating life than the previous model, which already boasted excellent longevity itself.

This additional life is not at the expense of performance, however – efficiency levels are improved for all filtration grades, in fact. And, with both initial and minimum test efficiencies also enhanced, JTC comfortably meets the requirements of EN 779:2012.

With this added performance and life comes a two-fold benefit to filter spend. Obviously, a longer life reduces the frequency that bag filters need to be changed, but JTC also eliminates the need for a separate prefilter too, further lessening filter spend. In addition, the removal of a prefilter stage immediately improves the pressure drop of the system, reducing energy consumption even further.

Technology

Feature

Meets the requirements of EN 779:2012 - Provides validated performance

'A' rated energy efficiency - For low cost and environmentally-friendly operation

Nanofyne+™ media - Maximum efficiency with minimal pressure drop

Specially designed Aluminum frame - Guarantees the seal between filter media and frame

Extended filter surface and high dust holding capacity - Provides up to double the service life and lowers life-cycle costs

Recyclable or fully incinerable - Easy, environmentally-friendly disposal

Stiff frame and durable filter media - Simplifies filter replacement

Stiff, welded pockets - Ensure an air-tight seal and eliminate particle loss from air flow variations

Mechanically bound fibres - Prevent shedding and provide resistance to humidity and potentiall

Aerodynamic design - Reduces pressure drop, saves energy and contributes to low life-cycle costs

High filtration efficiency - Remains stable even under extreme conditions

Accessories

As the heart of any filtration system, filter media is integral to the overall performance of the air handling unit, and choosing the correct media can dramatically improve the pressure drop, efficiency and life of a filter system. Predominantly used in the HVAC sector, replacement air filter media (combined with reloadable filter frames) is a cost effective solution to preassembled air filters.

Product Uses

Making indoors a happier and healthier place to be – that’s Vokes Air's aim for Clean Air applications. This is no mean feat however. Today, it is estimated that we spend between 80 to 90% of our time indoors, where pollution is typically two to five (but can be up to 100) times higher than the level of pollutants found externally.

This is why more and more public buildings are utilising air conditioning filtration systems to improve the comfort of occupants, and ensuring the highest level of indoor air quality to avoid sick building syndrome (particularly in the workplace) is a primary concern for building owners and operators.

Our Clean Air division is focused upon the manufacture and supply of air filters for HVAC and comfort ventilation purposes. Designed to provide maximum value and performance for end users, service companies and OEMs, our HVAC air filters are typically employed in:
