Vacuum Double Boiler for Cosmetics With Emulsifier Mixer

Vacuum Double Boiler for Cosmetics With Emulsifier Mixer thumbnail-1
Vacuum Double Boiler for Cosmetics With Emulsifier Mixer thumbnail-2
Vacuum Double Boiler for Cosmetics With Emulsifier Mixer thumbnail-3
Vacuum Double Boiler for Cosmetics With Emulsifier Mixer thumbnail-4
Vacuum Double Boiler for Cosmetics With Emulsifier Mixer thumbnail-5
Vacuum Double Boiler for Cosmetics With Emulsifier Mixer thumbnail-6
Vacuum Double Boiler for Cosmetics With Emulsifier Mixer photo-1
Vacuum Double Boiler for Cosmetics With Emulsifier Mixer photo-2
Vacuum Double Boiler for Cosmetics With Emulsifier Mixer photo-3
Vacuum Double Boiler for Cosmetics With Emulsifier Mixer photo-4
Vacuum Double Boiler for Cosmetics With Emulsifier Mixer photo-5
Vacuum Double Boiler for Cosmetics With Emulsifier Mixer photo-6
US$ 2,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Agitator
Product Type:
Other, Vacuum Double Boiler for cosmetics with emulsifier mixer
Contact Supplier Request Quote Chat Now
Zhejiang L And B Fluid Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Mixer Type Agitator
Product Type Other, Vacuum Double Boiler for cosmetics with emulsifier mixer
Application Other, Vacuum Double Boiler for cosmetics with emulsifier mixer
Additional Capabilities Other, homogenizer mixer
Place of Origin Zhejiang, China
Brand Name L&B
Model Number GMT
Max. Loading Capacity 20000L
Voltage 110V~480V,50/60Hz
Power(W) 0.75KW~45KW
Dimension(L*W*H) customized
Certification ISO
Warranty 12 Months
After-sales Service Provided Overseas service center available
Product Description

Vacuum Double Boiler for cosmetics with emulsifier mixer

Brand: L&B
Material : stainless steel 304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE  ISO9001:2008

Product Name:
Vacuum Double Boiler for cosmetics with emulsifier mixer
Description:
Designed according to ISO9001/GMP standard, widely used for mixing liquid medium in the food-processing, cosmetics and pharmaceutical industries
Heating method
By electricity (oils or water), by steam, by gas
Material:
SS304/SS316L
jacket: dimple jacket/ miller board, hollow jacket or coil pipe jacket etc.
insulation layer: PU Foam
as to the thickness, we can make it according to your requirement.
Optional Configuration
1.manhole
2.CIP spraying ball
3.adjusting feet
4.sample valve
5.temperature gauge
ure gauge
7.level gauge
Capacity:
50L-10000L
Agitator:
With agitator or not
Agitator type
Frame, paddle, scraper, homogenizer, turbo type etc.
Agitator Speed
20-36rpm, 50-300rpm, 760-1450rpm, 2800-3000rpm
Mechanical seal:
SIC/SiC/EPDM(Standard)
Agitator power:
0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:
Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:
110-480V, 50/60Hz
Motor:
ABB, LOCAL,50hz/ 60hz
Surface treatment:
Inner polished and outside polished
Available connection:
Clamp, Thread Butt weld, Flange
Available standard:
DIN, SMS, 3A, RJT, ISO/IDF
Operated:
Electric
Application scope:
Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:
Plywood case Or as per the request of customers
Delivery details:
Usually within 35 days after receiving T/T down payment

Applicable range:

1. Used as blending tank, mixing tank, preparation tank, fermentation tank, disinfection tank and ageing tank etc.
2. Ideal in fields such as food, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics:

1.Adopt structure of internal tank and external package, with heat preservation materials inside.
2.Materials are all sanitary stainless steel.
3.Humanized structure design and easy to operate.
4.Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.

Effective volume
Dimension of tank
Total height
Diameter of inlet&outlet
Heat preservation layer
(L)
(mm)
(mm)
(mm)
(mm)
500
840*1000
2250
38
60
600
920*1000
2300
38
60
700
990*1000
2300
38
60
800
950*1220
2500
38
60
900
1010*1220
2500
38
60
1000
1060*1500
2850
51
60
1500
1160*1500
2850
51
60
2000
1340*1500
2900
51
60
3000
1410*2000
3400
51
60
4000
1620*2000
3450
51
60
5000
1810*2000
3500
51
60
6000
1980*2000
3550
51
60
7000
1930*2440
4000
51
60
8000
2060*2440
4000
51
60
9000
2180*2440
4050
51
60
10000
2300*2440
4050
51
60
12000
2270*3000
4600
51
60
15000
2530*3000
4700
51
60
20000
2640*3660
5400
51
60
Detailed Images

1. SS304 and SS316 sanitary stainless steel


2.  sanitary polishing, 3A standard

adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.


1. Dust proof engine base:

inside stainless steel bearing, with dust cover to avoid dust and grease dirt into tank.



2. YAD circular type manhole cover with pressure

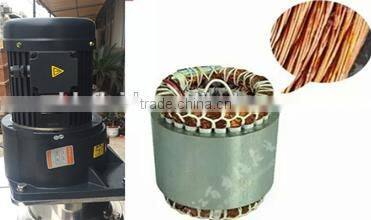

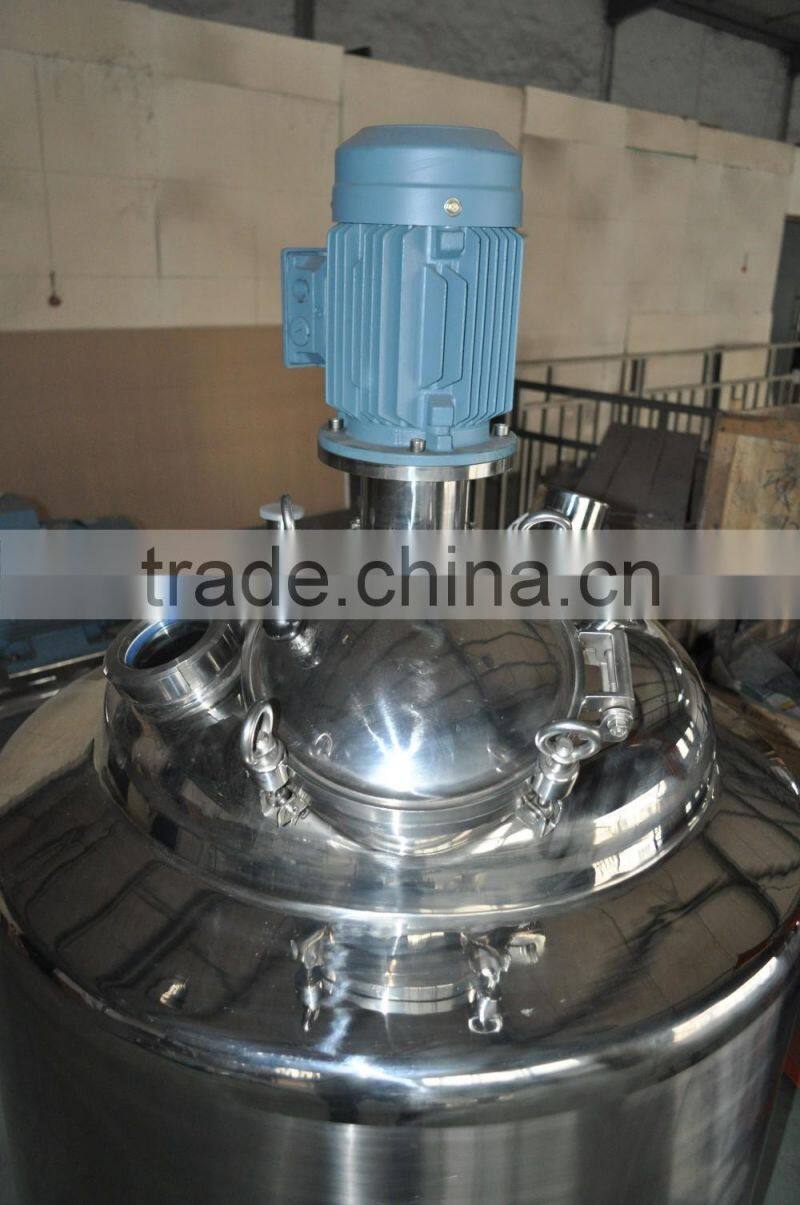

Pure copper motor:

low noise, stable dynamic, sustainable work.

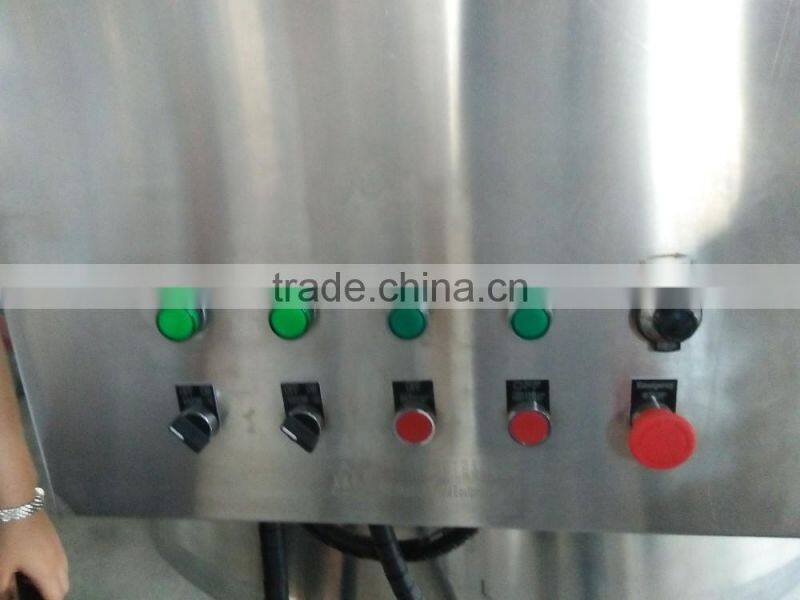

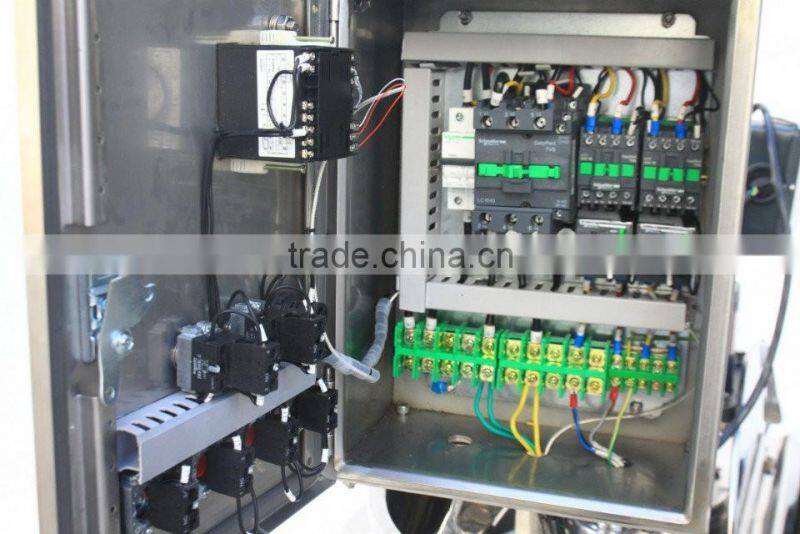

Electric control box:

1. intelligent temperature controller, SS304 box


2. PT100  thermal resistance


3. Electric Components: Germany Schneider

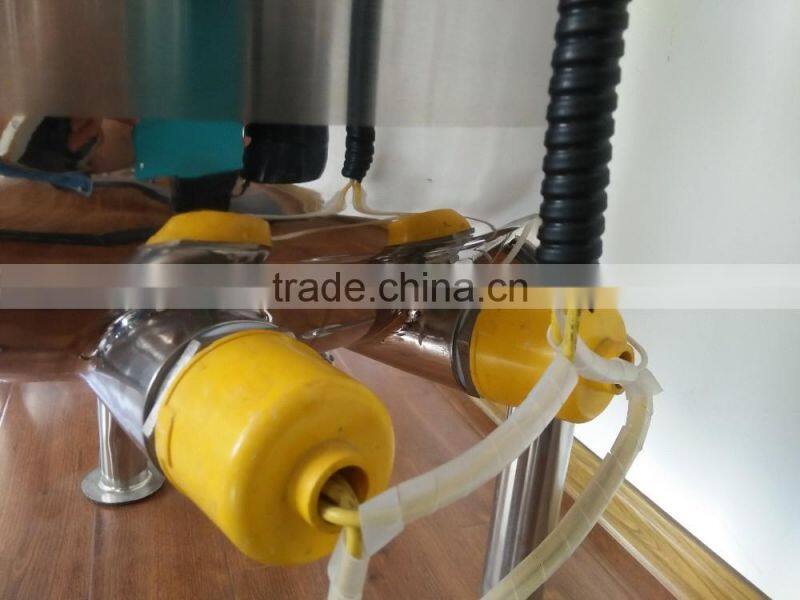

Electrical heated tube:

1. adopt threaded connection form, convenient assembly.


2. pad adopt Import teflon material, Resistant to 300 degrees temperature, difficult to leak.

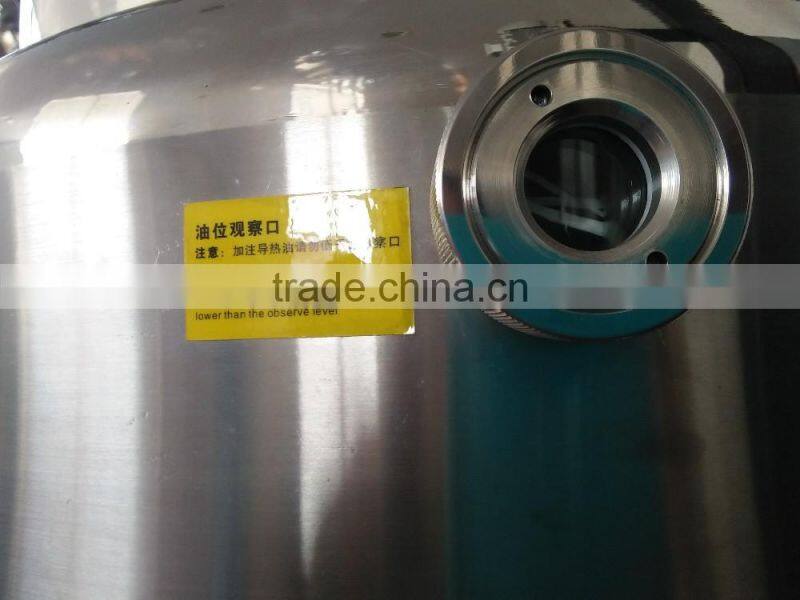

Oil Sight glass:

tempered glass material, threaded connection form.

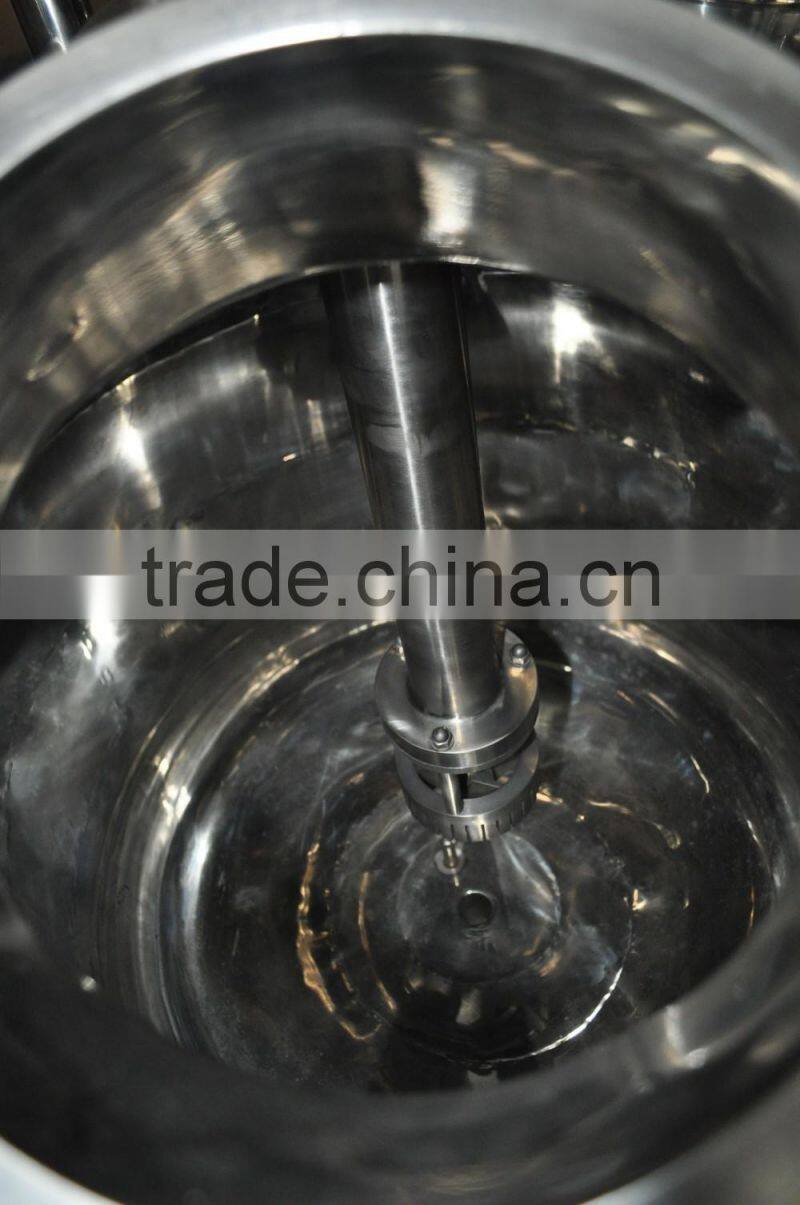

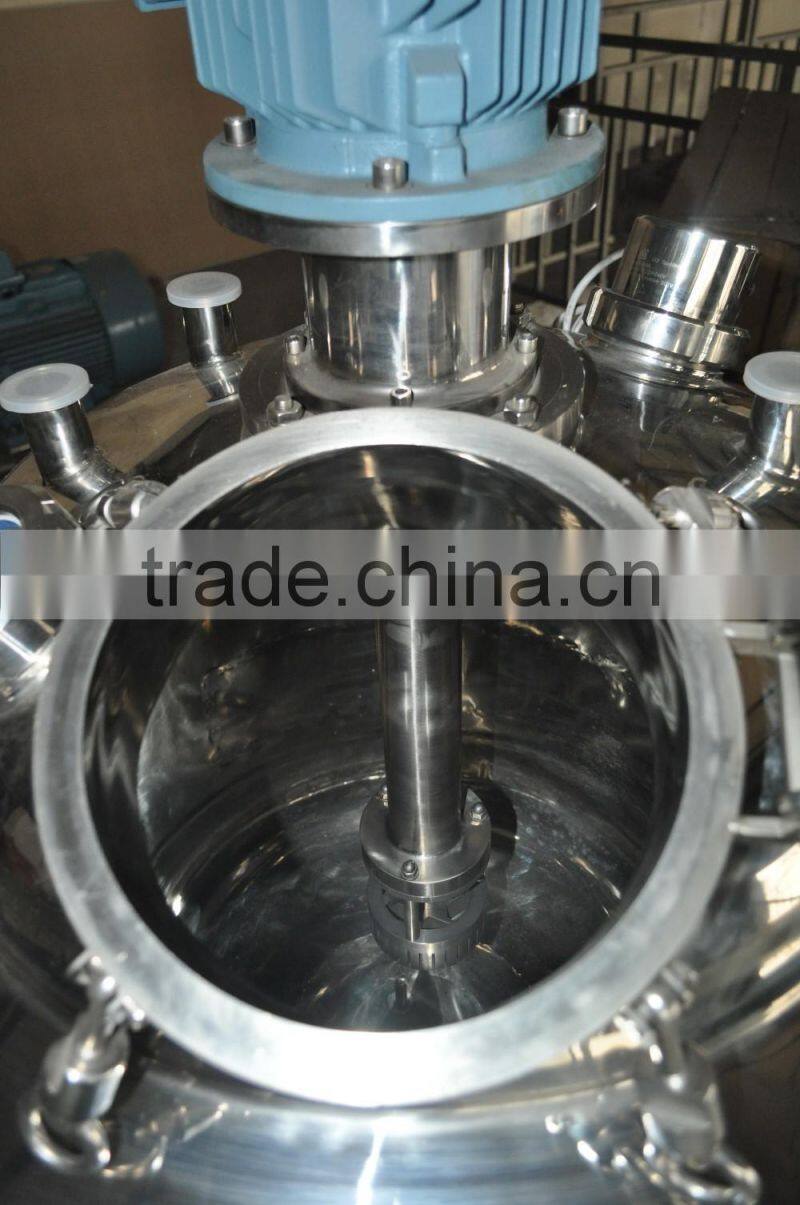

SS agitator:

1. rotation speed can be constant speed, also can be equipped with VFD according to real work condition.

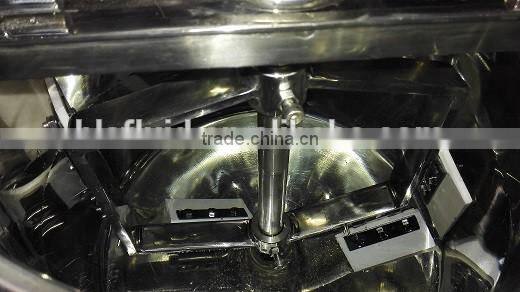

2. Agitator can be frame mixer, paddle, scattered disk, scraper, ribbon etc.
