High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer

High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer thumbnail-1
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer thumbnail-2
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer thumbnail-3
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer thumbnail-4
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer thumbnail-5
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer thumbnail-6
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer photo-1
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer photo-2
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer photo-3
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer photo-4
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer photo-5
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer photo-6
US$ 2,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Agitator
Product Type:
Fertilizer
Contact Supplier Request Quote Chat Now
Zhejiang L And B Fluid Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Mixer Type Agitator
Product Type Fertilizer
Application Liquid
Additional Capabilities Other, vacuum emulsifying mixer
Place of Origin Zhejiang, China
Brand Name L&B
Model Number BRH3
Max. Loading Capacity 20000L
Voltage 110V~480V,50/60Hz
Power(W) 0.75KW~45KW
Dimension(L*W*H) customized
Certification ISO
Warranty 12 Months
After-sales Service Provided Overseas service center available
Product Description

High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer

Brand: L&B
Material : stainless steel 304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE  ISO9001:2008

Reference parameters of high shear fertilizer homogenizer:
Name
High Speed Steel 3000RPM Vacuume Liquid Fertilizer Mixer
Brand name
L&B
Material
ss304 and ss316(ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong.)
MOQ
one set
Warranty
mechanical seal warranty period is 6 months, sleeve is 1 month, and  other parts within 12 months
Wearing parts
sleeve, mechanical seal
Sleeve material
graphite bushing, PTFE etc.
Motor power
1.1-75kw
Speed
2800rpm
Package
plywood case
Deliver
with 10 working days after received the payment
Payment terms
T/T advance
Capacity
5-10000L/H
Motor
Siemens is optional
Hot sale
high temperature heat treatment, difficult deformation
Different types

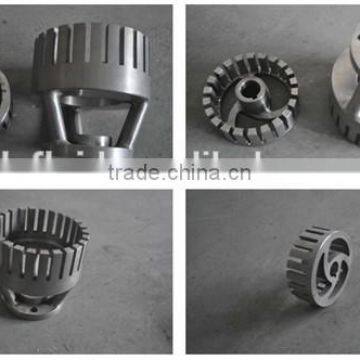

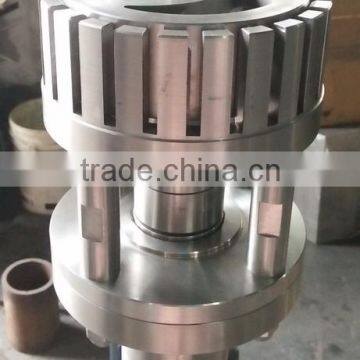

1) BRH I: straight tooth, be good at dispersive mixing, suit liquid(exclude oil) and powder mixing;

2) BRH II: oblique tooth, be good at homogeneous emulsifying, suit oil liquid and powder mixing;

3) BRH III and kettle bottom emulsification head: straight tooth and oblique tooth are optional, small capacity, proof pressure(positive pressure≤3 Bar, negative pressure≤1Bar, high pressure≤8Bar).

4) BRH IV: straight tooth and oblique tooth are optional, suit 1.5T-2.5T tank, the whole length can reach 2.5m-2.7m, motor power is more than 30kw(equipped with water-cooling system).

5) BRJ: with shear, good at emulsifying, best at dispersion, suit ≤10T tank, with water-cooling mechanical seal(it must be equipped with water-cooling system in bearing).

Applicable range:

1. Suitable for all kinds of large and small reaction kettle, uniform, fine on the common container, emulsification.
2. Small capacity of emulsion can be used for mobile lifting.
3. Widely applied in food, beverage, chemical, biochemical, petrochemical, pigments, dyes, paints, pharmaceuticals and other industries.

Structure characteristics:

1. Simple overall structure, small size, light weight.
2. Humanized structure design and easy to operate.
3. Low noise and smooth operation.

Model
Power
Speed
Length
Capacity
(kw)
(rpm)
(mm)
(L/H)
BRH-80
1.1
2800
350
10~40
BRH-90
1.5
2800
350
10~50
BRH-100
2.2
2800
650
50~100
BRH-120
3
2800
750
100~200
BRH-120A
4
2800
750
100~300
BRH-140
5.5
2800
900
200~600
BRH-140A
7.5
2800
900
200~800
BRH-160
11
2800
1050
500~1500
BRH-180
18.5
2800
1200
600~2000
BRH-200
22
1400
1200
800~2500
BRH-220
30
1400
1355
1000~3500
BRH-240
45
1400
1395
1500~5000
BRH-270
55
1400
1600
2000~8000
BRH-290
75
1400
1650
3000~10000
Detailed Images
Packing & Delivery
Certifications
Our Company
FAQ
Our Service
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
 Process
Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a
We will dispatch our Quality and Problems Appraisers to make a confirmation.
b
Have a negotiation of the compensation and sign agreements
c
Our After-Sales Department will perform the duties as the agreements
