1800L Soy Bean Steam Cooker With Pneumatic

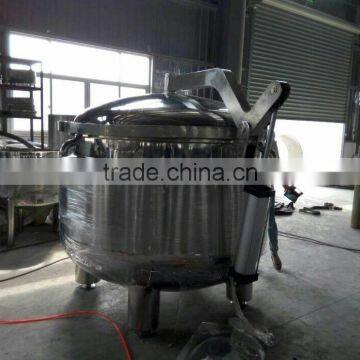

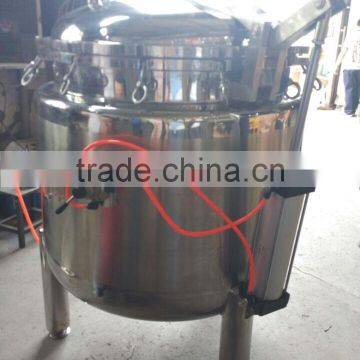

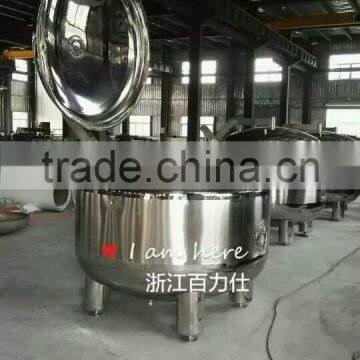

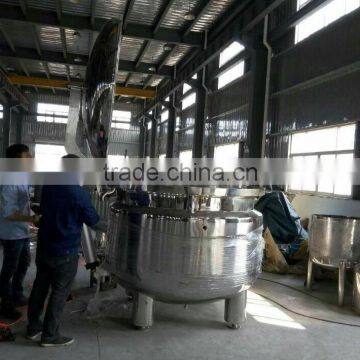

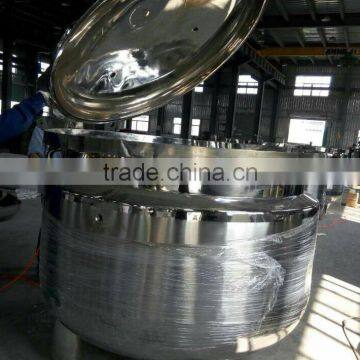

1800L Soy Bean Steam Cooker With Pneumatic photo-1
1800L Soy Bean Steam Cooker With Pneumatic photo-2
1800L Soy Bean Steam Cooker With Pneumatic photo-3
1800L Soy Bean Steam Cooker With Pneumatic photo-4
1800L Soy Bean Steam Cooker With Pneumatic photo-5
1800L Soy Bean Steam Cooker With Pneumatic photo-6
US$ 1,000 - 3,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Paddle
Product Type:
Shampoo
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Mixer Type Paddle
Product Type Shampoo
Application Liquid
Additional Capabilities Other, ean steam cooker
Place of Origin Zhejiang, China
Brand Name L&B
Model Number BLS-JBG
Max. Loading Capacity 20T
Voltage 110-480V can be customized
Power(W) 0.55-45KW
Dimension(L*W*H) according to different capacity
Certification ISO ,CE , UL,SGS
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description



 1800L soy bean steam cooker with pneumatic



Name:  bean steam cooker

Brand:Bailishi

Packaging:woodencase

Heated by oil, water, steam or electric.

Payment:T/T

Delivery time:About 25 workdays

Advantages:high quality and competitive price

Technical advantage:20 years manufacture experience

Products advantage:10 years manufacture experience



Application field:
Used as mixing tank, blending tank ,or storage tank etc.
Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Configuration of  bean steam cooker:
Quick open manhole.
Various types of CIP cleaners.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable materials input pipe assembly
Thermometer (According to customer requirements ).
Ladder (According to customer requirements).
Paddle blender.
Liquid level meter and lever controller (According to customer requirements).





Feature:

There are many options for choosing the type of Jacketed heating, such as electric heating, steam heating,oil heating. According to technological requirements, the mixing part can choose high shear, high speed dispersion or low speed anch or mixing, paddle mixing, propeller mixing and so on.



If you are not satisfied, Don't be disappointed, the images and parameters are not comprehensive at
the webpage. You can tell us your request and we will recommend one to you. And also  customizeour engineer can exclusively design for you.

Technical Parameters



Effective volume Dimension                 of tank Total height Diameter of inlet&outlet Heat preservation layer
(L) (mm) (mm) (mm) (mm)
500 840*1000 2750 60 38
600 920*1000 2850 60 38
700 990*1000 2850 60 38
800 950*1220 3000 60 38
1000 1060*1220 3150 60 51
1500 1160*1500 3350 60 51
2000 1340*1500 3410 60 51
3000 1410*2000 4000 60 51
5000 1810*2000 4300 60 51
8000 2060*2440 5000 60 51
10000 2300*2440 5050 60 51
12000 2270*3000 5600 60 51
20000 2640*3660 6400 60 51
Product Photos



 1800L soy bean steam cooker with pneumatic1800L soy bean steam cooker with pneumatic1800L soy bean steam cooker with pneumatic1800L soy bean steam cooker with pneumatic1800L soy bean steam cooker with pneumatic

1800L soy bean steam cooker with pneumatic



Related Products

Below is the high shear milk homogenizer you may like,it can be conncected with the tank for loop emulsion,if you are interested in it,pls feel free to contact me

 1800L soy bean steam cooker with pneumatic



Certifications

1800L soy bean steam cooker with pneumatic





Company Information

       Zhejiang L & B Light Industry Machinery Co.,Ltd established in 1995,Located in BinHai Industrial Zone. Wenzhou City.

       Our main products including industrial pressure cooker, mixing tank with agitator, high shear mixer, beer fermenter and Sanitary pumps
etc.

        Meanwhile we also accept customized stainless steel parts and components for all industries.

BLS products could applied in food, beverage, pharmacy, chemical, cosmetics industries etc

       We now exports our goods to United States, Australia, Newzealand and Japan etc.

1800L soy bean steam cooker with pneumatic1800L soy bean steam cooker with pneumatic1800L soy bean steam cooker with pneumatic1800L soy bean steam cooker with pneumatic1800L soy bean steam cooker with pneumatic1800L soy bean steam cooker with pneumatic1800L soy bean steam cooker with pneumatic



FAQ



1. Q: How do I pay for my purchase order?

      A:   T/T, L/C



2. Q:  What's the MOQ of  bean steam cooker?

    A:  Our MOQ of  bean steam cooker is 1 unit.



3. Q:What's the delivery time?

    A: It will take about 15-30days to finish an order, but the exact time is according to actual situation.



4. Q: Can I have my own customized product?

    A: Of course, you products can be  customed for example color, logo, design, mark, etc.



5. Q: Do you have quality control of  bean steam cooker?

    A: Yes, we attach great importance to quality control for bean steam cooker



6. Q: How about the warranty control?

     A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
