Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > Honey Cooling and Heating Tank

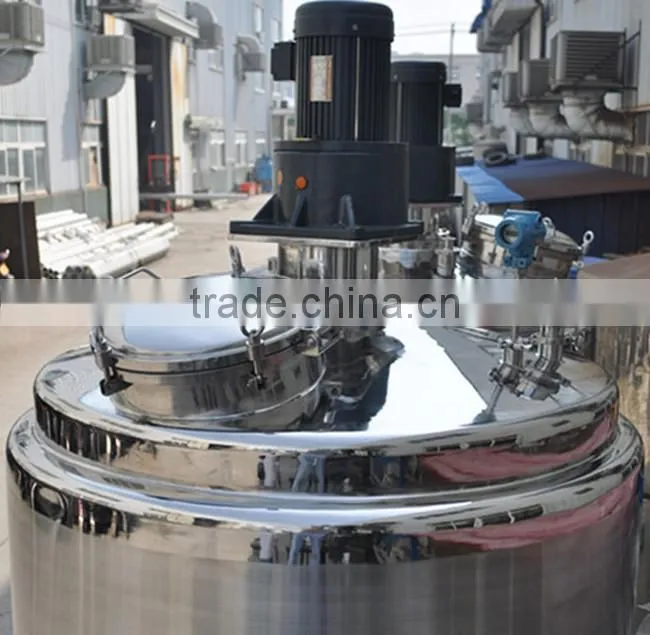

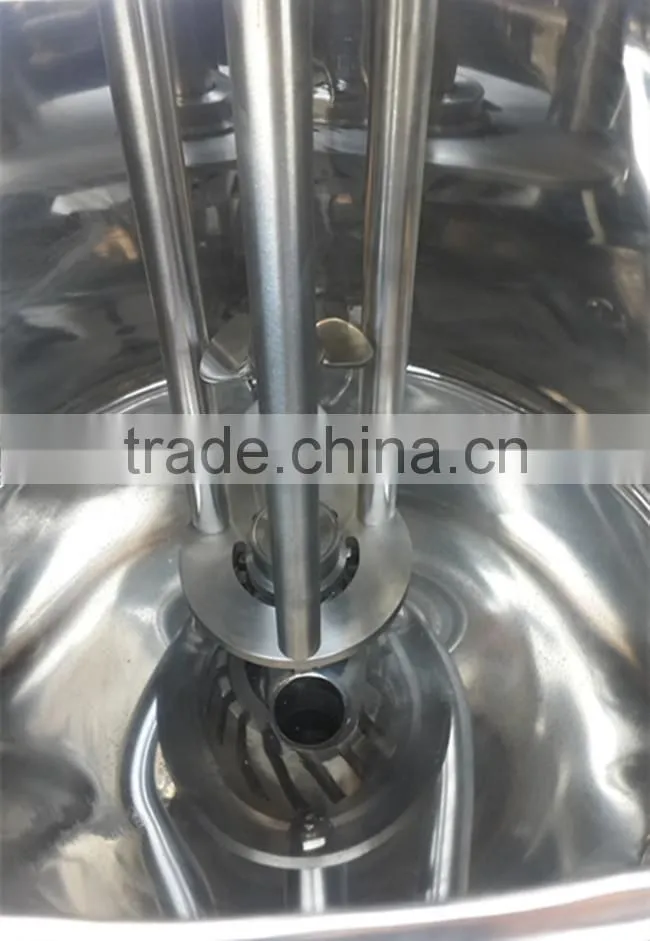

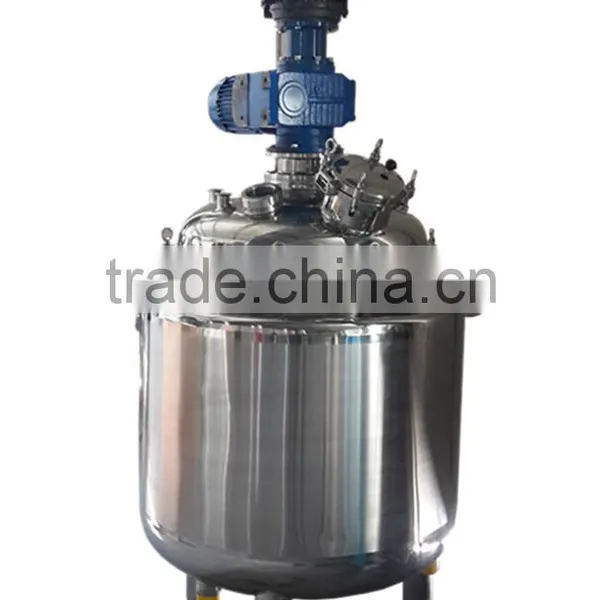

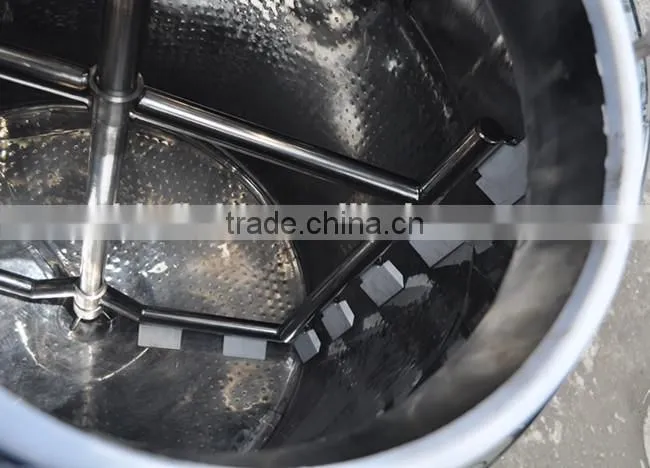

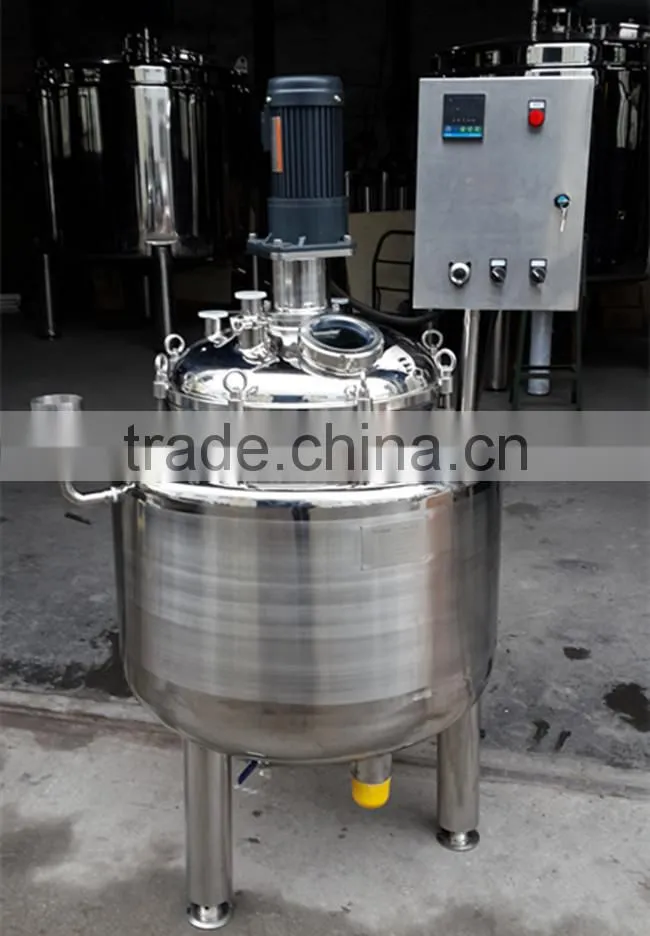

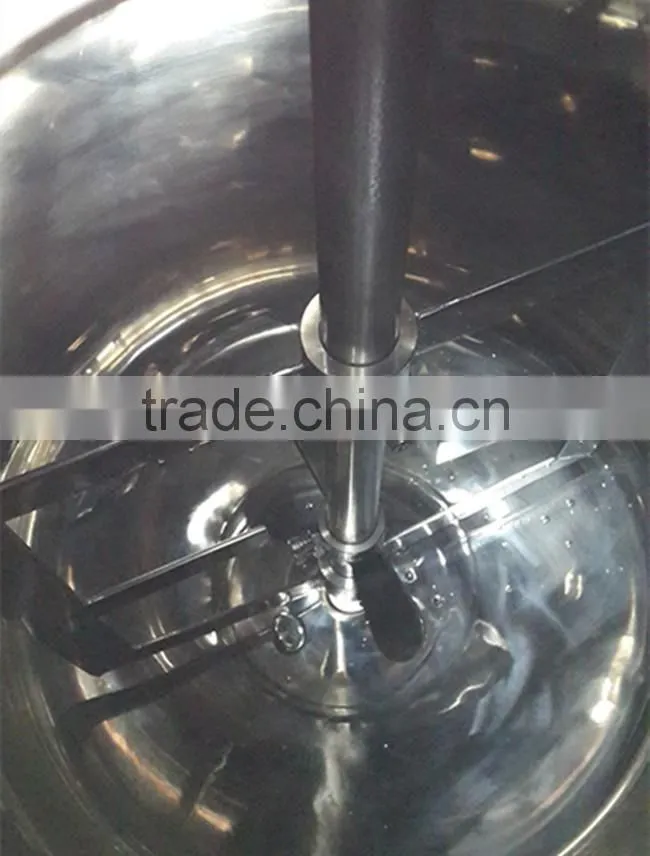

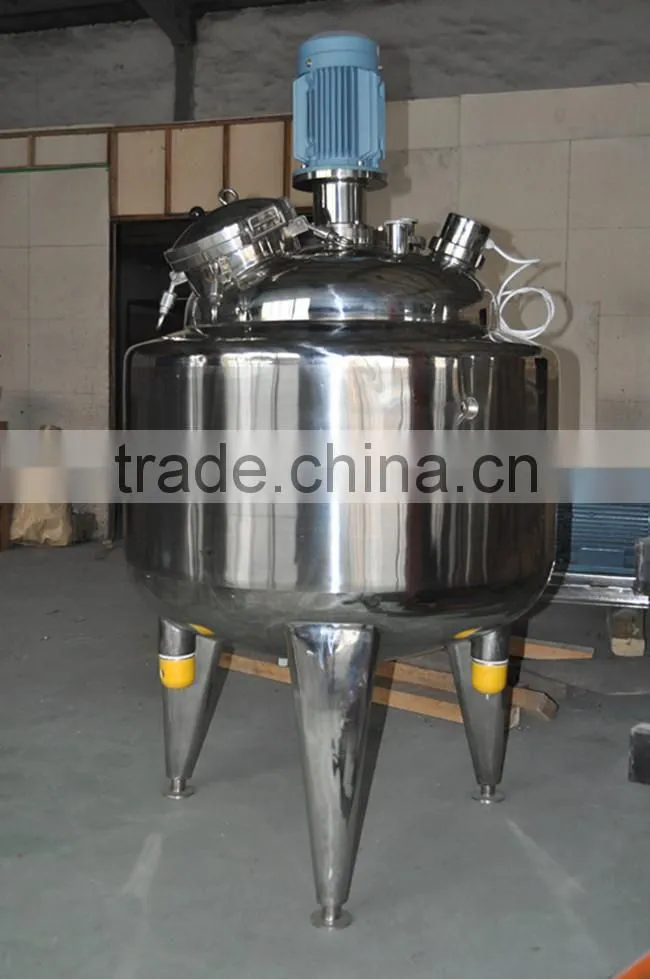

Honey Cooling and Heating Tank

US$ 900 - 12,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Agitator

Product Type:

Other, Food

Contact Supplier Request Quote Chat Now

Zhejiang L And B Fluid Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Agitator

Product Type Other, Food

Application Liquid

Additional Capabilities Milling

Place of Origin Zhejiang, China

Brand Name BLS

Model Number Q100-20000L

Max. Loading Capacity 20000L

Voltage 220V or 380V

Power(W) 0.55-5.5KW

Dimension(L*W*H) As per your request

Certification CE, ISO, SGS

Warranty 1 year

After-sales Service Provided No overseas service provided

Product Description

Application range:

1. Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc.

2. Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristic:

1. Made of single-layer stainless steel structure.

2. Materials are all sanitary stainless steel.

3. Humanized structure design and easy to operate.

4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

Configuration of tank:

1. Quick open manhole.

2. Various types of CIP cleaners.

3. Fly and insect resistant sanitary breathing cover.

4. Adjustable triangular bracket.

5. Dismountable materials input pipe assembly.

6. Thermometer (According to customer requirements).

7. Ladder (According to customer requirements).

8. Liquid level meter and level controller (According to customer requirements ).

Technical Parameters

Effective volume	Dimension of tank(D*H)	Total height	Diameter of inlet&outlet	Motor power	Blending speed
(L)	(mm)	(mm)	(mm)	(kw)	(r/min)
500	840*1000	2750	38	0.55	Common rotation speed 35,43,60 ; stepless speed reducer or dual-speed reducer are also available
600	920*1000	2850	38	0.55
700	990*1000	2850	38	0.55
800	950*1220	3000	38	0.55
900	1010*1220	3000	38	0.55
1000	1060*1220	3150	51	0.75
1500	1160*1500	3350	51	0.75
2000	1340*1500	3410	51	1.1
3000	1410*2000	4000	51	1.5
4000	1620*2000	4250	51	1.5
5000	1810*2000	4300	51	2.2
6000	1980*2000	4550	51	2.2
7000	1930*2440	5000	51	2.2
8000	2060*2440	5000	51	3
9000	2180*2440	5050	51	3
10000	2300*2440	5050	51	3
12000	2270*3000	5600	51	4
15000	2530*3000	5700	51	4
20000	2640*3660	6400	51	5.5
