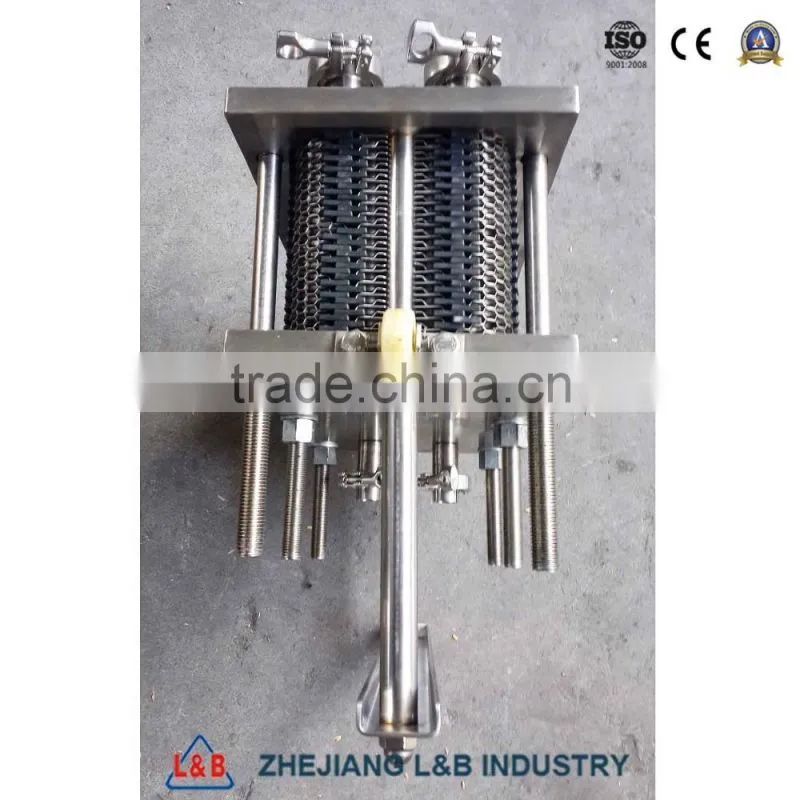

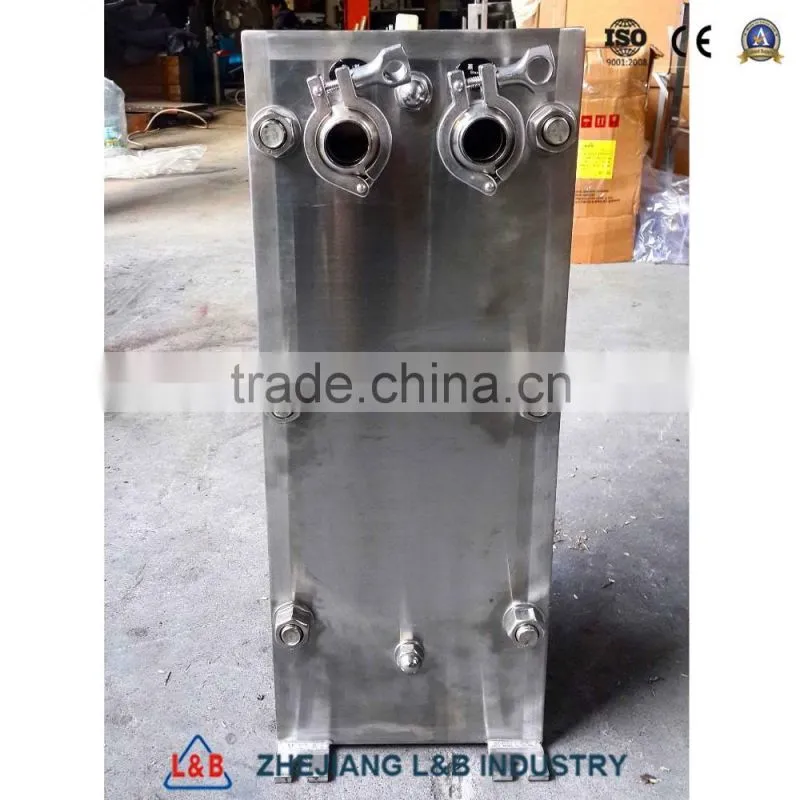

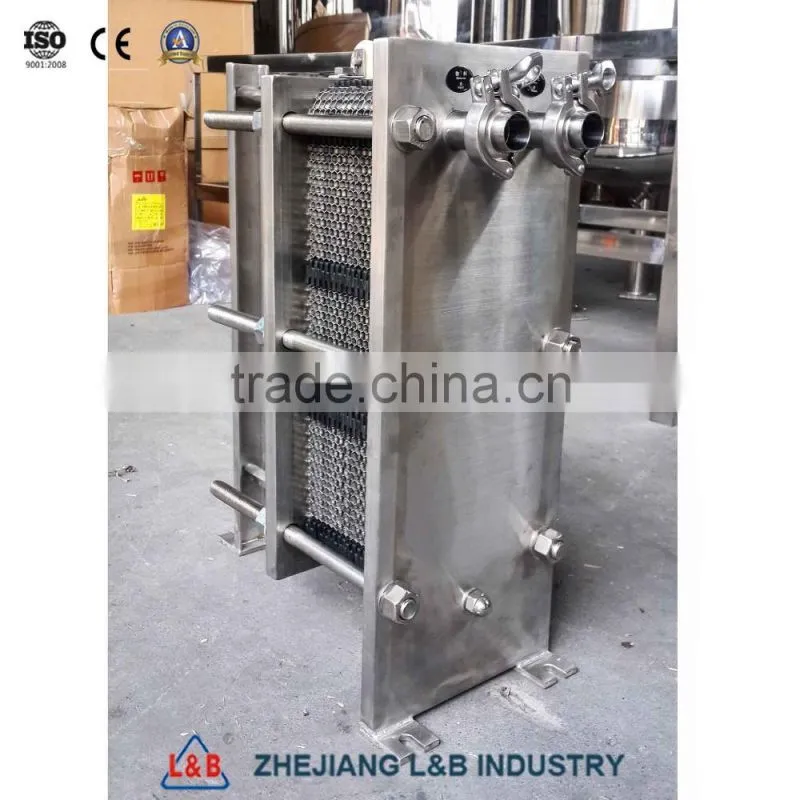

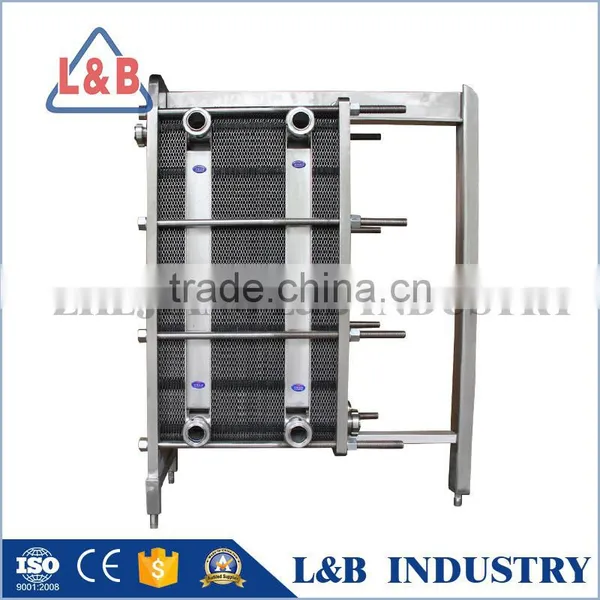

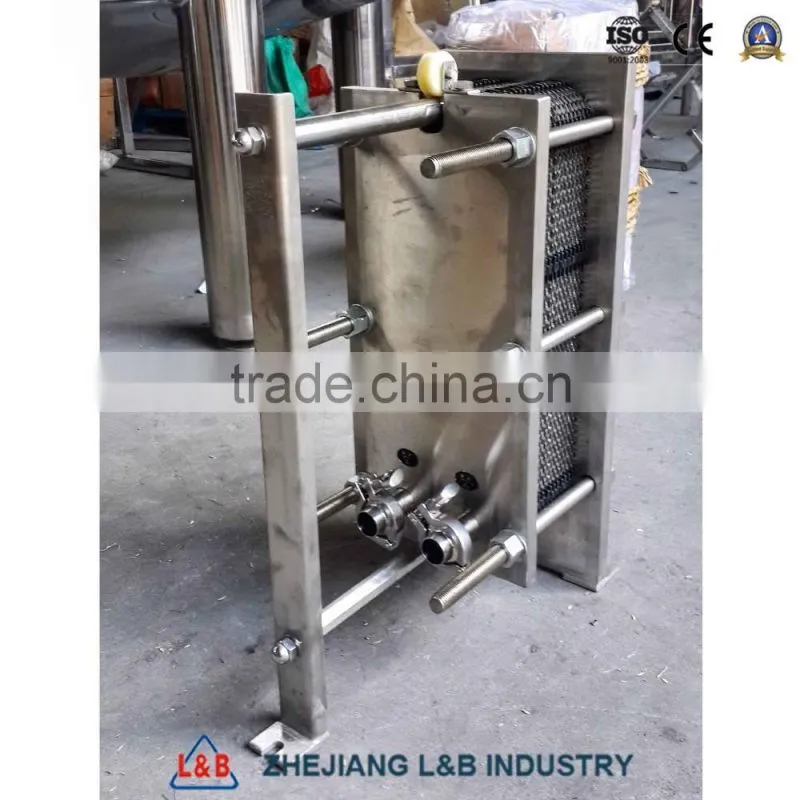

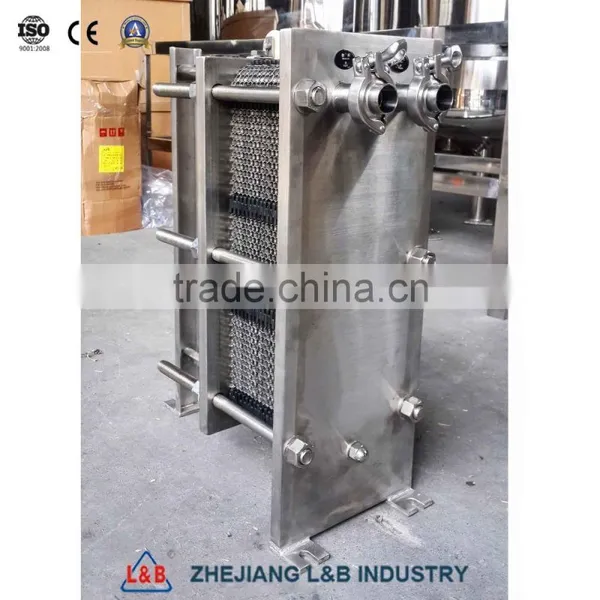

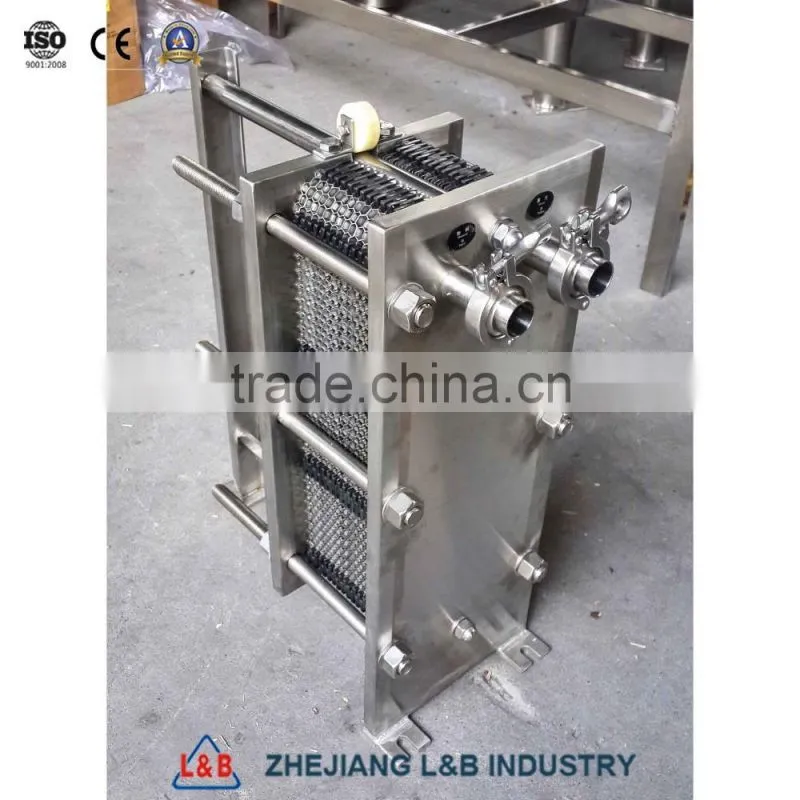

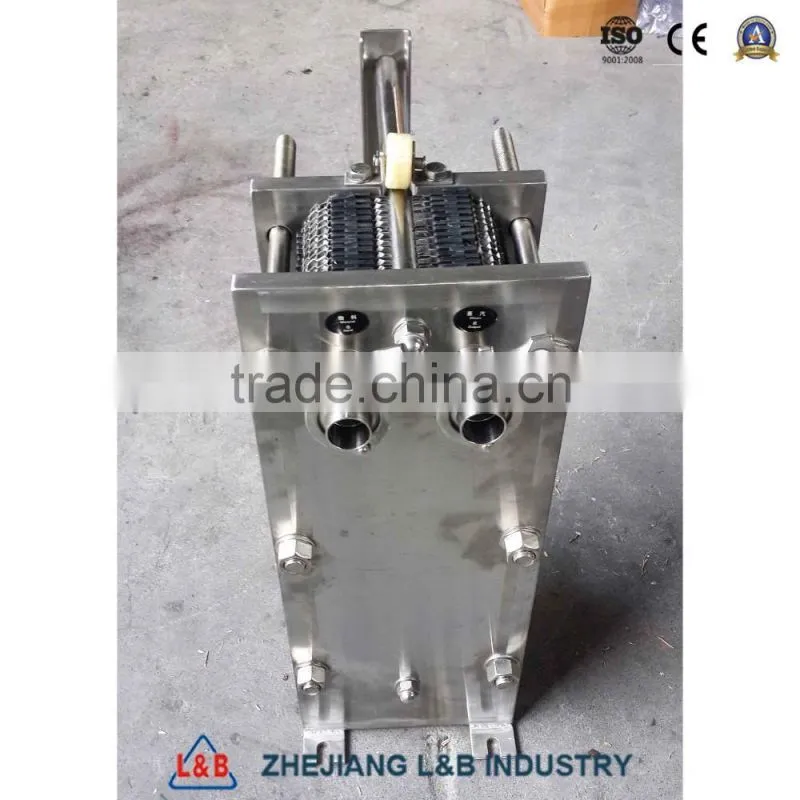

Plate heat exchanger
Composed of a group of corrugated mental sheets.
There are holes on the metal sheets.
The heat transmission will take place between the two fluids passing these holes.
The plate combination is installed between a frame plate and a pressure plate, which are fastened by tightening bolts.
The seal ring installed on the plats is used to seal the passage and guide the fluid alternately into the passage.
The quantity of plate depends on the physical property, pressure drop and temperature program of of fluid.
The corrugation of plate improves the eddy flow of fluid and plays supporting action to the different pressure of plate.
Application
It is applicable for the cooling and heating of liquid products in pharmacy and food, CIP cleaning liquid, and also applicable for the pasteurized sterilization in some applications.
| Model | Pipe size | Max assembly area | Max capacity | Weight |
| mm | m2 | m3/h | kg | |
| BR07 | DN32 | 7 | 20 | 105 |
| BR15 | DN65 | 30 | 70 | 400 |
| BR25 | DN65 | 25 | 80 | 830 |
| BFR25 | DN100 | 50 | 250 | 800 |
| BR35 | DN100 | 50 | 200 | 1640 |
| BR36 | DN125 | 60 | 250 | 1250 |
| BR55 | DN200 | 180 | 800 | 3500 |
| BR60 | DN150 | 180 | 400 | 3500 |
| BR100 | DN200 | 300 | 650 | 4773 |
| BR160 | DN300 | 800 | 2300 | 1200 |
Custom-made is avaiable
Supply Mixing tank,Reactor tank,fermentation tank,Inline homogenizer,High shear emulsifier mixer,Colloid mill,Jacket cooking kettle,Rotor pump,screw pump,emulsion pump,transfer pump etc.
Wenzhou L&B Fluid Equipment co., Ltd have special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields. We have advanced CNC lathes imported from Japan. We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard). Our products can get to the international standard and meet the requiement of GMP, so they are widely used in many fields, such as dairy, beer, food, pharmacy, beverage, cosmetic etc.,exported to America, Europe, the Middle East.
