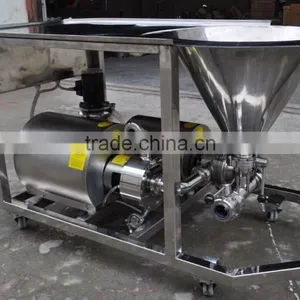

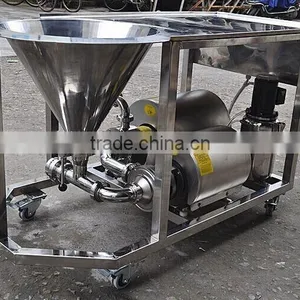

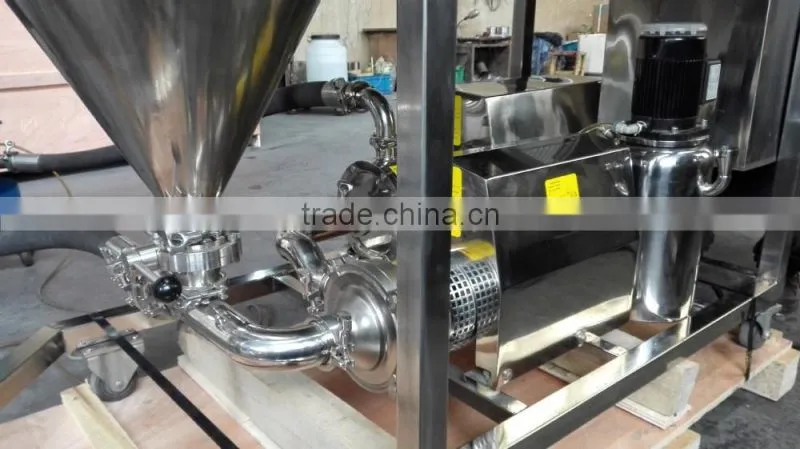

Help CenterStainless Steel Water And Powder Dosing Mixing Machine
Related Products
-
Hot Sale Stainless Steel Tube Heat ExchangerUS$ 2,000 - 12,000MOQ: 1 Set -
200 l Steel Drum Type High Effective Batching Barrels With EmulsifierUS$ 1,200 - 6,000MOQ: 1 Set
-
Tube Heat ExchangeUS$ 1,500 - 3,000MOQ: 1 Set
-
Stainless Steel Beverage, Almonds, Milk, Juice Making SystemUS$ 1,500 - 20,000MOQ: 1 Unit
-
Food Grade Juice Produce MachineUS$ 1,500 - 20,000MOQ: 1 Unit
WPL Series Effective Dosing Machine:
SS304, SS316(L)
CE, ISO9001: 2008
Reliable quality, beatiful surface

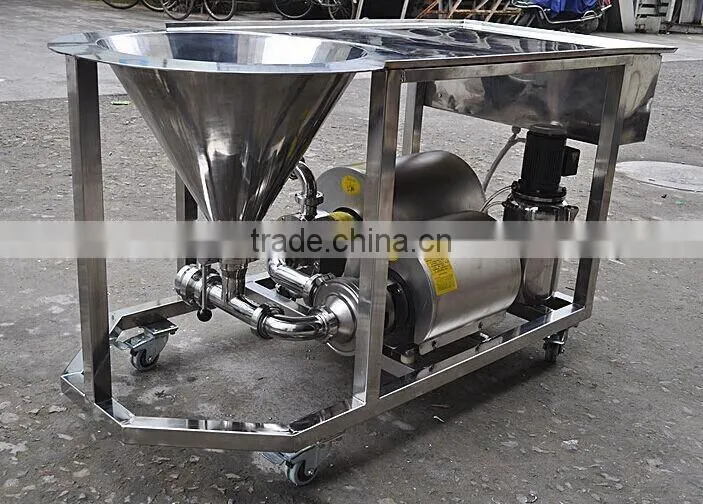

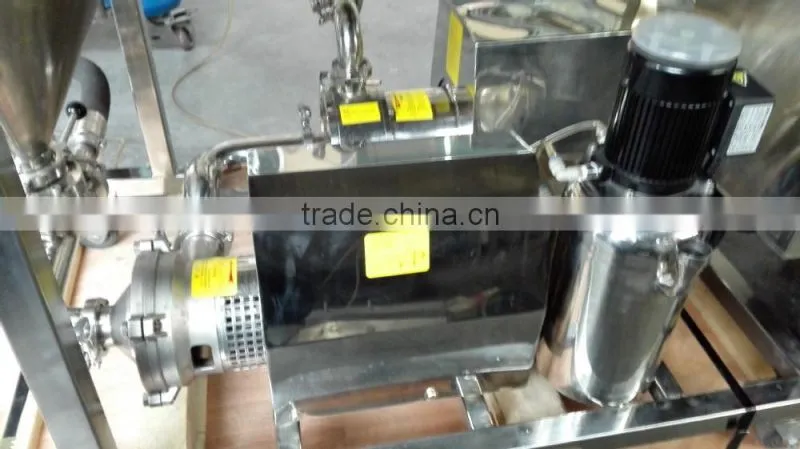

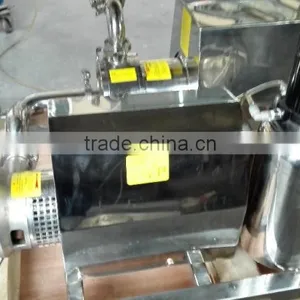

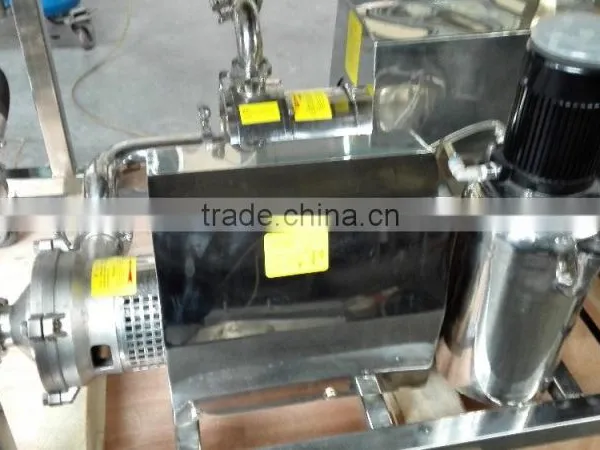

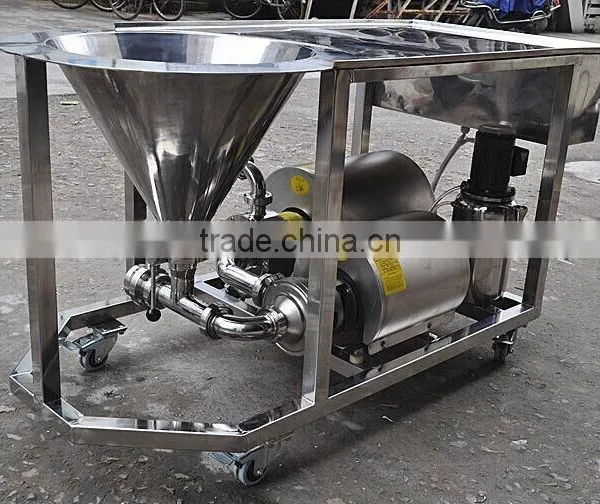

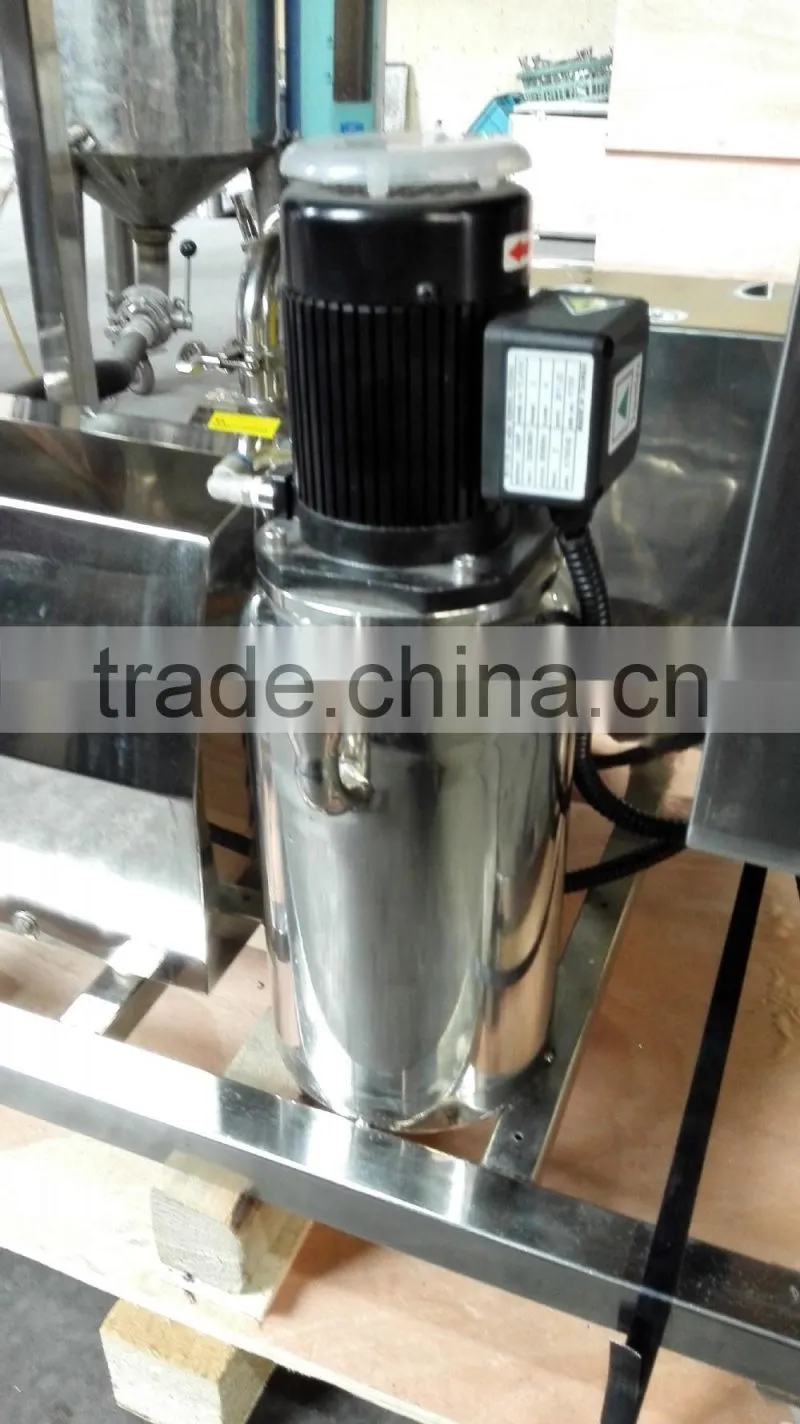

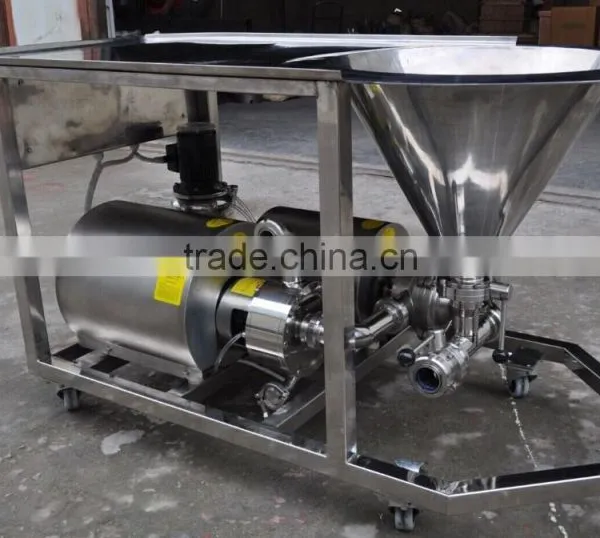

Powder liquid mixer (effective dosing machine ) is composed of machine body and centrifugal
pump water wheel, which are vertically installed. Through a double-layer wall pipe, the liquid
materials and solid materials are separately pumped in, which can prevent them from agglomeraling
before entering into the main body. When the liquid enters into the main machine body of mixer at
high speed, vacuum will produce in the center of water wheel to suck the solid materials. The solid
materials will be evenly sucked in through the regulation of valve under the doukou tank. It has brief
design and multiple functions. It can rapidly and evenly mix multiple solid materials without contacting
the air. The mixing is enough and the product can be recycled. with advanced design, fine manufacturing,
high production efficiency and durable use, it obtained stale patent.
Operation Principle:
WPL effective online mixer system is the latest generation of solid and liquid, liquid and the liquid fast,
efficient hybrid systems equipment. The system has powerful central vacuum of power system to ensure
operation of the system efficient, safe and reliable , but also the clever design of a set of peices and bite
rotor wil close subsystems, two systems synergy, working together, so that non-homogeneous materials
in small space rapidly and thoroughly mixed and heterogeneous, and may even be a meticulous verification
of stability production results.
Features :
1.Have mixed, stirring , decentralized, heterogeneous, emulsion, homogenized, and other functions,
high universality.
2.roduction stabllity unlform, can be infinitely repeated verfiation. Particularly in dairy prducts, beverages,
food and pharmaceutical production process more important.
3.No power Mission, grain-free,no clumps of a lectin.
4.High efficiency: compared with the traditional process can be shortened by about 80 percent of the time,
greatly improving production efficiency, reduce production costs.
5.Extensive application fo automated production lines, but also to different batch production applications.
6.Particulary applicable to high-viscosity, difficult to dissolve the materials ( viscosity up to 90,000mPas )
7.Hassle free equipment can be fully online CIP/SIP, meet the health requirements and standards.
8.Modular structure: the scence without the direct use of debugging, sinificantly reducing installation costs.
9.Compact: small space, easy integration with other systems, saving investment.
Technical paramter :
| Model | Capacity ( T/H ) | Layer | Speed ( rpm ) |
| WPL-165 | 0.3-3 | 6 | 2800/1400 |
| WPL-165 | 0.3-5 | 8 | 2800/1400 |
| WPL-180 | 1-6 | 6 | 2800/1400 |
| WPL-180 | 1-8 | 8 | 2800/1400 |
| WPL-200 | 1-10 | 8 | 2800/1400 |
| WPL-200 | 1-12 | 10 | 2800/1400 |
| WPL-230 | 2-15 | 10 | 2800/1400 |
| WPL-250 | 2-20 | 10 | 2800/1400 |
