Introdution
Material: 304(L) or 316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO
1)Easy operation and elastic movement.
2)Adopt compressed air motor, no leakage pollution, safe and explosion-proof
3)Special processing adopted in appearance, abrasion proof
4)Body use carbon steel print coloring matter, it can also be designed as stainless steel polished body
5)Match sterring wheel with brake for convenient movement
Application

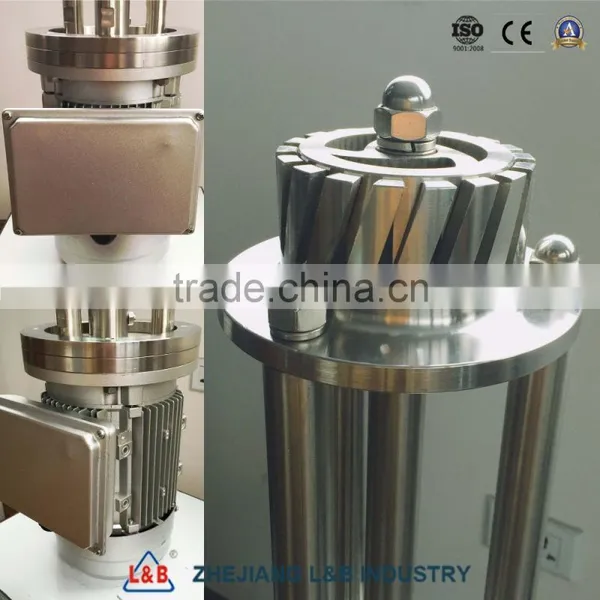

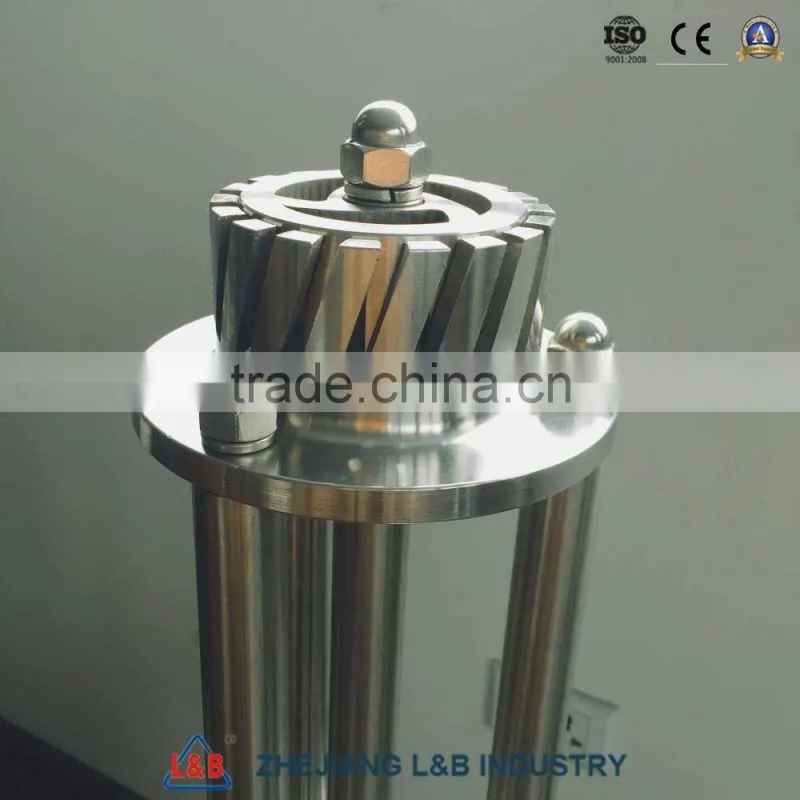

It is used for homogenizing and emulsifying creams with middle and low viscosity and suitable for most ingredients. Special stator and rotor generate strong cutting, milling, hitting and turbulence so that emulsifies water and oil, and then granule diameter reach stable status(1-2um)
Working Method

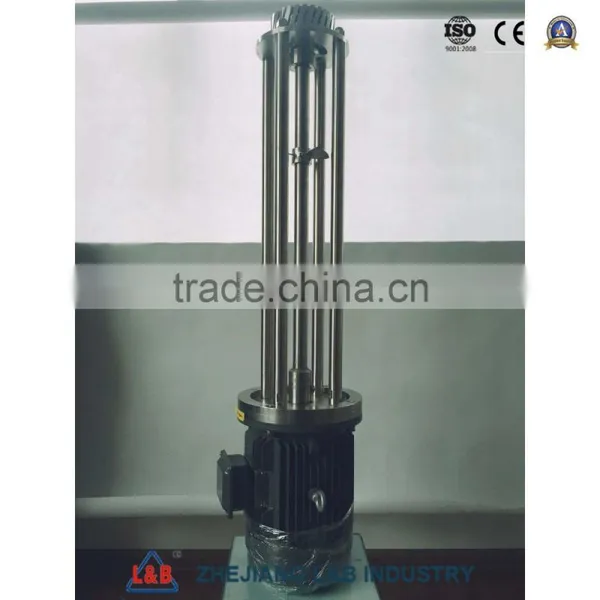

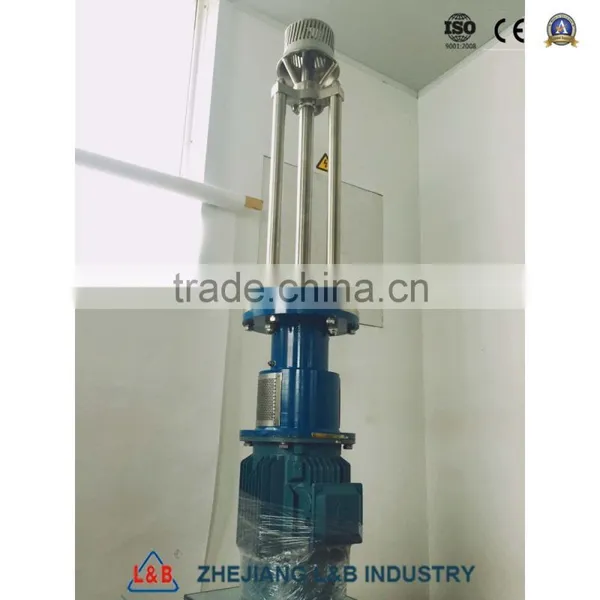

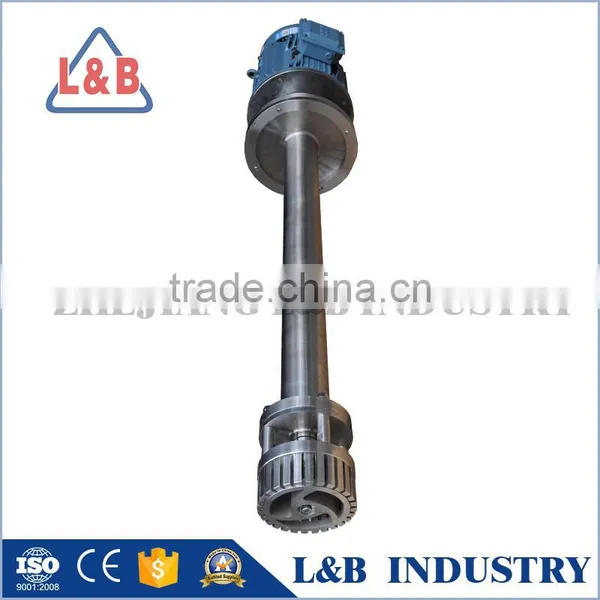

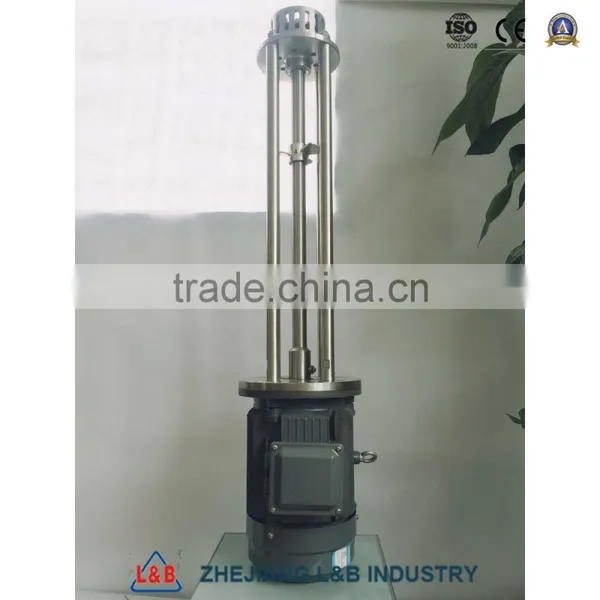

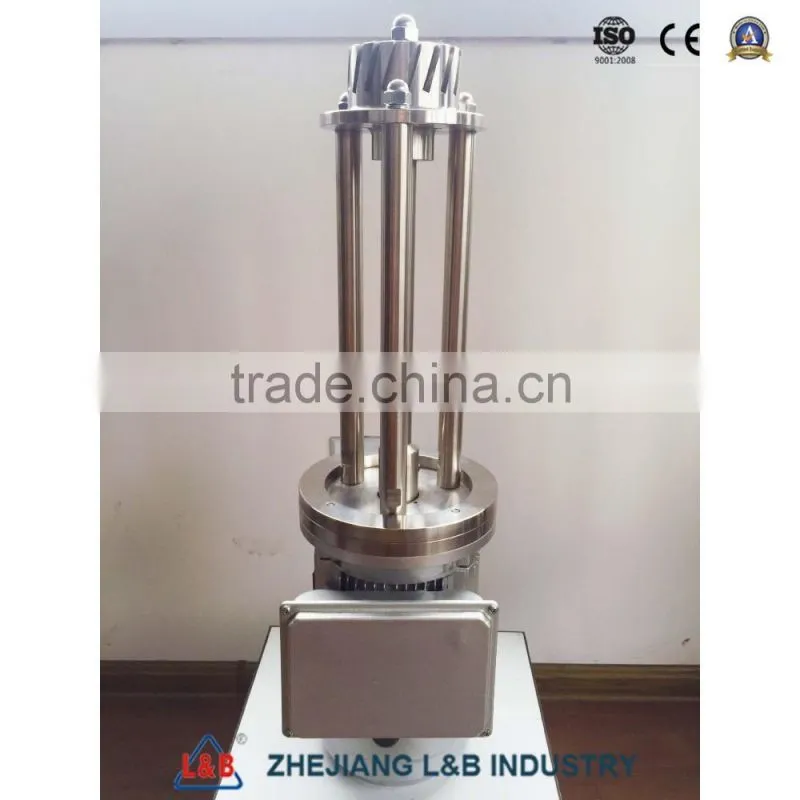

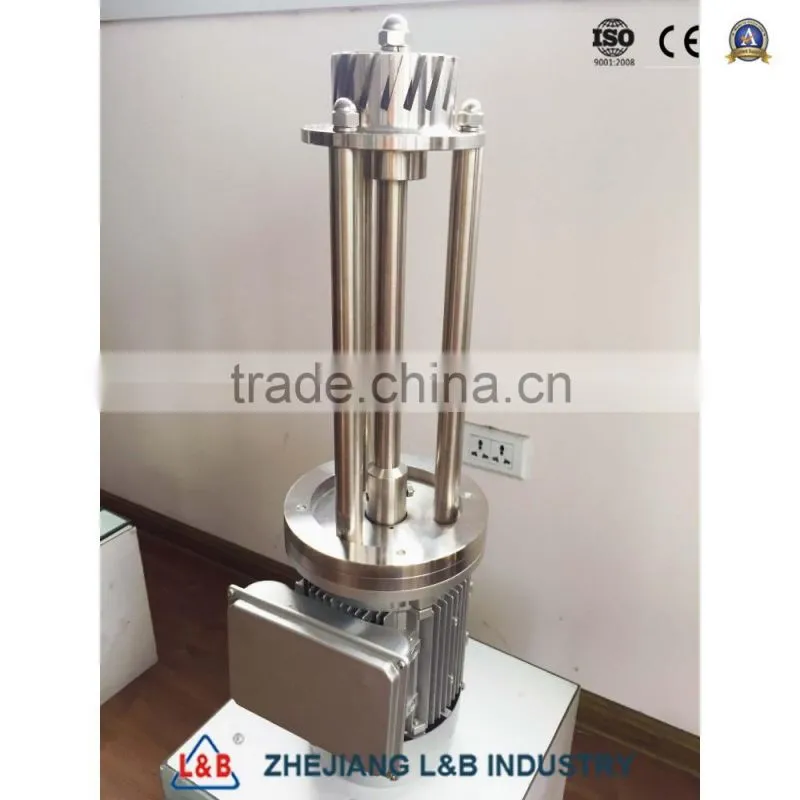

High Shear Batch Emulsifier(mixer) is suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. The products could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc. The Unit consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different stators to suit different working condition.
Features
All wetted parts are grade 304 or 316 Stainless steel
Mechanical Seal for Sanitary Operation
Quick opening for easy cleaning
Hygienic Design.
Explosion-proof ABB Motor 3 Phase
| Model | Power(kw) | Speed(rpm) | Length(mm) | Handing Capacity(L/H) |
| BRH-80 | 1.1 | 2800 | 350 | 10-40 |
| BRH-90 | 1.5 | 2800 | 350 | 10-50 |
| BRH-100 | 2.2 | 2800 | 650 | 50-100 |
| BRH-120 | 3 | 2800 | 750 | 100-200 |
| BRH-120A | 4 | 2800 | 750 | 100-300 |
| BRH-140 | 5.5 | 2800 | 900 | 200-600 |
| BRH-140A | 7.5 | 2800 | 900 | 200-800 |
| BRH-160 | 11 | 2800 | 1050 | 500-1500 |
| BRH-180 | 18.5 | 2800 | 1200 | 600-2000 |
| BRH-200 | 22 | 1400 | 1200 | 800-2500 |
| BRH-220 | 30 | 1400 | 1355 | 1000-3500 |
| BRH-240 | 45 | 1400 | 1395 | 1500-5000 |
| BRH-270 | 55 | 1400 | 1600 | 2000-8000 |
| BRH-290 | 75 | 1400 | 1650 | 3000-10000 |
Custom-made is avaiable
Supply Mixing tank,Reactor tank,fermentation tank,Inline homogenizer,High shear emulsifier mixer,Colloid mill,Jacket cooking kettle,Rotor pump,screw pump,emulsion pump,transfer pump etc.
Wenzhou L&B Fluid Equipment co., Ltd have special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields. We have advanced CNC lathes imported from Japan. We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard). Our products can get to the international standard and meet the requiement of GMP, so they are widely used in many fields, such as dairy, beer, food, pharmacy, beverage, cosmetic etc.,exported to America, Europe, the Middle East.
