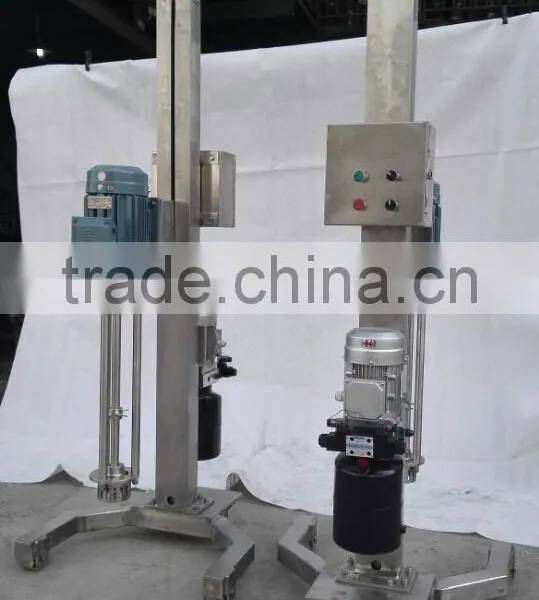

Hot Sale Hydraulic Lifting and Descending Cream Mixer/Cream Mixer Machine
Reference parameters of Hot Sale Hydraulic Lifting and Descending Cream Mixer/Cream Mixer Machine: | |
Name |
industrial electric liquid high shear homogenizer |
Brand name |
L&B |
Material |
ss304 and ss316(ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong.) |
MOQ |
one set |
Warranty |
mechanical seal warranty period is 6 months, sleeve is 1 month, and other parts within 12 months |
Wearing parts |
sleeve, mechanical seal |
Sleeve material |
graphite bushing, PTFE etc. |
Motor power |
1.1-75kw |
Speed |
2800rpm |
Package |
plywood case |
Deliver |
with 10 working days after received the payment |
Payment terms |
T/T advance |
Capacity |
5-10000L/H |
Motor |
Siemens is optional |
Hot sale |
high temperature heat treatment, difficult deformation |

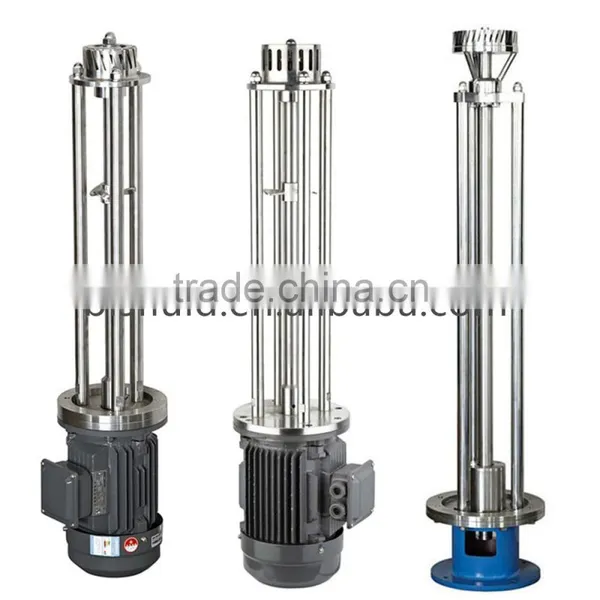

Different types |
1) BRH I: straight tooth, be good at dispersive mixing, suit liquid(exclude oil) and powder mixing;
2) BRH II: oblique tooth, be good at homogeneous emulsifying, suit oil liquid and powder mixing;
3) BRH III and kettle bottom emulsification head: straight tooth and oblique tooth are optional, small capacity, proof pressure(positive pressure≤3 Bar, negative pressure≤1Bar, high pressure≤8Bar).
4) BRH IV: straight tooth and oblique tooth are optional, suit 1.5T-2.5T tank, the whole length can reach 2.5m-2.7m, motor power is more than 30kw(equipped with water-cooling system).
5) BRJ: with shear, good at emulsifying, best at dispersion, suit ≤10T tank, with water-cooling mechanical seal(it must be equipped with water-cooling system in bearing). |
BRH1
Features:
It is a kind of vertical installation of emulsification equipment. Stator design for claw type coupling structure, material from the host upper and lower suction at the same time, and around the centrifugal throw, Shear homogeneous efficiency multiplied, to avoid the problem of kettle inside the upper material is easy to produce blind Angle.

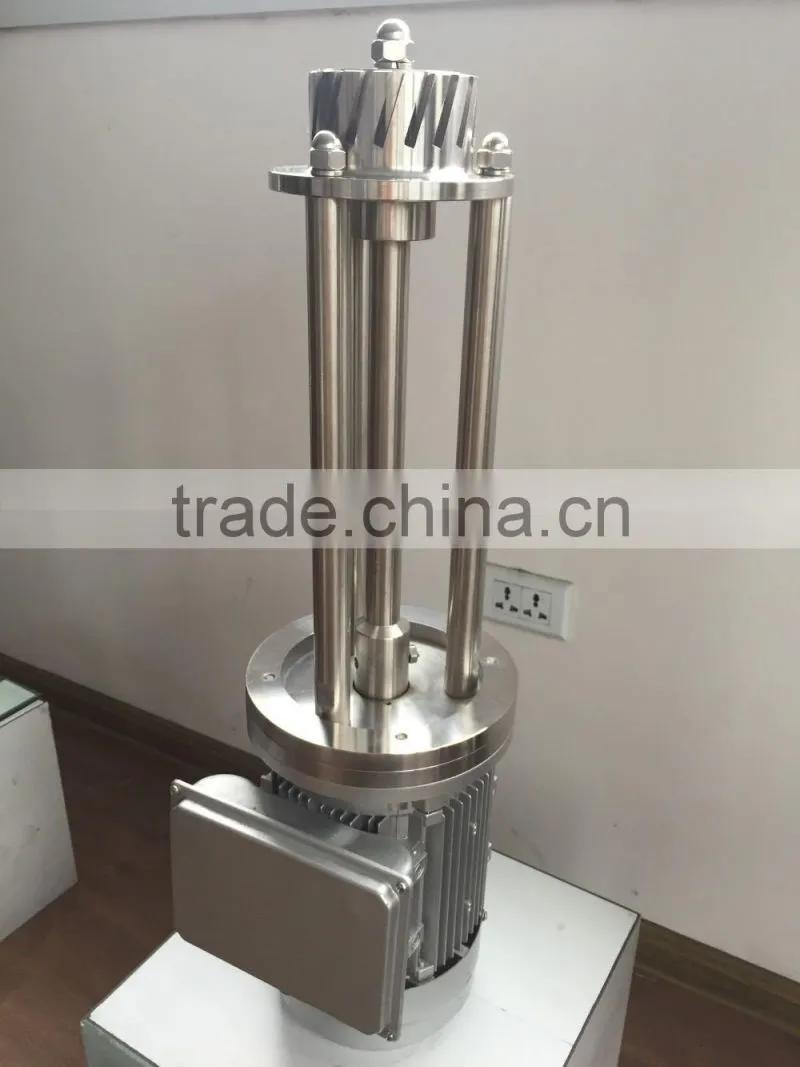

BRH2
Characteristics
1. Simple overall structure, small size, light weight.
2. Humanized structure design and easy to operate.
3. Low noise and smooth operation.
BRH3

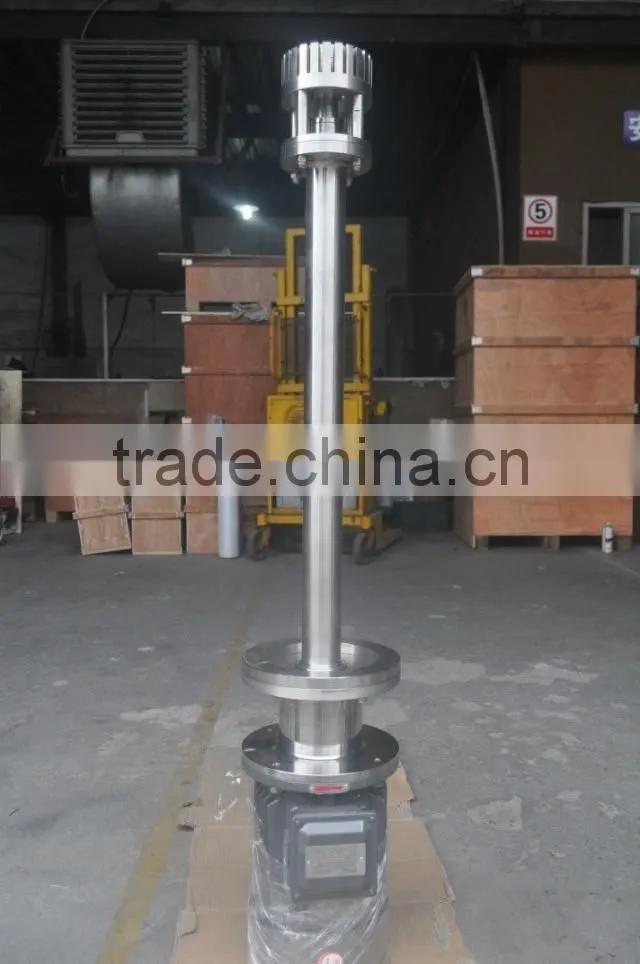

BRH4
Applicable range
1. Suitable for all kinds of large and small reaction kettle, uniform, fine on the common container, emulsification.
2. Small capacity of emulsion can be used for mobile lifting.
3. Widely applied in food, beverage, chemical, biochemical, petrochemical, pigments, dyes, paints, pharmaceuticals and other industries.
| Model | Capacity(L/H) | Power(kw) | Speed(rpm) |
| BRH80 | 5-40 | 1.1 | 2800 |
| BRH90 | 5-50 | 1.5 | 2800 |
| BRH100 | 50-100 | 2.2 | 2800 |
| BRH120 | 100-300 | 4 | 2800 |
| BRH140 | 200-800 | 7.5 | 2800 |
| BRH160 | 300-1000 | 11 | 2800 |
| BRH180 | 500-1500 | 18.5 | 2800 |
| BRH200 | 800-2000 | 22 | 1400 |
| BRH220 | 1000-3000 | 30 | 1400 |
| BRH240 | 1500-5000 | 37 | 1400 |
| BRH270 | 2000-8000 | 55 | 1400 |
| BRH290 | 3000-10000 | 75 | 1400 |
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
