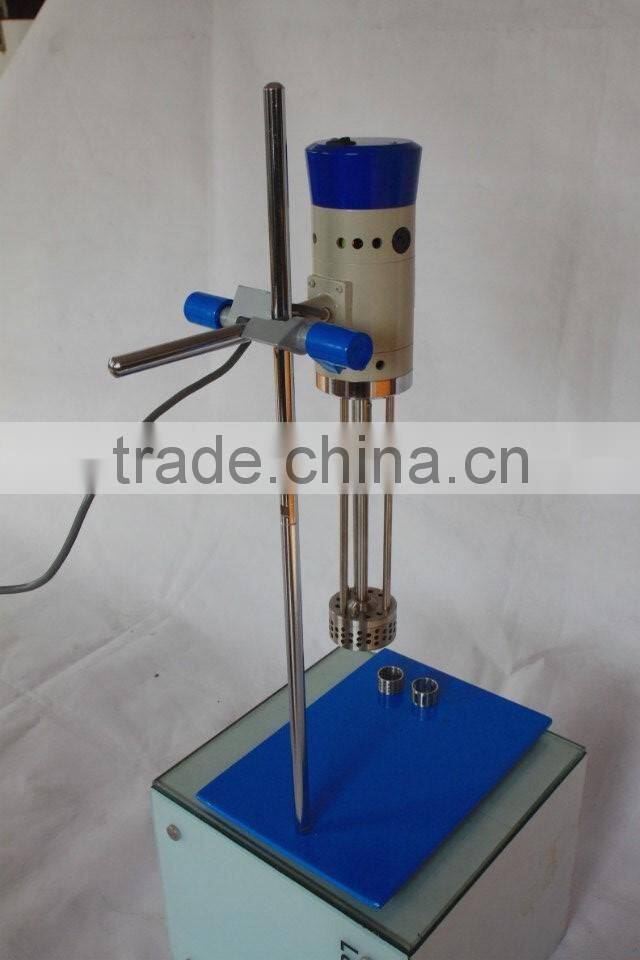

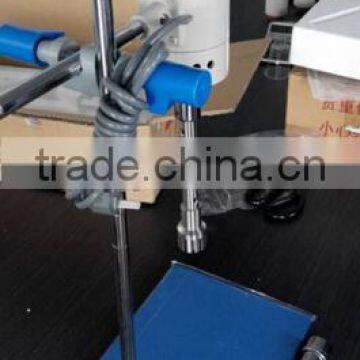

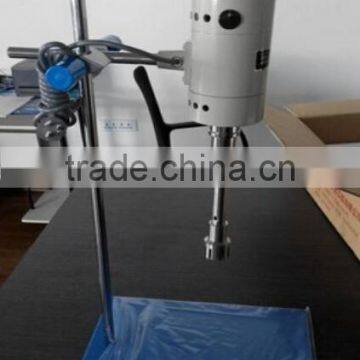

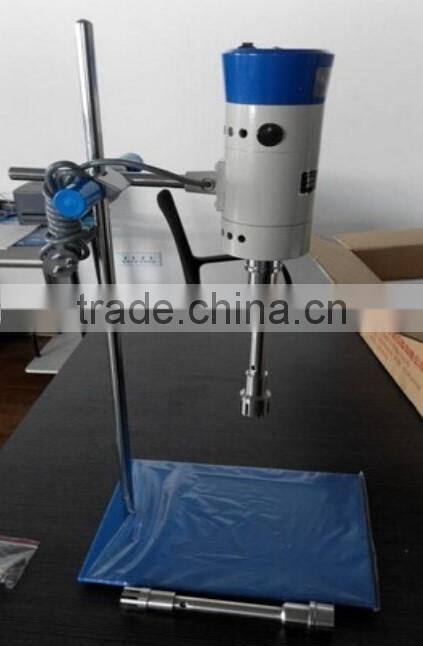

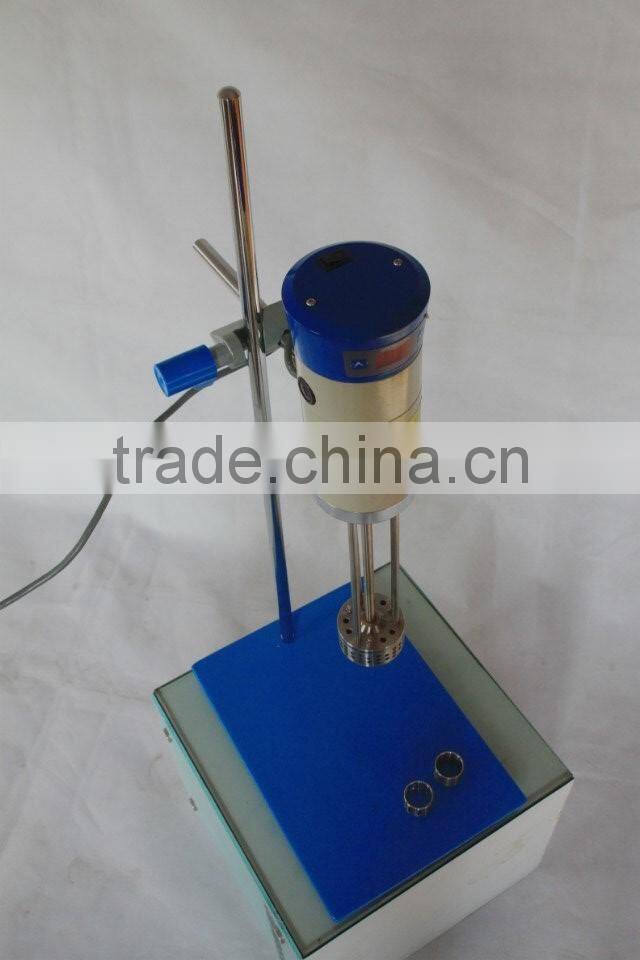

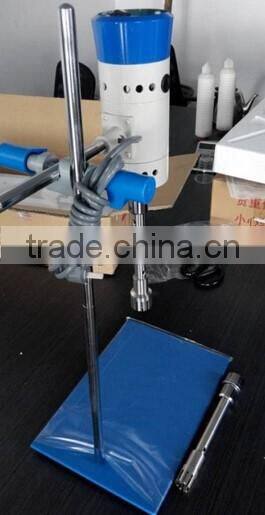

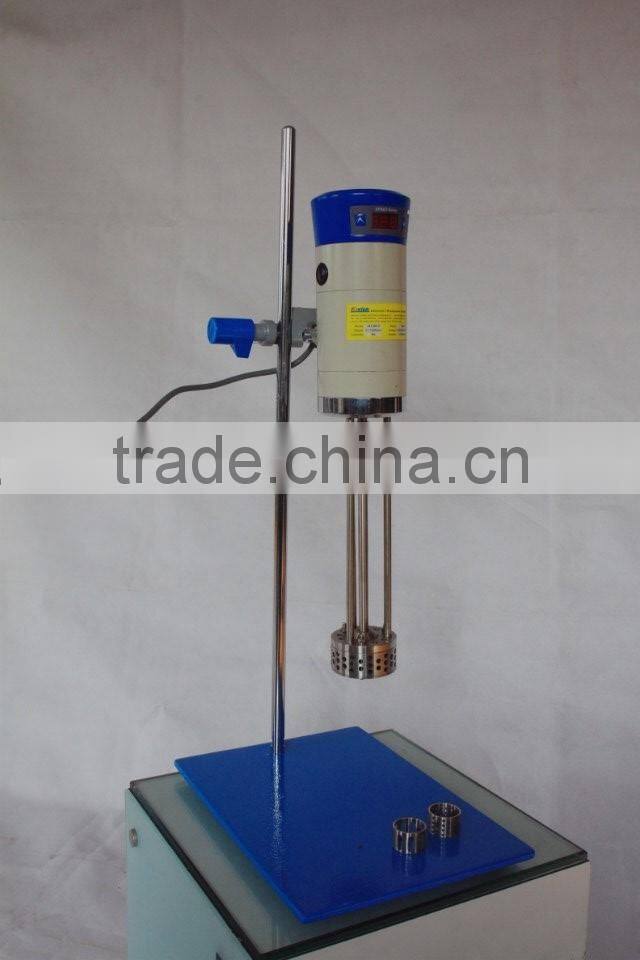

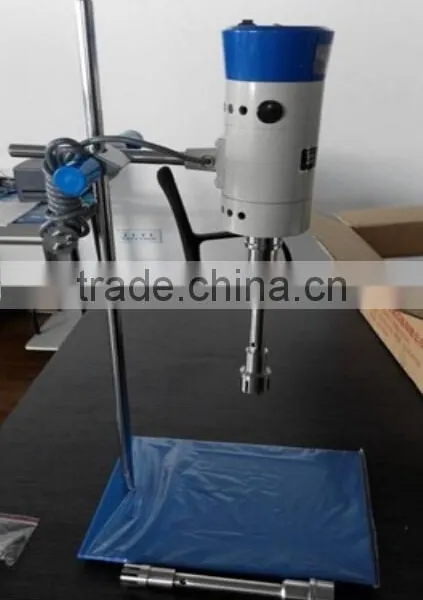

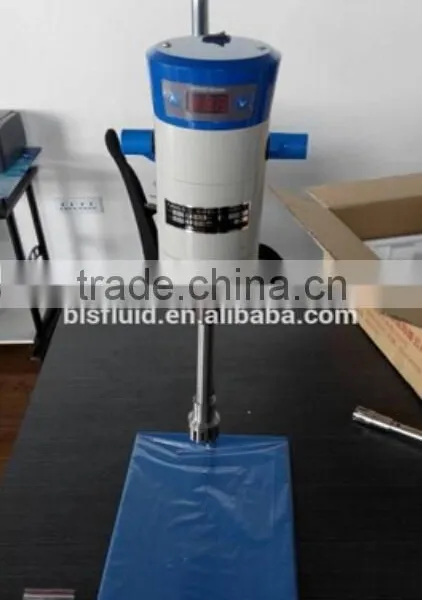

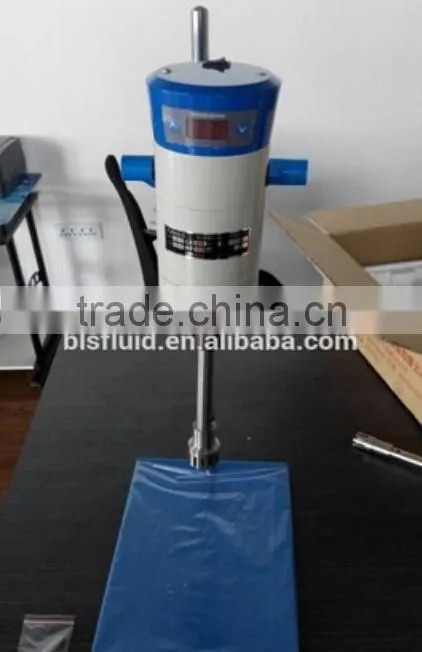

Help CenterLab Scale Emulsifying High Shear Mixers/laboratory Homogenizer
Related Products
-
Automatic Pneumactic High Shear Homogenizer/disperserUS$ 800 - 4,000MOQ: 1 Set -
Small Processing Capacity(3-40L) Lab Emulsifier MixerUS$ 300 - 1,500MOQ: 1 Unit
-
Laboratory Digital Display High Shear Emulsifier MixerUS$ 490 - 590MOQ: 1 Unit
-
Ss304 High Shear Homogenising Mixer for Creams From L&BUS$ 550 - 3,000MOQ: 1 Set
-
High Shear In-line Emulsifier/homogenizerUS$ 800 - 2,500MOQ: 1 Piece
1. Introduce:
This model laboratory high shear emulsifying machine is new development of high performance products. It has the function of mixing, stirring, emulsification, can be widely used in factories, scientific research institutions, colleges and universities and medical units in the experiment of liquid materials such as mixing, stirring, emulsification.
Production laboratory high shear emulsifying machine in biology, medicine, physics and chemistry, cosmetics, health products, food and other products development, experiment, and other fields has been widely used.
2. Working Principle:

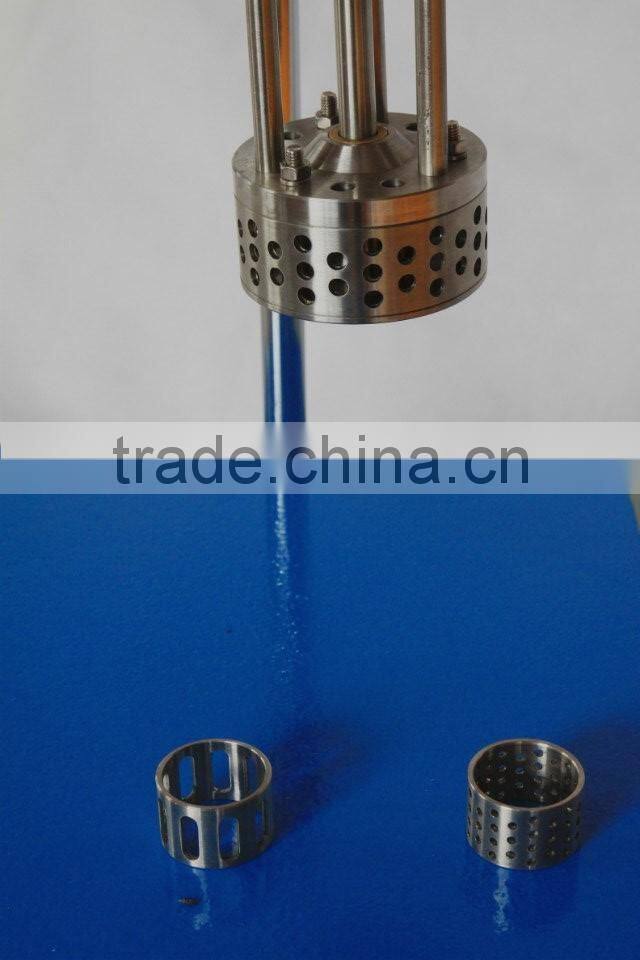

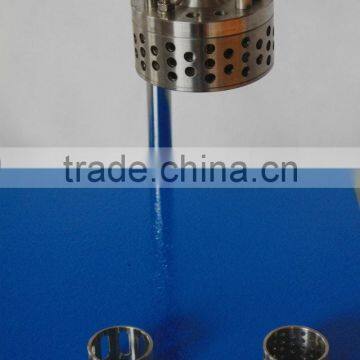

The machine of stir head rotor in motor driven by high speed, produce rotary line speed, together with the quiet of the rotor and stator in under the action of centrifugal force, powerful hydraulic shear and mechanical effect, make the fluid material under high-frequency mechanical effect of tens of thousands of times per minute, so as to achieve the result of mixing, stirring, emulsification.
Product model |
FJ200-S |
FJ300-S |
Electric power |
AC 220V 50HZ |
AC 220V 50HZ |
Input power |
340W |
510W |
Output power |
200W |
300W |
Working mode |
Intermittent |
Intermittent |
Range of speed (r/min) |
300-18000r/min |
300-12000r/min |

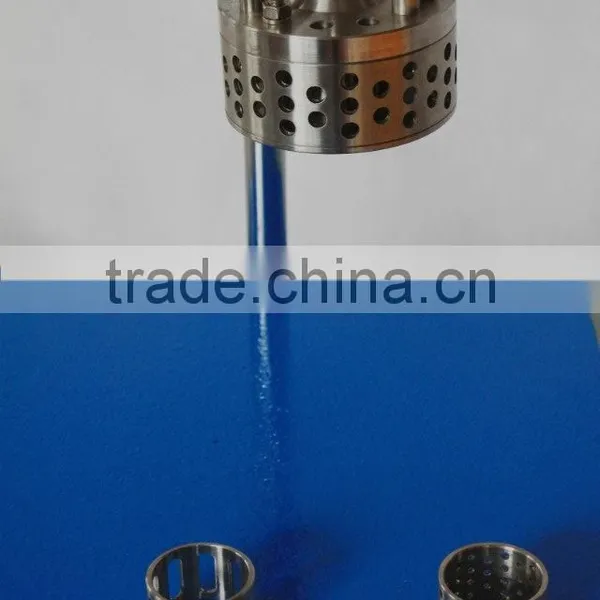

Specification of head (mm) |
Φ12mm Φ18mm |
Φ28mm Φ36mm |
Processing capacity (L) |
20~800ml |
2000~18000ml |
Overall size (mm) |
250 x 350 x 600mm |
250 x 350 x 720mm |
Product Model |
Electric Power |
Motor power |
Range of Speed |
Capacity |
JRJ300-S |
AC 220V 50HZ |
300W |
200-11000RPM |
3-40L |
FJ Series
JRJ300-S
