Home > Products > New Products > Uirobot kinetic lights

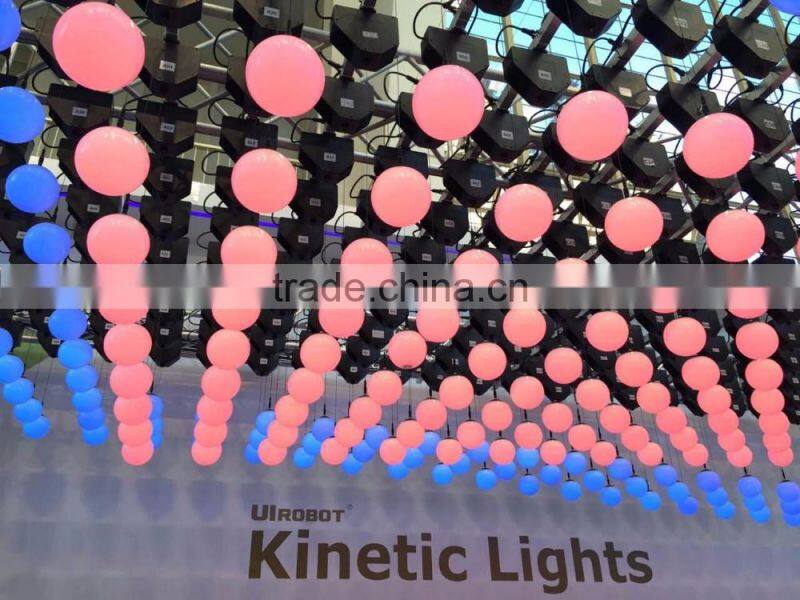

Uirobot kinetic lights
- shanghai
You May Like
Product Details
| LED Light Source | CREE | Type | Follow Spot Lights | |
| Input Voltage(V) | DC24V | Color Temperature(CCT) | Warm White | |
| Working Temperature(℃) | 0, 40 | Working Lifetime(Hour) | 5000 | |
| IP Rating | IP54 | Certification | BV, CCC, CE | |
| Brand Name | UIrobot | Model Number | UI | |
| Emitting Color | RGB |
Product Description
One unit of Uirobot kinetic lights is called integrated pellet drive control actuator
Characteristics:Distributed Control System
Low cost,high reliability
The world’s first dynamic pellet matrix without electric cabinet
Simple construction,four-wire control
Easy to maintain
Product Features
Miniature Integral Design
Size 100mm*120mm*170mm
Fit onto motors seamlessly
Die-cast aluminum enclosure
Motor Driver Characteristic
24V supply voltage
Full step to 16th micro-stepping resolution
Dual full H-bridge
Precise subdivision and current control
Load Bearing
Low speed 2-3Kg
High speed 1kg
Besides ball, the pensile object can be other shapes

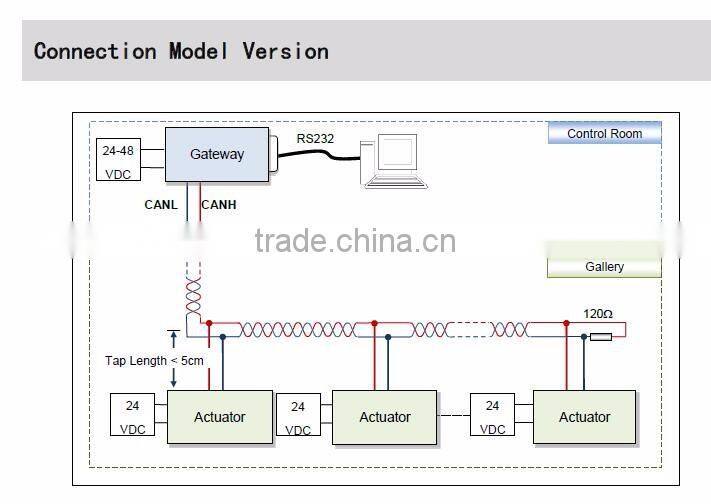

Communication Characteristic
Active CAN2.0,2-wire
Max 1Mbps operation,10Km communication distance
Max 100 nodes
Differential bus, high noise immunity
Embedded DSP Microprocessor
Hardware DSP, 64bit calculation precision
Support absolute encoder (incremental encoder is optional),closed loop control
PVT third curve interpolation
Non-synchronous error < 3 us(among 60 controllers)
User programmable, offline execution of user program
