Help CenterStep Motor Driver for Hybrid 2 Phase Unipolar Stepping Motor
Related Products
-
Stepper Motor Driver for Hybrid Two Phase Stepper MotorNegotiableMOQ: 5 Pieces -
CANBus Networking UIM24204-MSP Stepper ControllerUS$ 1 - 100MOQ: 1 Piece
-
CANBus Protocol UIM24204-MSP Stepper Motor ControllerUS$ 1 - 100MOQ: 1 Piece
-
RS232 to CAN Converter for UIRobot CAN Network Stepper Motor ControllerUS$ 1 - 100MOQ: 1 Piece
-
Easy Speed and Direction Control UIM24302 Smart Velocity Driver for Syrine PumpsUS$ 1 - 100MOQ: 10 Pieces
stepper driver
Features

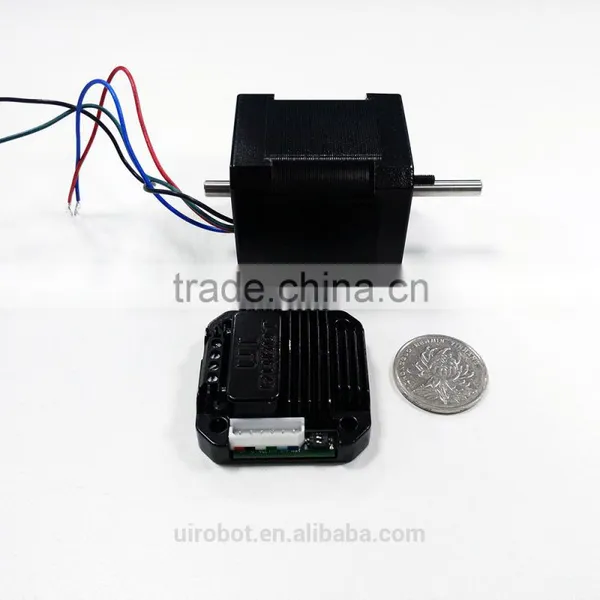

− Miniature size 42.3mm*42.3mm*13.5mm (L*W*H)
− Integrally designed to fit onto motors seamlessly, as well as work standalone
− Wide range input voltage 10-40VDC
− Max 2A / 4A / 8A adjustable output current
− 1 to 16th micro step resolution
− Automatic Current Reduction
− Dual full H-bridge with PWM constant current control
− Enable/shutdown input for power saving

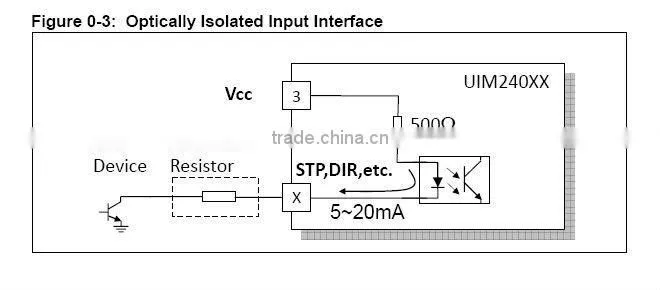

− Optoisolated inputs with common anode
− Die-cast aluminum enclosure, improve heat radiation and durability
Description

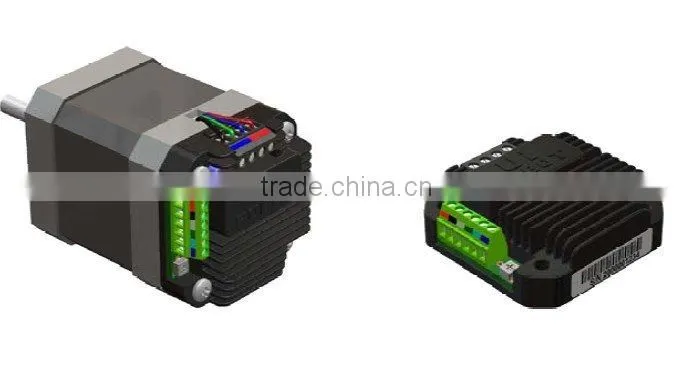

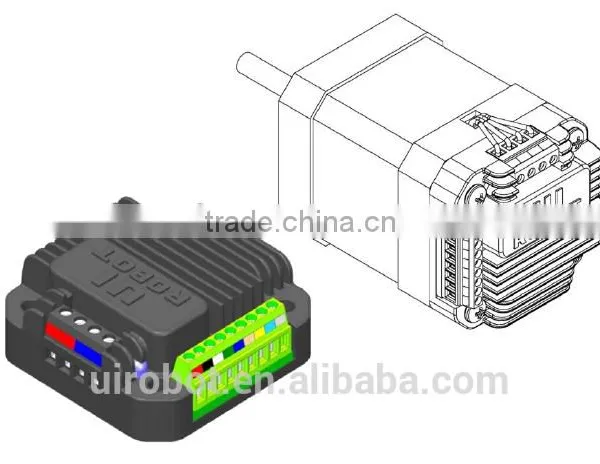

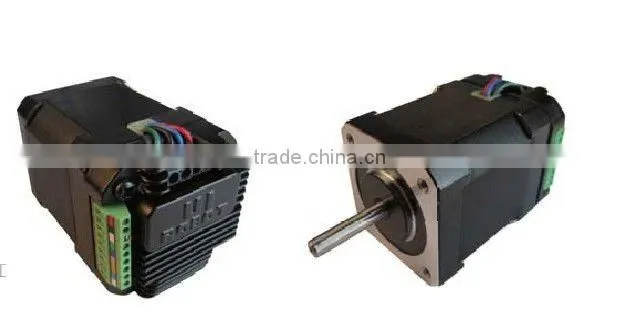

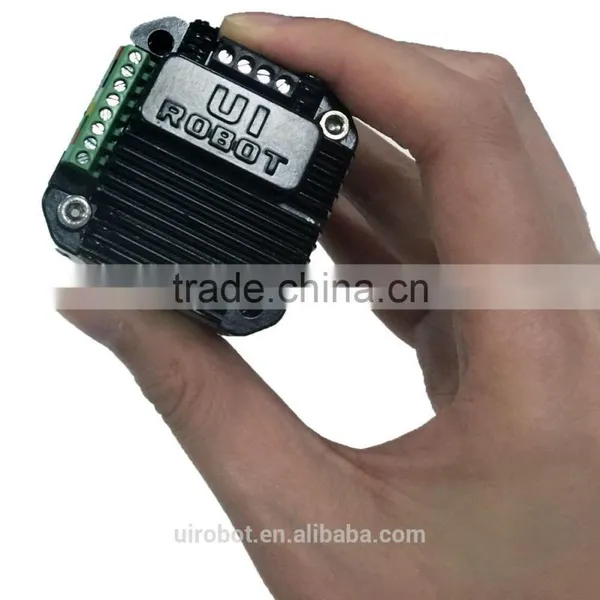

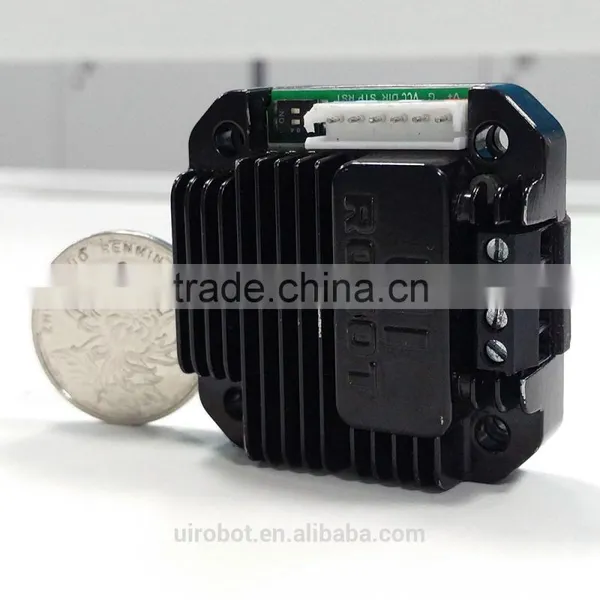

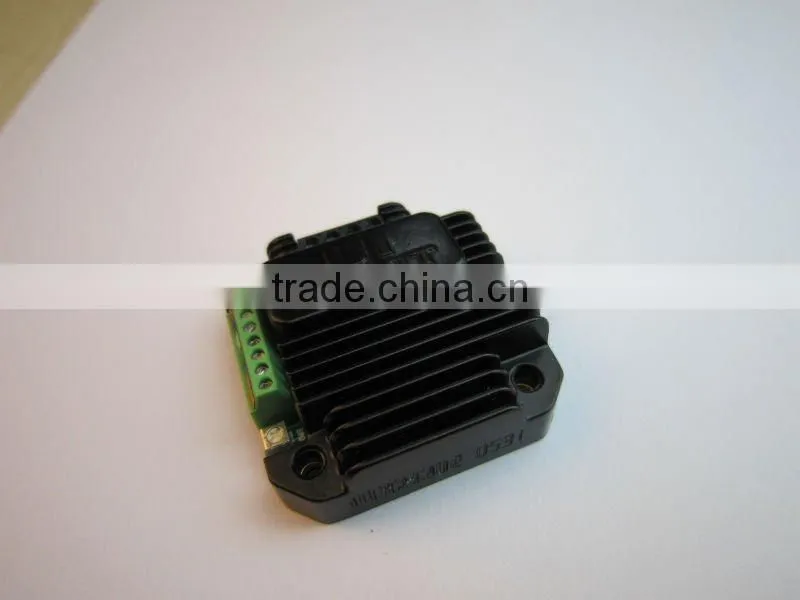

UIM240xx Miniature Stepper Motor Controller is a series of miniature, high performance
stepper motor controller. They can be mounted onto 42 / 57 / 86 / 110 series stepper motor
seamlessly through corresponding flanges. The thickness of these controllers is less than
14 mm. UIM24002 is capable to provide 0-2A adjustable current. UIM 24004 is capable for
1.6-4A adjustable current output and UIM24008 is capable for 2A-8A adjustable current
output. Their mixed-decay current control reduces the back-EMF effect under high motor
speed and improves the performance. Except that UIM24002 takes 10-35VDC input,
UIM240xx series controllers can work on 12 to 40VDC input. Enclosure is made of die-cast
aluminum which provides a rugged durable protection and improves the heat dissipation.
