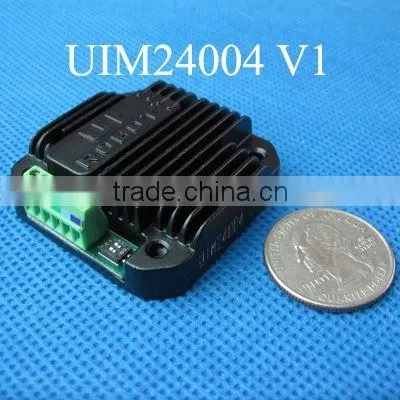

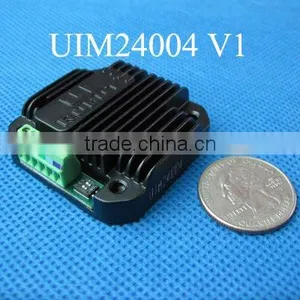

Nema17 size UIM24004 Version 1 two phase stepper motor driver

Specifications

UIM 24004 stepper motor driver
1.6-4A adjustable output current.
Miniature size 42.3mm*42.3mm*13.5mm

UIM 24004 stepper motor driver

1.6-4A adjustable output current.

Miniature size 42.3mm*42.3mm*13.5mm

Integrally designed to mount onto stepping motors seamlessly, as well as work standalone

12-40VDC supply, Max 4A adjustable output current

1to16th Micro-stepping

Dual H-bridge with PWM constant current control

Enable/shutdown controllable

Opto-isolated inputs with common anode

Die-cast aluminium enclosure provides a rugged durable protection and improves the heat dissipation.
