Home > Electrical & Electronics > Electric Motor > Stepper Motor > Cost Effective High Performance Nema23 4 Wires Hybrid Step Motor
Cost Effective High Performance Nema23 4 Wires Hybrid Step Motor
US$ 1 - 100
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
UIROBOT
Model Number:
UIM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UIM Stepper Motor ControllersUS$ 1 - 151MOQ: 10 Pieces -
UIM24302 Step Motor ControllerUS$ 1 - 151MOQ: 10 Pieces
-
UIROBOT UIM24302 Step Motor ControllerUS$ 1 - 151MOQ: 1 Piece
-
UIROBOT UIM24302-A Step Motor ControllersUS$ 90 - 180MOQ: 10 Pieces
-
UIROBOT UIM24302-B Step Motor ControllersUS$ 90 - 180MOQ: 10 Pieces
Place of Origin
Shanghai, China
Brand Name
UIROBOT
Model Number
UIM
Phase
2
Type
Hybrid
Certification
CE, ROHS
Step Angle(degrees)
1.8
Holding Torque
2 N.m
Current / Phase
2.8
Specifications
Step Motor:1. High torque hybrid bipolar or unipolar
2. Step motor angle 0.9 or 1.8 degree
3. 178 oz.in, 268 oz.in and more
Step Motor:
Step angle 0.9 degree or 1.8 degree high torque hybrid bipolar or unipolar step motor
1. High torque hybrid bipolar or unipolar step motor
2. Step angle 0.9 or 1.8 degree
3. 178 oz.in, 268 oz.in and more
Size 57mm High Torque Hybrid Step Motor Specifications:
|
Series Model
|
Step Angle (°) |
Motor Length (mm) |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Holding Torque (Kg.cm Min) |
Rotor Inertia (g.cm²) |
Lead Wire (NO.) |
Motor Weight (g) |
UIM57-a |
1.8 |
51 |
1 |
5.8 |
17 |
9 |
190 |
4 |
560 |
UIM57-b |
1.8 |
56 |
2.8 |
0.9 |
2.5 |
12.6 |
300 |
4 |
700 |
UIM57-c |
1.8 |
76 |
2.8 |
1.13 |
3.6 |
18.9 |
480 |
4 |
1000 |
UIM57-d |
1.8 |
115 |
2.8 |
2.1 |
10 |
30 |
650 |
4 |
1800 |

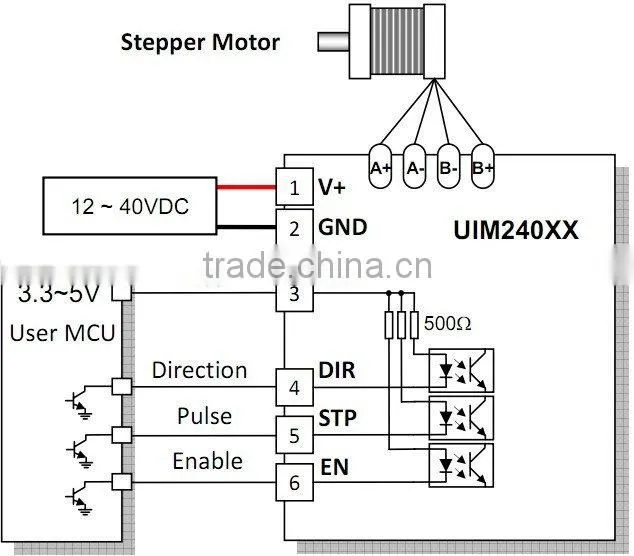

Step Motor integrated with UIM step driver
