DC Stepper Integrated Motor NEMA17 42mm
- 5000 Piece / Pieces per Month
- shanghai
- Credit Card
-
1.8 degree 42mm hybrid stepper motor 1.7ohm 1.8A nema17 motor
-
10mm micro slider motor 3.7V linear actuator screw slider stepper motor
-
3 Phase 42mm 1.2 Degree Stepper Motor High Torque Stepper Motor
-
Nema 52 130mm Hybrid Stepper Motor High Torque
-
Nema42 30Nm 110mm Frame Size 2 Phase Hybrid Stepper Motor
-
85mm 2 Phase Hybrid Stepper Motor Nema 34 Engraving Machine
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | UIROBOT | Model Number: | UIM42-A |
| Phase: | 2 | Type: | Hybrid | Certification: | CE, ROHS |
| Step Angle(degrees): | 1.8 deg, 0.9 deg. | Holding Torque: | 0.3 N.m.--1.2 N.m | Current / Phase: | 0-8A |
Product Description

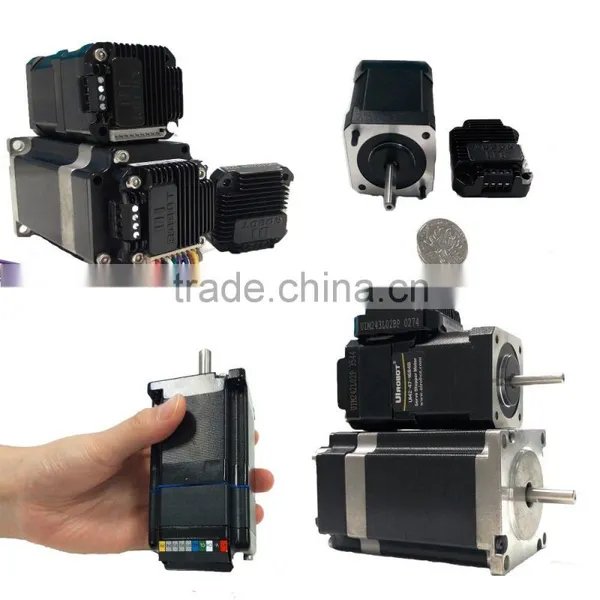

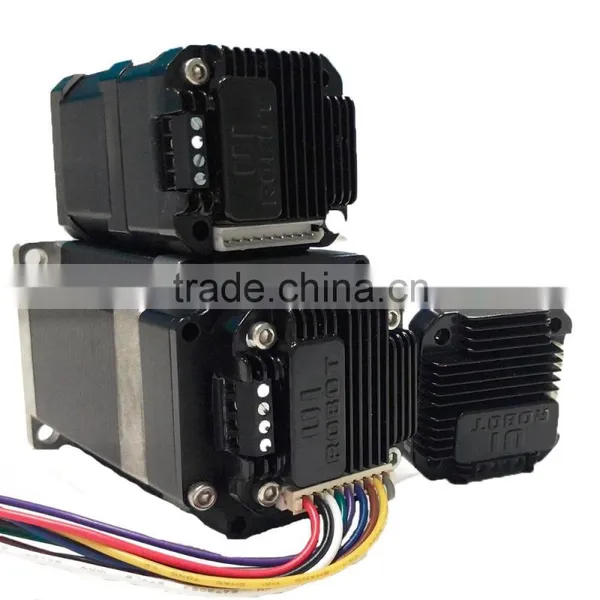

NEMA17 stepper motor with controller
motor specifications:
Model NO. | phase | Step angle | Rated voltage | Current /phase | Resistance /phase | Inductance /phase | Holding toraue | Rotor inertia | weight |
| Deg. /step |
V |
A |
ohms |
mH |
g.cm |
g.cm2 |
Kg | |
UI42STH38-0804A-S |
2 |
1.8 |
8.0 |
0.8 |
10 |
17 |
3200 |
57 |
0.24 |
Model NO. | phase | Step angle | Rated voltage | Current /phase | Resistance /phase | Inductance /phase | Holding toraue | Rotor inertia | weight |
| Deg. /step |
V |
A |
ohms |
mH |
Kg.cm |
g.cm2 |
Kg | |
UI42STH47-1684A-S |
2 |
1.8 |
2.8 |
1.68 |
1.7 |
2.8 |
4.4 |
68 |
0.35 |
Model NO. | phase | Step angle | Current /phase | Resistance /phase | Inductance /phase | Holding toraue | Rotor inertia | weight | Lead wire |
| Deg. /step |
A |
ohms |
mH |
Kg.cm |
g.cm2 |
Kg |
N0. | |
UI42STH48-1204A-S |
2 |
0.9 |
1.2 |
3.2 |
4.4 |
4.4 |
68 |
0.36 |
4 |
Frame 42mm/NEMA17 stepper motors with different Holding Torques for your applications.

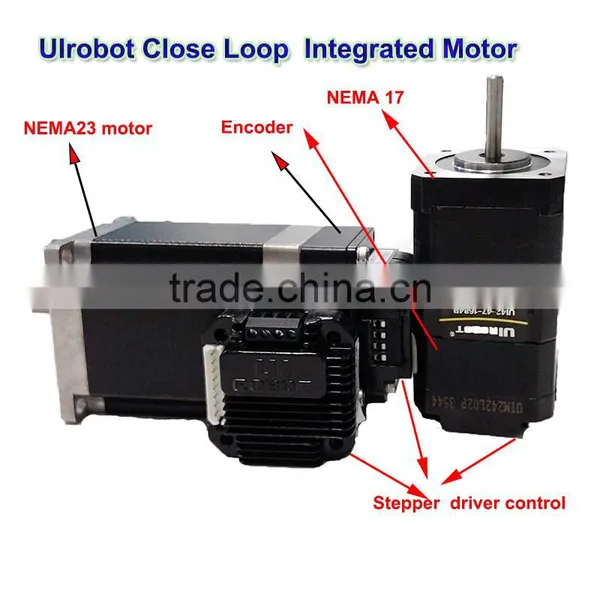

UIM242 stepper controller is a microprocessor embedded single axis motion controller with an integrated bipolar stepper motor drive working standalone or integrally on stepper motor for networking. Through one CAN/RS232 Converter you can control upto 100 of this integrated stepper motors with motion controllers by one PC synchronously or individually. An on-board bipolar ‘chopper’ stepper drive is provided capable of driving motors up to 4 per phase in both full, half, fourth and sixteenth micro stepping modes.
You could also use the Parallel port UIM240 stepper driver and Serial port UIM241 steppercontroller for an integrated stepper motor.
