Help CenterFactory Direct Supply R Pin for Sale
US$ 0.004 - 0.056
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Jiangnan
Model Number:
JN-320
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
Jiangnan
Model Number
JN-320
Style
Other, Clip
Load Type
Torsion
Material
Steel
Usage
Industrial

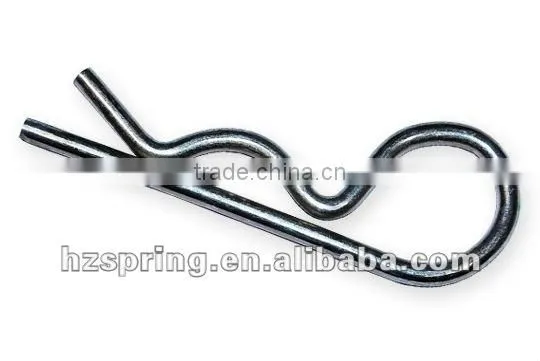

R Pin
We make this in two styles, one is single coil, the other is double coil, the single coil for most applications and the double coil for more demanding use.
1. Specifications:
Type |
Diameter d |
Dimension H |
Overall Length L |
Recommended Hole Diameter |
Range of Shaft Diameter |
Single Coil |
1.2 |
2 |
22 |
1.5 |
5 - 8 |
1.6 |
2 |
25 |
2.0 |
6 - 10 |
|
1.8 |
2.5 |
36 |
2.2 |
8 - 13 |
|
2 |
5 |
48 |
2.5 |
15 - 25 |
|
2 |
3 |
56 |
2.5 |
9 - 14 |
|
2.5 |
4 |
48 |
3.0 |
9 - 14 |
|
2.5 |
5.5 |
72 |
3.0 |
16 - 27 |
|
3 |
4.5 |
72 |
3.5 |
10 - 20 |
|
4 |
6.5 |
76 |
4.5 |
16 - 25 |
|
4.5 |
7 |
90 |
5.0 |
20 - 30 |
|
5 |
7 |
102 |
5.5 |
20 - 35 |
|
6 |
8 |
124 |
7.0 |
28 - 40 |
|
7 |
10 |
124 |
8.0 |
28 - 45 |
|
8 |
11 |
128 |
9.0 |
30 - 45 |
|
|
|
||||
Double Coil |
2 |
4 |
56 |
2.5 |
8 - 14 |
3 |
5 |
72 |
3.5 |
14 - 20 |
|
4 |
6 |
92 |
4.5 |
17 - 24 |
|
5 |
6 |
108 |
5.5 |
18 - 30 |
|
6 |
8 |
138 |
6.5 |
24 - 36 |
|
7 |
9 |
148 |
8.0 |
26 - 40 |
|
8 |
8 |
149 |
9.0 |
24 - 40 |
|
Material: Spring Steel, Stainless Steel, Carbon Steel | |||||
Surface: Zinc Plating, Nickel Plating | |||||
All dimensions are in mm | |||||

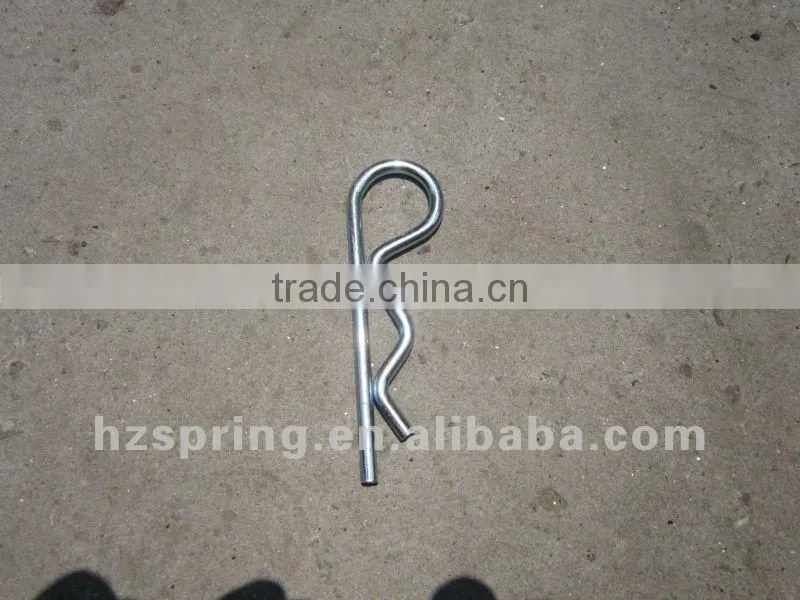

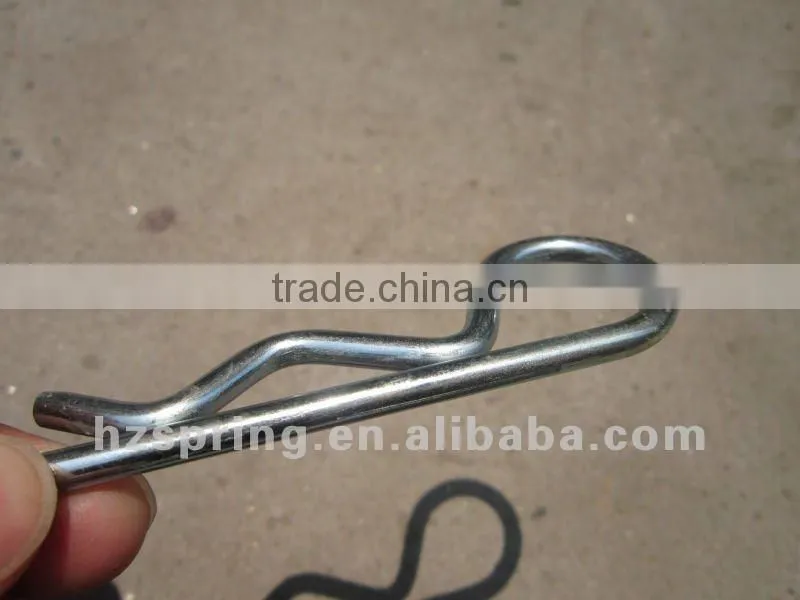

2. Photos:
Send Inquiry to This Supplier
6Yrs
Business Type
Manufacturer
Year Established
1997
Factory Size
10,000-30,000 square meters
Total Employees
Fewer than 5 People
