Help CenterPortable Ultrasonic Digital Cable Height Tester 3~23m Smart Sensor 6 Cables Measurement
Related Products
-
Portable Water Resistant Digital Foldable Needle Thermometer/ Made in TaiwanNegotiableMOQ: 100 Pieces -
Digital USB / RS485 Wall Mount / Desktop Temperature Relative Humidity (RH) DP WB WBGT HI Logger Made in TaiwanNegotiableMOQ: 100 Pieces
-
Made in Taiwan/ TEMP.RH Function /Portable USB Integrated Thermo-Hygro-AnemometerNegotiableMOQ: 100 Pieces
-
Dew Point Temp. (DP) Wet Bulb Temp.(WB) Function Made in Taiwan Digital USB Hand Held Thermo-HygrometerNegotiableMOQ: 100 Pieces
-
Handheld Foldable Needle Type Thermometer w/ Air Temperature Hi/Lo Alarm Made in TaiwanNegotiableMOQ: 100 Pieces
Specifications

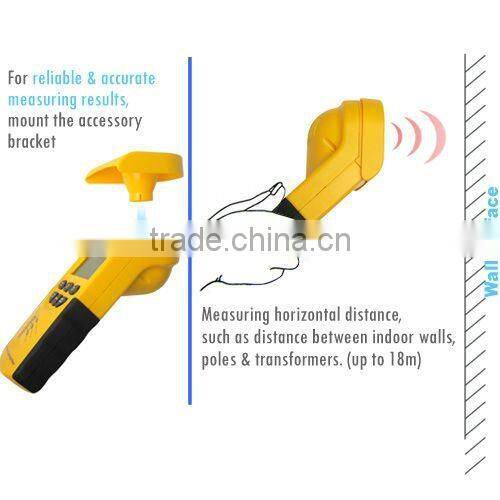

Ultrasonic Cable Height Meter Wide measuring range 3~23m (height) 3~18m (plane) with Measuring Accuracy of 0.5% +/- 2dThis Ultrasonic Cable Height Meter is very convenient to use and very easy to operate as well, a circuit maintenance can make measurement of cable height and wire to wire distance anytime and anywhere without the need to touch the electric high cable. It has Horizontal Bracket that can be used for horizontal distance measurement which eliminates narrow space interference and enhances measuring accuracy. Measures cable height as well as indoor distance or other distance between objects.

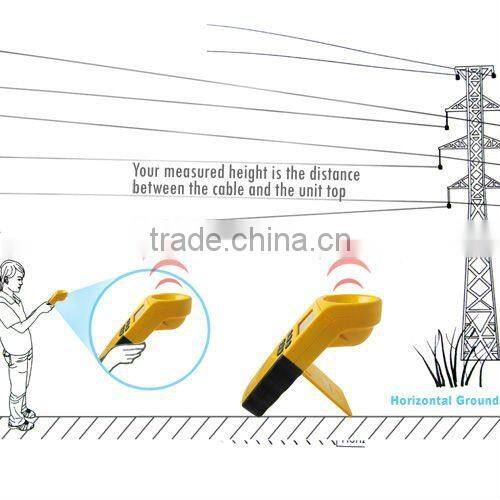

It can measure a total of 6 cables height in 1 time measurement, giving you the height of each cable. It can also measure the distance between cables. It can measure either while you are holding the meter or while the meter is on a flat ground.
It comes with automatic temperature compensation, automatically compensates or adjust the temperature value according to ambient environment after every power on to ensure accurate measuring on different temperature conditions all the time.
How it Works:
This product uses ultrasonic principle to measure cable height. When measuring, it transmits ultrasonic signal by 15° angle towards the wires and measuring the time it takes to pick-up the echo from the signal.
Typical Measurement Applications: Electrical, Forestry, Industrial, Mining, Overhead cables, Tree branches, Elevator shafts, Depth of Wells.Used in electric power, telecommunications transmission cable measurement, electric locomotive power cable and trolley buses, large industrial enterprise, power transmission and transformation transmission cable, wire measurement,in construction site, tower level and height measurement.
Features
- Measure height of up to 6 cables at a time
- Wide measuring range: 3~23m (height) 3~18m (plane)
- Convenient to take measurement & easy to read results
- Easy to aim at measuring position
- Suitable to different cables

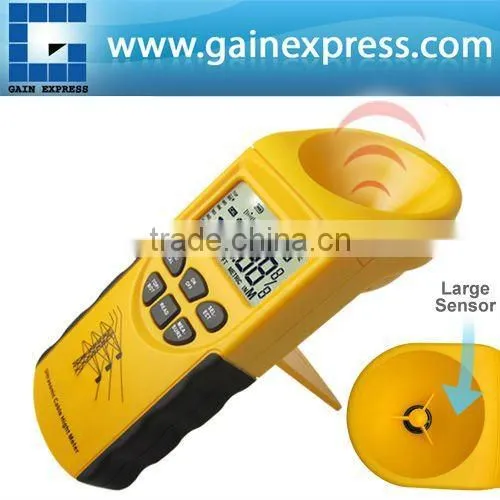

- Large measuring sensor, offers higher accuracy than the other meters in the market today
- Compact and easy to carry
- Best in measuring dimension of house and distance between objects
- Battery operated with backlight
- Imperial & metric unit transition
- Display real-time temperature

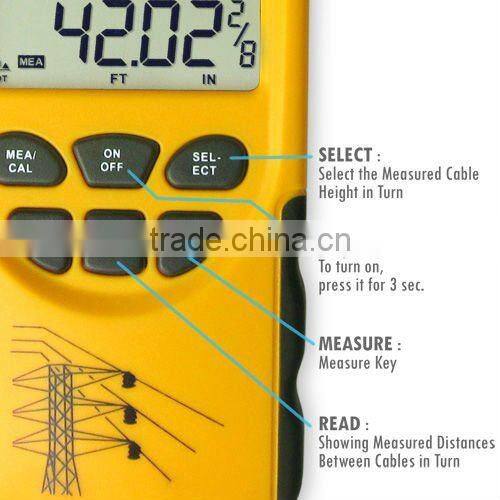

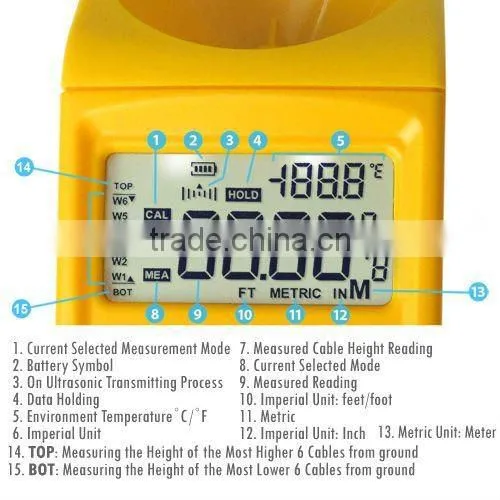

- With data hold and ultrasonic transmission process indicator
Specifications

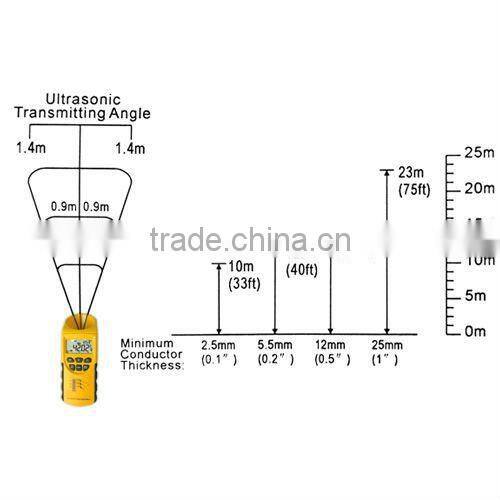

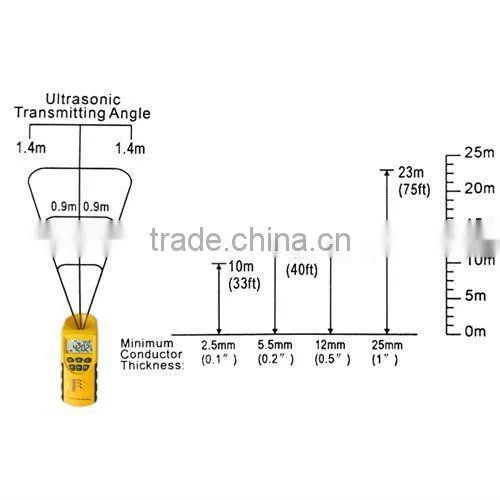

- Cable Height Measuring Range
- 25mm cable min: 3-23m
- 12mm cable min: 3-15m
- 5.5mm cable min: 3-12m
- 2.5mm cable min: 3-10m
- Horizontal Measuring Range: 3-18m
- Resolution Range
- less than 10m: 5mm
- more than 10m: 10mm
- Measuring Accuracy: 0.5% ± 2d
- Minimum gap between the wires: 150mm
- Auto power off delay: 120s
- Low battery alarm: 7.2V ±0.2V
- Ultrasonic Transmitting angle: 1.4m

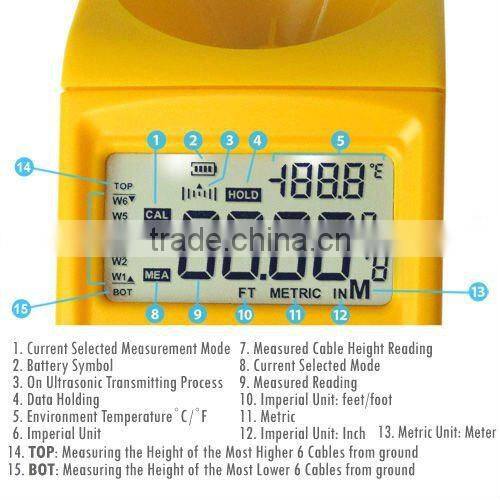

- BOT Mode: measuring the height of the most lower 6 cables from the ground
- TOP Mode: measuring the height of the most higher 6 cables from the ground
- Units: ft / inch / m (distance) , °F / °C (temperature)
- Operating Temperature Range: -10°C-40°C

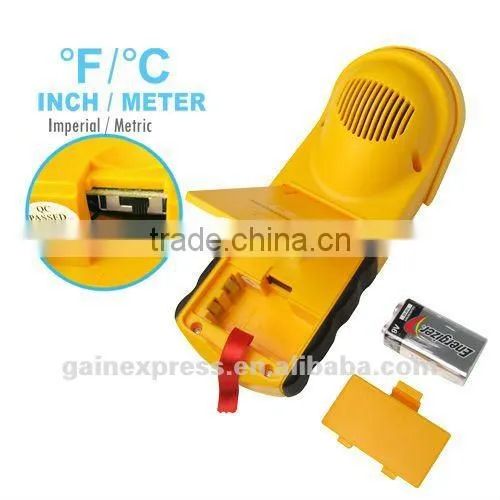

- Operating Voltage: 1 x 9V 6F22 Battery (included)
- Dimension: 75 x 72 x 200mm
- Weight (main unit with accessory bracket): 205g (excluding battery)
- Battery Life: 20H (continuous use)

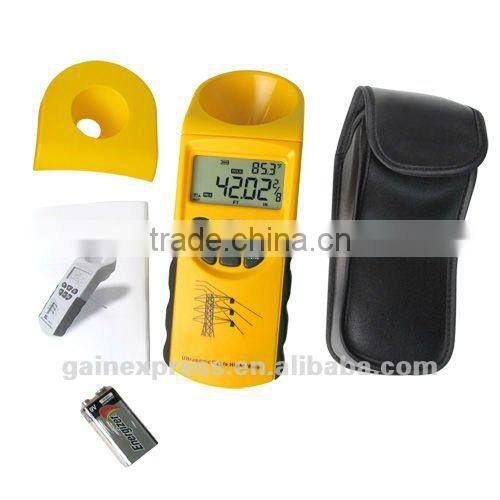

Set Includes

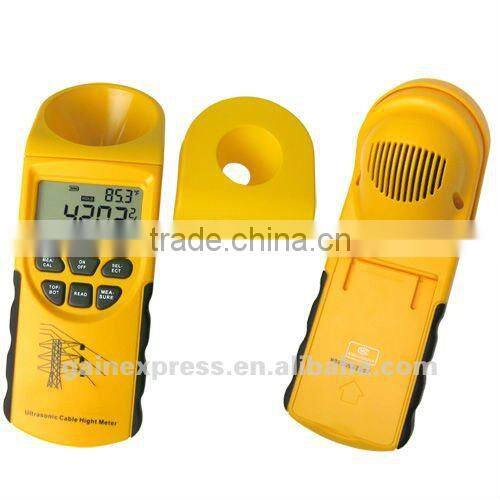

- 1 x Ultrasonic Cable Height Meter
- 1 x Instruction Manual

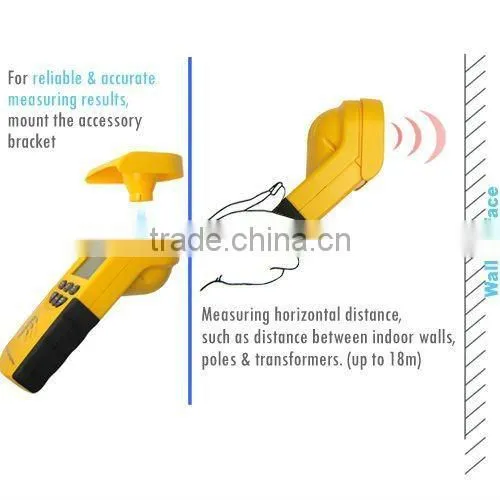

- 1 x Accessory Bracket (Horizontal Distance Measurement Only)
- 1 x Portable Soft Black Pouch

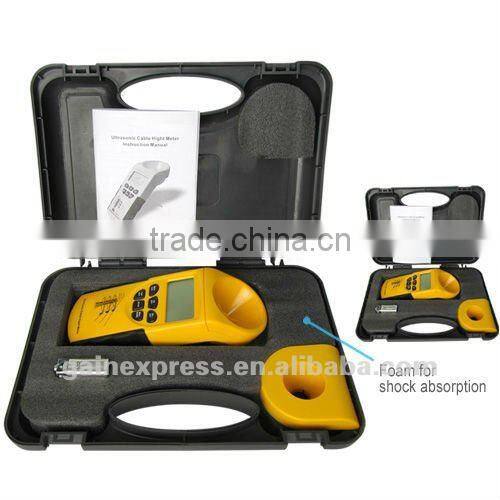

- 1 x Shock Absorbent Hard Carrying Case
- 1 x 9V Alkaline Batter
