2.4 LCD Portable Video Inspection Endoscope 5mm Camera 1m Cable Borescope Snake Scope
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
C05VID-099_1M_5mm
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2.4 LCD Portable Video Inspection Endoscope 5.5mm Camera 1m CableNegotiableMOQ: 1 Piece -
Industrial Endoscope 3.9mm Camera Video Inspection Pipe Borescope 180 Degree Rotation SnakeScopeNegotiableMOQ: 1
-
3.5" Detachable LCD Video Inspection 8.2mm Camera Borescope Endoscope Snake Scope + 5M Flexible Tube + 2GB MicroSD CardNegotiableMOQ: 1
-
Handheld Non-Contact 12:1 DS IR Laser Infrared Digital Thermometer With Laser Target PointerNegotiableMOQ: 1
-
100% Wireless 4M Cable Video Inspection WiFi Snake Scope Borescope Endoscope 9.8mm Waterproof Camera Support Android IPad IPhoneNegotiableMOQ: 1
Model Number
C05VID-099_1M_5mm
Sensor
CMOS
Special Features
Waterproof / Weatherproof
Type
Other, Borescope / Endoscope / Video Inspection Camera

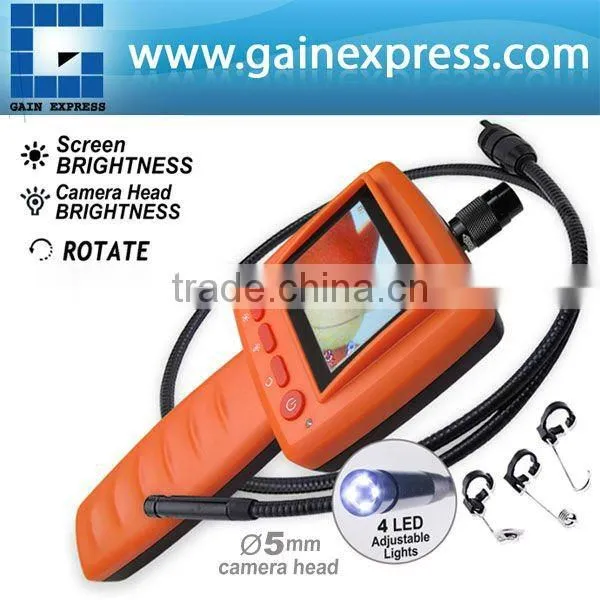

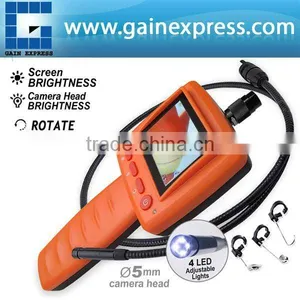

This Inspection Camera allows you to inspect hard-to-reach areas. It comes w/ 2.4" TFT LCD monitor for easy reading. The LED light source allows adjustable illumination for easy finding & diagnosis. It has 90°, 180°, 270° & 360° rotation capabilities & LCD screen can be brighten according to user's preference.
It has horizontal viewing angle of the camera 54°. You can inspect under water w/ waterproof 5mm camera head (IP67 rate waterproof level).
The Standard Flexible 1m (3.3ft) Cable allows you explore & discover conveniently. You can make your cable much longer by adding more Extension Cables allowing you to extend the vision of inspection point without using the high quality display..
Features:
- Image can be rotated to 90°, 180°, 270° and 360°
- LCD brightness can be controlled
- Function: Allows visual inspection on hard-to-reach areas
- 4 adjustable LED design for easily find, diagnose
- Lens and flexible tube with waterproof and IP67 design
- 5mm camera head diameter
- Extend deeper or wider via the optional 1m Extension Cable
- With View angle is 54°
- With 320 x 240 Total Pixels
- Tube Length: 880mm
- Total Length: 970mm
- 6.8mm outer tube diameter
- Useful accessories: mirror, hook and magnet
- Small but very useful, handle design fit for fingers
- Lightweight design
Specifications:
- Main Unit:
- Display: 2.4" TFT LCD monitor with adjustable brightness
- Photo Format: JPEG
- Working Temperature Range: -20 ~ 60°
- Storage Temperature Range: 0 ~ 40°
- Power Supply: 4 x AA 1.5 Batteries (not included)
- Dimension: 85 x 251x 38mm (W x H x Thickness)
- Weight
- Main Unit: 160g (battery excluded)
- Main Unit with 1m Cable: 320g (battery excluded)
-
Camera
- Camera Head Diameter: 5mm
- Imaging Sensor: Optical format CMOS
- Total Pixels: 320 x 240
- Exposure: 30 ~ 80mm
- Auto White Balance: automatic
- Distortion: < 3.7%
- Power Consumption: 3~5W (active)
- Housing Material: Aluminum
- Field of View: 54°
-
Tube
- Outer Diameter : 6.8mm
- Length: 1m
- Waterproof Capacity: IP67 (camera head & tube only)
-
Light Source
- Number of Lamps: 4
- Weight: 8g
- Brightness Control: Manual
- Lamp Type: LED
- Minimum Illumination: 0 Lux
- Lamp Life: 8000hrs., median
- Operating Environment
- Tip Operating Temperature: -20~60°C (-4~140°F)
- Storage Temperature: -20~70°C (-4~158°F)
- Relative Humidity: 95%RH max
- Hazardous Environment: Not rated for use in hazardous environments
Set Includes:
- 1 x 2.4" TFT Colored LCD Inspection Camera
- 1 x 1m Flexible Tube with 5mm Diameter Waterproof Camera Head
- 1 x Magnet Tip
- 1 x Hook Tip
- 1 x Mirror Tip
- 1 x Tiny Screw
- 1 x English Instruction Manual
- 1 x Standard Packaging Gift Box
-
Optional Items (not included in set):
Please inform us if you want any of the following optional items to be included in your order.- Extension Cable
