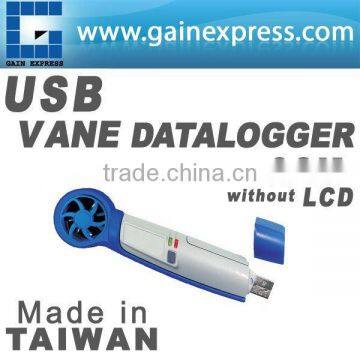

USB Mini Vane Wind Speed NO LCD Datalogger 32K Memory with DP / WB / HI / WBGT Function Made in Taiwan

Applications:

Used for unattended weather station recording Process monitoring for maintenance and troubleshooting applications.Environmental monitoring in storage warehouse, recording during transportation, HVAC (Heat Ventilation Air-Conditioning & Refrigeration ) purposes

And  It complies with all essential health and safety requirements set out in European Directives (CE marking). Plus,all parts are made and manufactured in Taiwan.

Features:

• USB datalogger shape with NEW DESIGN patent
• Smart logger with tripod receptacle and wrist strip for long time recording and fix on the wall
• The only USB logger records not only wind speed but also Ambient temperature and humidity by selecting from software.
• USB cap protects USB male port while datalogging
• NO LCD display
• LED(Red,Green) Bright RED warns user to do necessary action
• Self-replace vane by pushing mortise device no patent infringement concerned.
• Button Start/Stop, Wrist strip hole,Tripod mount
• Made in Taiwan

Specifications:

• Sample interval : 10s.1m.5m.30m.1hr.2 hr .6hr.12hr.24hr
• Hi/Lo threshold setting
• Logger mode : Key start/stop , Program start date and time , ID . Data rollover or  stop when memory is full
• Temperature
  • Range : -40.0~85.0°C (-40~185°F)
  • Accuracy : +/-0.6°C(-20~50°C),others+/-1.2°C
• Function:
  • Dew Point Temp.,(DP)
  • Wet Bulb Temp.,(WB)
  • Heat Index (HI)
  • Wet Bulb Global Temp.,(WBGT)
• Relative Humidity %
  • Range : 0.1%RH~99.9%RH
  • Accuracy : +/-3%RH(at 25°C,10~90%RH,others+/-5%RH)
• Wind speed in m/s ft/m : 0.01~25.0m/s (19.7~4920ftm)
  • Accuracy : +/-3% of rdg+/-1% FS
• Memory Capacity : 32000
  • Temperature : 10667
  • Relative Humidity : 10667
  • Others : 10667
• Power : 3.6 Lithium battery
• Operating Temp.RH : 0~50°C(32~122°F)  , <80%RH
• Logger size : 154 x 38.5x21.4 (with cap ) mm

Set Includes :

• 1 x USB Mini Vane Wind Speed Datalogger w/o LCD
• 1 x Battery
• 1 x Operation Manual
• 1 x Wrist Strip
• 1 x CD software
