Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor

Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor thumbnail-1
Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor thumbnail-2
Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor thumbnail-3
Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor thumbnail-4
Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor thumbnail-5
Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor thumbnail-6
Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor photo-1
Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor photo-2
Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor photo-3
Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor photo-4
Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor photo-5

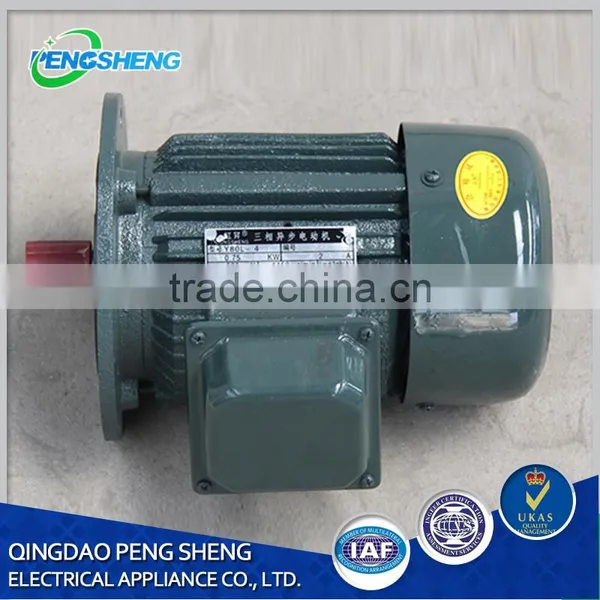

Low Cost Y Series (IP44) Three Phase Asynchronous Electric Fan Motor Universal Electric Fan Motor photo-6
US$ 10 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PengSheng
Model Number:
Y-Serise
Type:
Asynchronous Motor
Contact Supplier Request Quote Chat Now
Qingdao Peng Sheng Electrical Appliance Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PengSheng
Model Number Y-Serise
Type Asynchronous Motor
Frequency 1390-2950r/min
Output Power 75-99%
Protect Feature Explosion-proof
Phase Three-phase
Certification Other, ISO9001
AC Voltage Other, 120-880V
Place of Origin Shandong, China
Efficiency IE 3

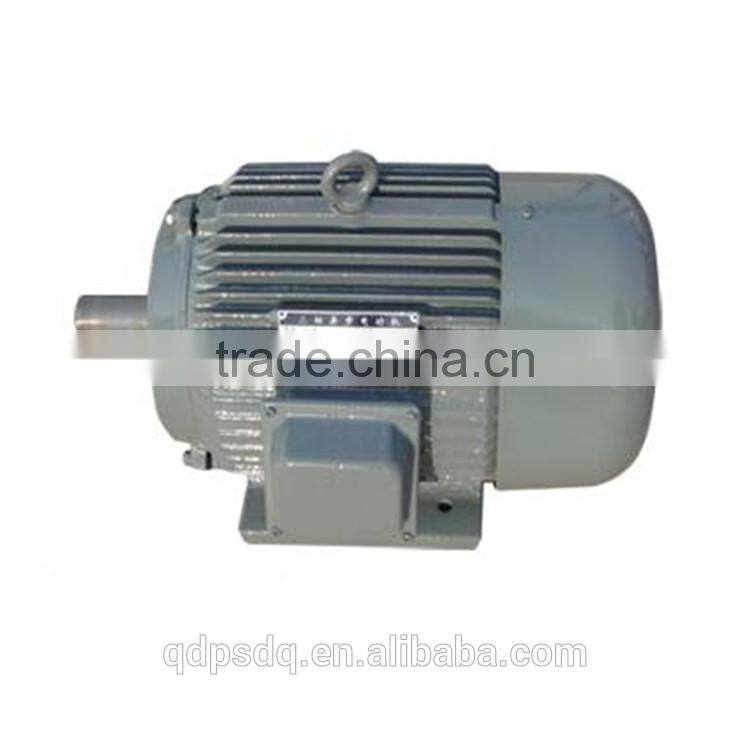

Low cost Y series (IP44) three phase asynchronous electric fan motor universal electric fan motor

  • Features and application
Y series motor used polygon structure so that the using rate of the stators inner space is very high. The magnet yoke is laminated style, suitable for silicon controlled commutate power supply and it can endure pulsating current and rapid change of current (load change).Magnetic poles are fixed by precise orientation. All the motors of system are with compensate winding, so the reverse performance is very well.
The insulation class of the motor is F, using of reliable insulation structure and nonmenstruum vacuum pressure impregnated, guaranteeing the stable performance of insulation and good heat dissipation.
  •  Performance
1.Data listed in the technical data sheet should be employed under the following conditions:     a) Altitude above sea level maximal1,000m;     b) Cooling air temperature maximal 40oC; Cooling water temperature   maximal 32oC;     c) The motor can be installed under foul situation, but the right cooling   method of cooling method of cooling and defend class must be chosen. If the situation is special, need humid tropic, please negotiate.     d) The motor is suitable for 3-phase bridge style smoothing reactor, also can adopt power supply of DC generator.     e) The motor accord with GB755 The ration and performance of the   rotating electrical machinery, IEC60034-1 The ration and performance of the rotating electrical machinery and JB/T9577 Technical requirements of Z series middle motor electromotor; 2. The standard rated voltage of the electromotor are 440V, 550V, 660V, 750V etc. Voltage of other classes can also be derived according specific situation, but must be negotiated when ordering. 3. The basic excitation style is separately excited, the excited voltage is 220V, Voltage of other classes can also be derived according specific situation, but must be negotiated when ordering. 4. Short time overload capacity of motor.     Motor can be divided into two kinds according to the use     First kind (A): ordinary industrial DC motor; Second kind (B): metal rolling mill DC motor.     a) First kind (A) motor can endure the overload (1min) according to table 3 .

Model

Power

(kw)

Rated Current



 Speed

Power

(Eff%)

 Power Factor
Y80M1-2 0.75 1.8 2825 75.0 0.84
Y80M2-2 1.1 2.5 2825 77.0 0.86
Y90S-2 1.5 3.4 2840 78.0 0.85
Y90L-2 2.2 4.8 2842 80.5 0.8
Y100L-2 3 6.4 2880 82.0 0.87
Y112M-2 4 8.2 2890 85.5 0.87
Y132S1-2 5.5 11.1 2900 85.5 0.88
Y132S2-2 7.5 15 2900 86.2 0.88
Y136M1-2 11 21.8 2930 87.2 0.88
Y160M2-2 15 29.4 2930 88.2 0.88
Y160L-2 18.5 35.5 2930 89.0 0.89
Y180M-2 22 42.2 2940 89.0 0.89
Y200L1-2 30 56.9 2950 90.0 0.89
Y80M1-4 0.55 1.5 1390 73.0 0.76
Y80M2-4 0.75 2.0 1390 74.5 0.76
Y90S-4 1.1 2.7 1400 78.0 0.78
Y90L-4 1.5 3.7 1400 79.0 0.79
Y100L1-4 2.2 5.0 1420 81.0 0.82
Y100L2-4 3 6.8 1420 82.5 0.81
Y112M-4 4 8.8 1440 84.5 0.82
Y132S-4 5.5 11.6 1440 85.5 0.84
Y132M-4 7.5 15.4 1440 87.0 0.85
Y160K-4 11 22.6 1460 88.7 0.84
Y160L-4 15 30.3 1460 88.5 0.85
Y180M-4 18.5 35.9 1470 61.0 0.86
Y180L-4 22 42.5 1470 91.5 0.86
Y200L-4 30 56.8 1470 92.2 0.87



We can supply the electrical installation dimensions and other details according to your requirements.



1-Shaft diameter or length



2-Stator height



3-Mounting holes size and distance



4-Brackets can be either metal or aluminum. Its height can be changed.



5-Motor rotation direction can be CW or CCW.



6- We can provide a copper wire, aluminumwire or copper-coated aluminum material kernel.

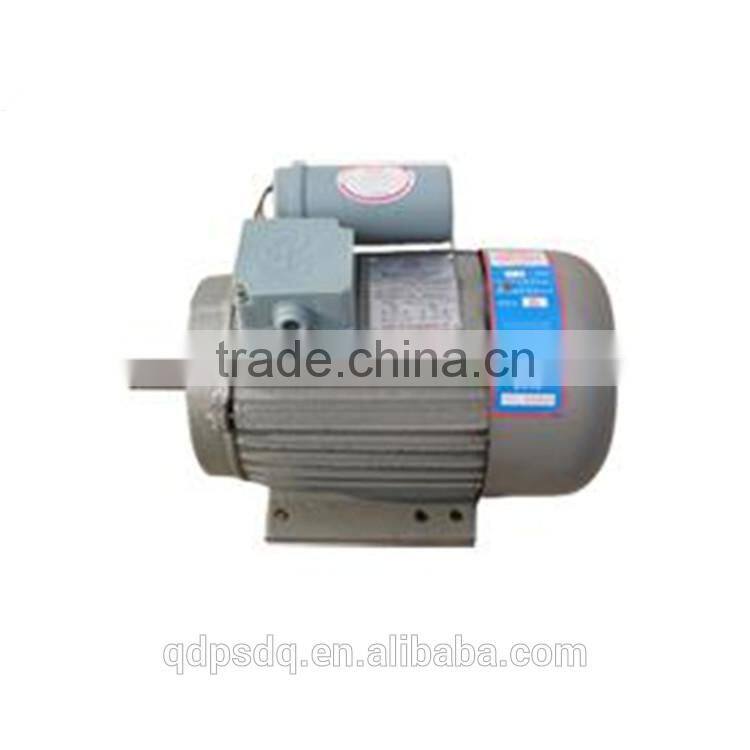

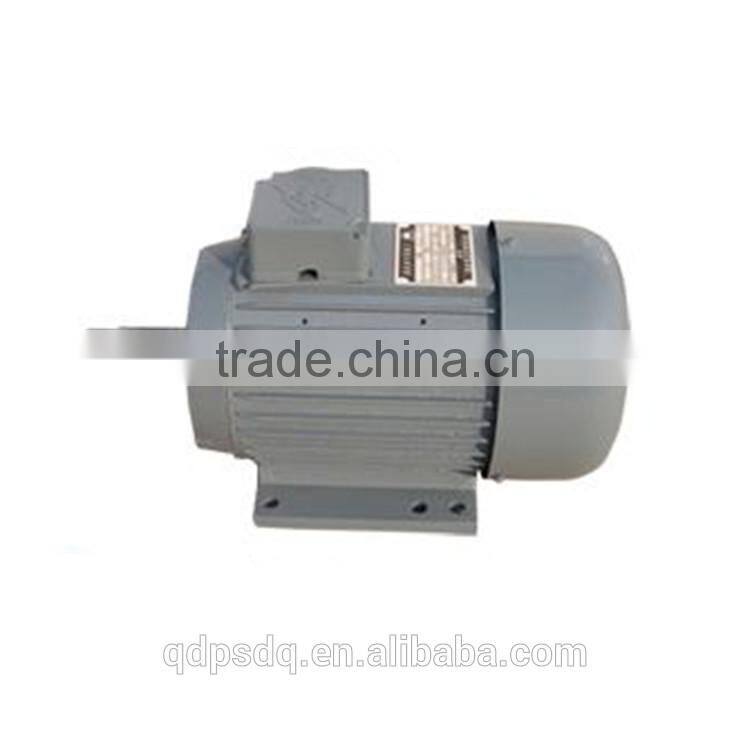

Low cost Y series (IP44) three phase asynchronous electric fan motor universal electric fan motorLow cost Y series (IP44) three phase asynchronous electric fan motor universal electric fan motorLow cost Y series (IP44) three phase asynchronous electric fan motor universal electric fan motor
