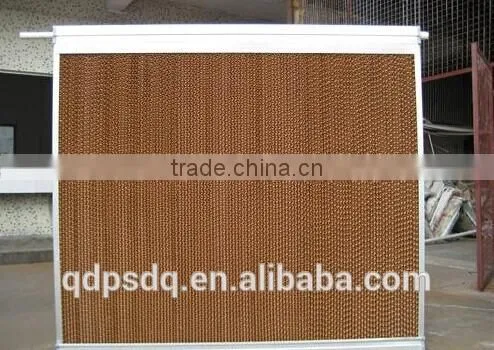

Greenhouse Cooling Pad with Fan System for temperature control
Horticulture agricultural equipment air conditioner water cooling pad
Ventialation fan and cooling pad, best efficient and economic temperature drop measure in summer .
Cooling pad system is finished in the core-ZR paper packing plate .
There is a thin water film on the surface of corrugated fiber paper , when the dry heating air outside is crossing the paper packing plate absorbed by wind machine , the water on the thin water film can absorb the heat of air and evaporate into steam , then the cool and humid air can enter the room after treatment .
The nature processing is just like wind blowing on the water level .
Corrugated paper has high intensity structure,corrosion resistant,long service life.
Fine percolating and absorbing water to ensure water drip wet the wall.
Specific stereoscopic structre.It can provide the largest evaporation surface area for heating exchanging between water and air.
Outer frame can be alternative of aluminum alloy and galvanized board.

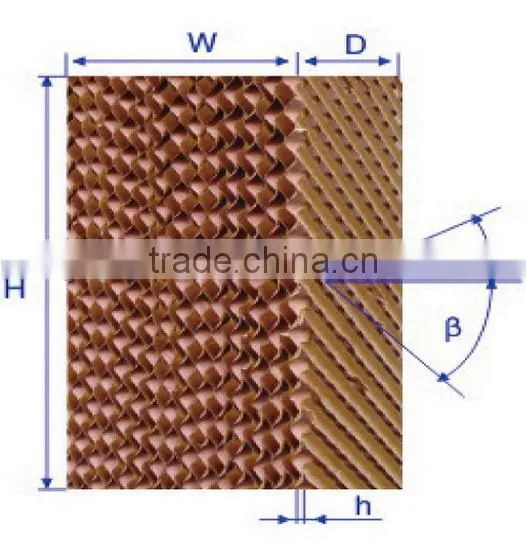

| Marks | DM790 | DM760 |
| H(mm) | 1500,1800,2000 | 1500,1800,2000 |
| W(mm) | 600 | 600 |
| D(mm) | 100,150 | 100,150 |
| h(mm) | 7 | 7 |
| a(degree) | 45 | 15 |
| B(degree) | 45 | 45 |
2. Technical data of Huabo air cooler cooling pad for poultry :
Technical data of water pump
a, power:0.6kw, flow rate:7M3/h, lift:13m
b, power:0.8kw, flow rate:7M3/h, lift:20m
c, power:1.1kw, flow rate:30M2/h, lift:10m
Installation photos
Company Profile
Certification
Our Advantage
1.Small volume, high air volume, high efficiency, low noise, light vibration,easy to installation and so on.
2.Widely applied for the ventilation in dwellings, industrial constructions and labs, in environment with strict limit to noise, or in air conditioning, air purifying and freezing industries etc.
3.The fan adopts mold production through static and dynamic balance adjustment, and its surface adopts high-grade electrostatic spraying treatment.
4.The gas delivered by the series of fan cannot have sticky matters, and is noncorrosive, non-flammable and non-explosive.
