Help CenterElectric Fence Insulator Horse Fence Insulator for Electric Horse Fence,M6 Thread,black
Related Products
-
Electric Fence Ring Insulator Horse Fence Ring Insulator for Electric Horse Fence,M6 Thread,blackUS$ 0.07 - 0.09MOQ: 200 Pieces -
Electric Fence Ring Insulator Horse Fence Ring Insulator for Electric Horse Fence,whiteUS$ 0.07 - 0.09MOQ: 200 Pieces
-
Screw on Electric Fence Insulator Plastic Electric Fence Insulator Electric Fence Rope Insulator Horse Fence Electric FenceUS$ 0.07 - 0.09MOQ: 200 Pieces
-
Electric Fence Insulator Horse Fence Insulator for Electric Horse Fence,M6 Thread,blackUS$ 0.07 - 0.09MOQ: 200 Pieces
-
Electric Fence Insulator Horse Fence Insulator for Electric Horse Fence,M6 Thread,blackUS$ 0.07 - 0.09MOQ: 200 Pieces
Specifications
1.Easy to install2.Low cost but high efficient
3.Top quality
Dackaging Details: 50PCS/BAG 700PCS / CTN
Delivery Detail: 30DAYS
1.Easy to install
2.Low cost but high efficient
3.Top quality

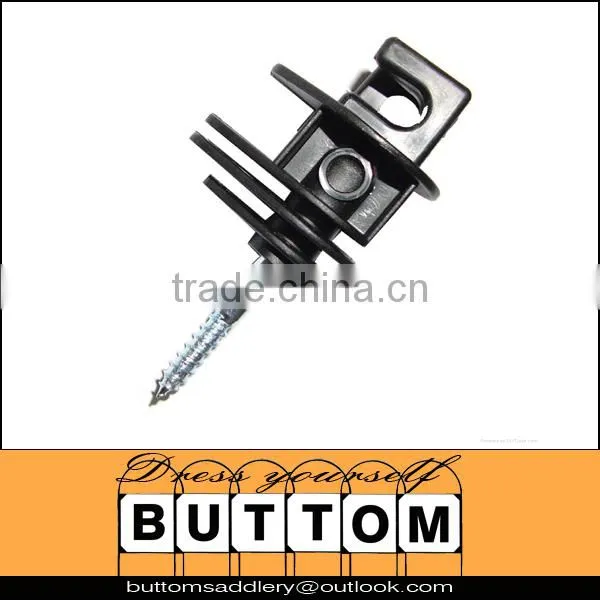

electric fence insulator horse fence insulator for electric horse fence,M6 thread,black
1.PP material with UV resistance treatment,for long time use.
2.M6 thread,easy for installing,no need to drill a hole
3.Fit for up to 10mm fencing wires
4.Top quality
How to Install Electric Fence Insulators
Electric fence insulators are a key part of your electric fence system--they allow you to attach the fence to your posts without grounding the wires out. Choose electric fence insulators based on the type of post and wire you're using for the fence. If you use steel T-posts with 12-1/2 gauge smooth wire, simple snap-on plastic insulators should suffice. However, wood posts will require you to use a hammer to attach nail-on plastic insulators. Polytape wire calls for insulators that have an opening wide enough to accommodate the width of your tape. Regardless of what type of wire you choose for your electric fence, terminal insulators (insulators at a corner) require special wiring during installation so they can move with your fence in either direction.
Instructions
1.Install line post insulators. Use spray paint to mark the locations on your wood and steel line posts where you want to locate the insulators and wire. Wire heights vary depending upon the type of animal you plan to contain, but a permanent, interspecies (sheep and cattle) electric fence requires seven or eight wires at distances of 5 to 10 inches.
2.Install line post insulators on your steel T-posts. Clasp the snap on the back of the insulator around the circumference of the pole at the correct height. Firmly push the clasp against the pole until it clicks into place. Repeat this process for all the insulators on each steel T-post.
3.Install line post insulators on your wooden posts. Position the plastic insulator at the correct height on the post,insert a nail into the nail hole on the top of the insulator and hammer it completely into the post. (Nails typically come with the insulators.) Insert another nail into the nail hole on the bottom of the insulator and hammer it in. Repeat this process for each insulator on each wooden post.The better way for these is to use the screw-in insulators,it is much better for installing,no need to drill holes.
4.Install terminal insulators on your corner posts and gate posts. Cut a section of wire that is long enough to wrap 3-1/2 times around your first corner post. Thread the wire through the hole in the center of the terminal insulator then wrap it around the corner post at the desired height, leaving approximately six inches of space between the terminal insulator and the post; when you install the electric fence, this allows the terminal insulator to move slightly with the wire fence in either direction, which reduces the pressure on the corner posts). Rethread the wire and wrap it around the corner post two more times, then wrap the two ends back over the wire to secure it. Repeat this process for each terminal insulator on each corner post.
5.Check your insulators to ensure they are all installed at the correct heights before installing the rest of your electric fence.
