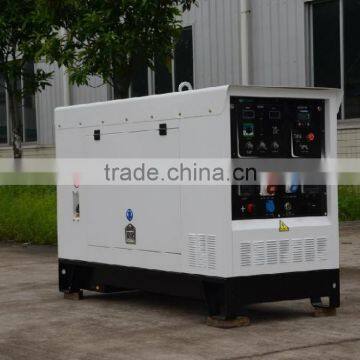

China DC 500A Diesel Generator Welder
US$ 5,725 - 16,679
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Kubota
Model Number:
GNR
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Approved 500A Kubota Welding Machine Diesel Generator WelderUS$ 5,725 - 16,679MOQ: 1 Set -
Heavy Duty Kubota Engine 500A Diesel Welding GeneratorUS$ 3,655 - 12,659MOQ: 1 Set
-
China 300A to 500A Diesel Welder Generator for SaleUS$ 4,795 - 12,659MOQ: 1 Set
-
Portable Diesel Welding Generator 400AUS$ 4,795 - 12,659MOQ: 1 Set
-
Kubota Diesel Engine 500amp DC Welding Generator for SaleUS$ 6,459 - 7,155MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Kubota
Model Number
GNR
Output Type
AC Three Phase
Speed
1500rpm or 1800rpm
Frequency
50Hz or 60Hz
Rated Power
10kva to 35kva
Rated Voltage
127V/220V, 220V/380V, 230V/400V, 240V/415V
Rated Current
200A to 500A
China DC 500A Diesel Generator Welder
| Welding output | |||||||||
| Welding Processes | MMA | TIG | FCAW | ||||||
| Open Circuit Voltage (V) | 75 | 75 | 75 | ||||||
| Current Range (A) | 30-500 | 30-500 | 30-500 | ||||||
| Welding Current (A) | 387 | 430 | 500 | 387 | 430 | 500 | 387 | 430 | 500 |
| Welding Voltage (V) | 35.5 | 37.2 | 40 | 25.5 | 27.2 | 30 | 33.3 | 35.5 | 39 |
| Duty Cycle | 100% | 80% | 60% | 100% | 80% | 60% | 100% | 80% | 60% |
| External Characteristic Curve | Drop Characteristic | Drop Characteristic | Flat Characteristic | ||||||
| Generator output | |||||||||
| Power | 16Kw | ||||||||
| Excitation Type | AVR Brushless Excitation | ||||||||
| Frequency | 50Hz | ||||||||
| Phase | Three Phase | Single Phase | |||||||
| Output Voltage/Power | AC 400V/20Kw | AC 230V/6Kw | |||||||
| Engine | |||||||||
| Brand | Kubota | ||||||||
| Fuel | Diesel | ||||||||
| Rated Power | 26Kw(MAX 29Kw ) | ||||||||
| Rated Speed | 1500 RPM | ||||||||
| Low Temperature | Pre-heated Start | ||||||||
| Warning Type | Water Temperature /Oil Pressure/Battery Voltage | ||||||||
| Fuel Capacity | 60L | ||||||||
| Cooling Method | Water-cooled | ||||||||
| Fuel Consumption | 5.6L/hr | ||||||||
| Complete appliance | |||||||||
| Weight | 690kg | ||||||||
| Dimension(mm) | 1480×850×1095 | ||||||||
| Protection Class | IP23 | ||||||||
