Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 250kva Deutz Diesel Power Generator

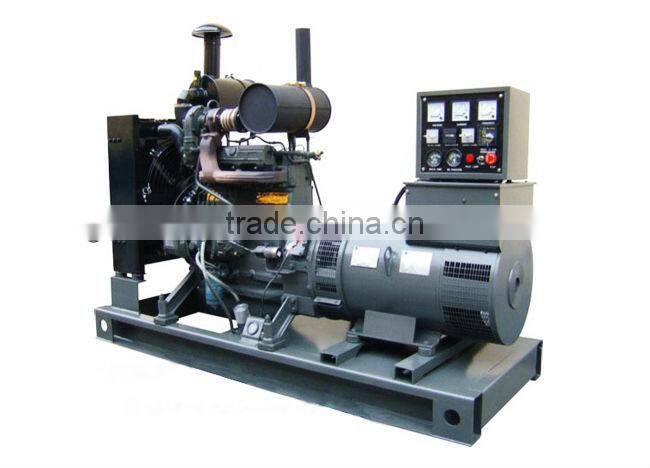

250kva Deutz Diesel Power Generator

Name: 250kva Deutz Diesel Power Generator
Brand: Deutz
SKU: 140637874
Availability: InStock

250kva Deutz Diesel Power Generator thumbnail-1

250kva Deutz Diesel Power Generator photo-1

US$ 20,000 - 25,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Deutz

Model Number:

GNRD

Contact Supplier Request Quote Chat Now

Shenzhen Genor Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Deutz

Model Number GNRD

Output Type AC Three Phase

Speed 1500rpm or 1800rpm

Frequency 50Hz or 60Hz

Rated Power 15KVA to 1250KVA

Rated Voltage 220V/380V, 230V/400V, 240V/415V

Rated Current 22A to 1800A

250kva Deutz Diesel Power Generator

DEUTZ super silent power generator can be coupled with A.C.synchronous brushless alternator such as Stamford, Leroy Somer,Marathon etc.

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
Genset Model	KW	KVA	KW	KVA	Engine	(g/kwh)	Cylinder No.	(L )	(mm)
GNRD18A	12	15	14	18	F2L912	≤238	2	1.88	100*120
GNRD37A	28	35	30	37	F3L912	≤232	3	2.82	100*120
GNRD41A	31	39	33	41	F3L913	≤228	3	3	100*125
GNRD52A	38	47	42	52	F4L912T	≤228	4	3.77	102*125
GNRD55A	40	50	44	55	F4L913	≤228	4	4.08	100*120
GNRD65A	48	60	52	65	F4L912T	≤228	4	4.08	102*125
GNRD75DA	50	62	60	75	BF4L912	≤221	4	4.08	102*125
GNRD77A	55	69	62	77	F6L912	≤228	6	5.65	100*120
GNRD85A	64	80	68	85	F6L913	≤228	6	6.12	102*125
GNRD96A	72	90	77	96	F6L912T	≤228	6	6.12	100*120
GNRD102A	78	97	82	102	BF6L913	≤228	6	6.12	102*125
GNRD144A	105	131	115	144	BF6L913C	≤228	6	6.12	102*125
GNRD50	37	46	40	50	D226B-3D	≤215	3	3	105*120
GNRD70	51	64	56	70	TD226B-3D	≤215	3	3	105*120
GNRD95	69	86	76	95	TD226B-4D	≤215	4	4	105*120
GNRD150	100	125	120	150	TD226B-6D	≤215	6	6	105*120
GNRD185	135	169	148	185	TBD226B6D	≤215	6	6	105*120
GNRD200	150	188	165	200	TBD234V6	≤210	V6	10.8	128*140

Engine

Brand: Deutz diesel engine

Rated voltage: 220V/380V, 230V/400V, 240V/415V

Rated frequency: 50/60Hz

Power factor: 0.8

Cooling method: closed water cooling

Starting method: electric start

Rated speed: 1,500/1,800rpm

Noise level: 68dB at 7m away

Alternator:

Brand: Stamford,LeroySomer, Marathon,Engga

Rated output: 20KVA-1250KVA

Rated voltage: 400/230V

Rated frequency: 50/60Hz

Power factor: 0.8

Phase: 3-phase, 4-wire

Rated speed: 1,500rpm/1,800rpm

Excitation: harmonic excitation or phase compound or brushless

Voltage regulation: automatic

1.0% voltage regulation (maximum) in static conditions

Protection class: IP21-23

Control panel

The generator control panel is manufactured locally

Standard engine instrumentation

Voltmeter with selector switch

Ammeter with selector switch

Frequency meter

Current transformers

Instrument fuses duly wired and ferruled

Mcb of suitable rating with overload and short-circuit protection

With AMF control panel or with ATS (automatic transfer system)

With EPA certification

Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.

Warranty policy

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
