Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Water Cooled Rated Power 100kw Deutz Diesel Generator With Leroy Somer

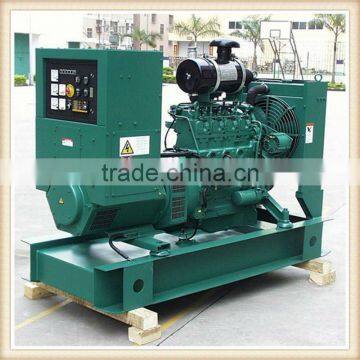

Water Cooled Rated Power 100kw Deutz Diesel Generator With Leroy Somer

Name: Water Cooled Rated Power 100kw Deutz Diesel Generator With Leroy Somer
Brand: Deutz
SKU: 140637834
Availability: InStock

Water Cooled Rated Power 100kw Deutz Diesel Generator With Leroy Somer thumbnail-1

Water Cooled Rated Power 100kw Deutz Diesel Generator With Leroy Somer photo-1

US$ 3,000 - 99,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Deutz

Model Number:

GNRD

Contact Supplier Request Quote Chat Now

Shenzhen Genor Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Deutz

Model Number GNRD

Output Type AC Three Phase

Speed 1500rpm or 1800rpm

Frequency 50Hz or 60Hz

Rated Power 15KVA to 500KVA

Rated Voltage 220V/380V, 230V/400V, 240V/415V

Rated Current 10A to 720A

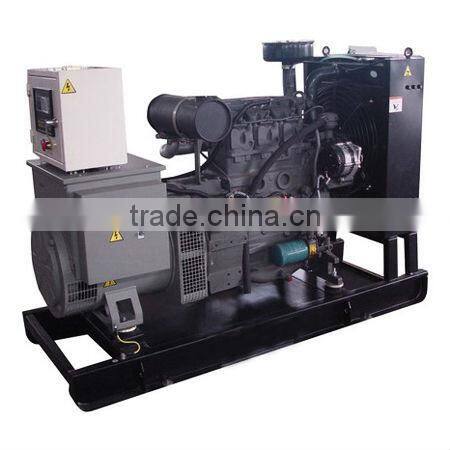

Water cooled rated power 100kw Deutz diesel generator with Leroy somer

Genor Power Deutz series diesel generator setd adopt DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-Venture Company in China.The DEUTZ engines are 4-cycle,water cooled, 24DVC working voltage for conrol system,adopt circumvolve fuel fiter&oil filter cleaner, Dry air cleaner,compact structure,fine quality,reliable capability

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
Genset Model	KW	KVA	KW	KVA	Engine	(g/kwh)	Cylinder No.	(L )	(mm)
GNRD18A	12	15	14	18	F2L912	≤238	2	1.88	100*120
GNRD37A	28	35	30	37	F3L912	≤232	3	2.82	100*120
GNRD41A	31	39	33	41	F3L913	≤228	3	3	100*125
GNRD52A	38	47	42	52	F4L912T	≤228	4	3.77	102*125
GNRD55A	40	50	44	55	F4L913	≤228	4	4.08	100*120
GNRD65A	48	60	52	65	F4L912T	≤228	4	4.08	102*125
GNRD75DA	50	62	60	75	BF4L912	≤221	4	4.08	102*125
GNRD77A	55	69	62	77	F6L912	≤228	6	5.65	100*120
GNRD85A	64	80	68	85	F6L913	≤228	6	6.12	102*125
GNRD96A	72	90	77	96	F6L912T	≤228	6	6.12	100*120
GNRD102A	78	97	82	102	BF6L913	≤228	6	6.12	102*125
GNRD144A	105	131	115	144	BF6L913C	≤228	6	6.12	102*125
GNRD50	37	46	40	50	D226B-3D	≤215	3	3	105*120
GNRD70	51	64	56	70	TD226B-3D	≤215	3	3	105*120
GNRD95	69	86	76	95	TD226B-4D	≤215	4	4	105*120
GNRD150	100	125	120	150	TD226B-6D	≤215	6	6	105*120
GNRD185	135	169	148	185	TBD226B6D	≤215	6	6	105*120
GNRD200	150	188	165	200	TBD234V6	≤210	V6	10.8	128*140

General Technical Data

1. Frequency: 50 & 60Hz

2. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire

3. Voltage: 120/207V,127/220V,220/380V, 230/400V, 240/415V, etc

4. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank

5. Monitoring meters and control switches

6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure

The specification of engine:

1. engine model: deutz

2. engine part :water tower,fan,fuel tank

3. governor system:electrical or mechanical governor

4. aspiration mode:natural, turbocharged

5. start method: 12V/24V DC electric starting

6.low fuel cnsumption,low noise,small volume,light weight

7.3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions

The specification of alternator:

1.alternator model: stamford, Leroy, Marathon.Engga

2.regulator: AVR automatic voltage regulating

3.insulation degree: H degree

4.power factor:3 phase 4 wire

5.Motor: bronze brushless

6.IP21-23 enclosure

Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop

optional:

1. Auto-remove Monitor Panel

2. Auto Transfer System(ATS)

3. Auto-combine Cabinet

4. Sound proof canopy

5. Intelligent controlling system

Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
