Specifications
1.Hand operate ;2.Curving sheet metal or plate;
12"/24"36" metal sheet hand Slip Roll machine made in china
12"/24"36" metal sheet hand Slip Roll machine made in china
Manual Rolling Machine Main Technical Specification | ||||
Model |
SR12”(G30) |
SR12”(Z25) |
SR24”(Z38) |
SR36” |
Max Plate Width |
305mm |
305mm |
610mm |
915mm |
Capacity Mild Steel |
1.5mm |
1.0mm |
1.2mm |
1.2mm |
Minimum Forming Diameter |
30mm |
25mm |
38mm |
38mm |
Packing Size(mm) |
430x230x135 |
470x205x280 |
900x250x300 |
1200x250x300 |
Packing |
Carton |
Carton |
Carton |
Wood box |
| Weight(N/G) | 10.5/11KG | 23/24KG | 40/42KG |
Interested in curving your sheet metal or plate? Our 3 roll benders work by pinching the metal between two rolls and curving it as it comes in contact with a back forming roll. This curves the metal workpiece into a cylindrical form, where it is welded together to produce a cylinder. The upper roll is in a fixed position, the lower roll has adjustable movement to perform the gripping function. These are the "pinch" rolls. The third roll (the forming roll) is also adjustable. With a manually opened or hydraulically moved drop hinge, the end of the top shaft is opened to allow removal of the finished work piece, especially a completed tube shape.

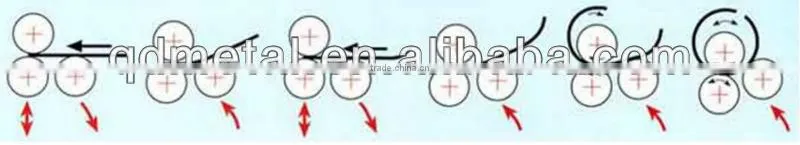

Below is a diagram showing how a plate is formed into a tube .
Why do customer choose us?
1.we use high quality cold-rolled steel plate,we have modern machine to do phosphating and acid-washing;
2.we use imported electrostatic powder coated,environmental protection,corrosion prevention,damp proof;
3.we can develop new styles per customized;
4.we are factory direct price;
