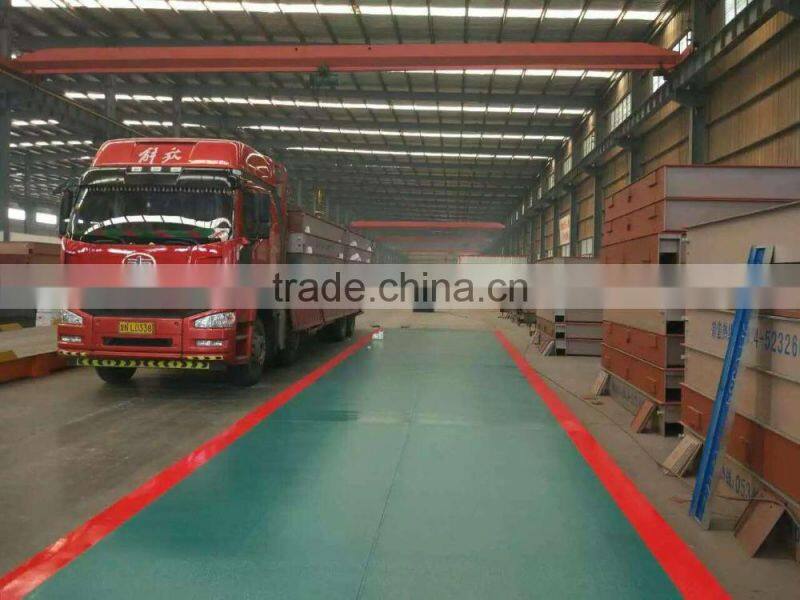

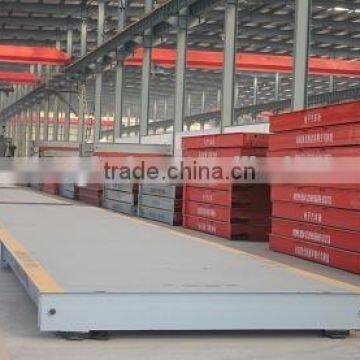

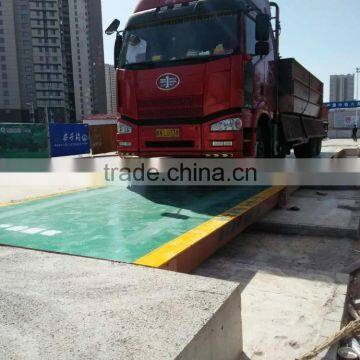

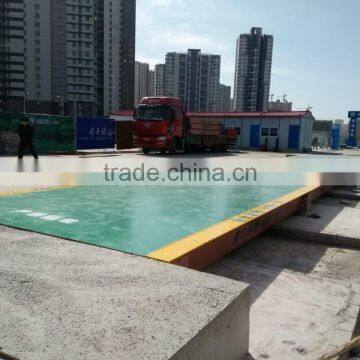

150t Truck Scale 18x3.2m Weighbridge

150t truck scale 18x3.2m weighbridge

PRODUCT DESCRIPTION

1. Max.Capacity:10ton~200ton

2. Min.Capacity:2kg~50kg

3. Platform size: 2.2*5m, 2.5*6m, 3*7m,3*8m, 3*9m,3*10m,3*12m, 3*16m, 3*18m, 3*20m or according to customer demand

4. Plate thickness: 8mm,10mm, 12mm, 14mm or according to customer demand

5. Accuracy: OIML III

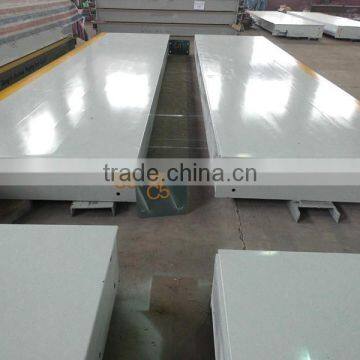

6.Export mode truck scale that divided into two part in the middle, easy to load in container

7.One slope or dual slope in steel material is optional

8. Application:Weighing steel,concrete,mining,recyclying,chemical,grain etc industry

SPECIFICATION

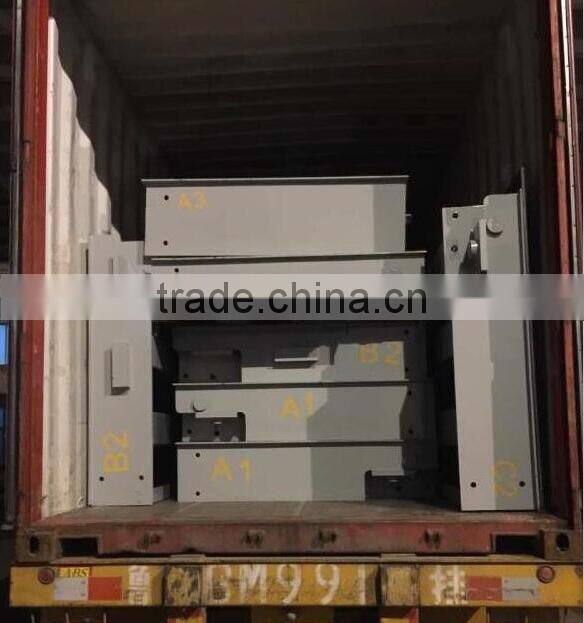

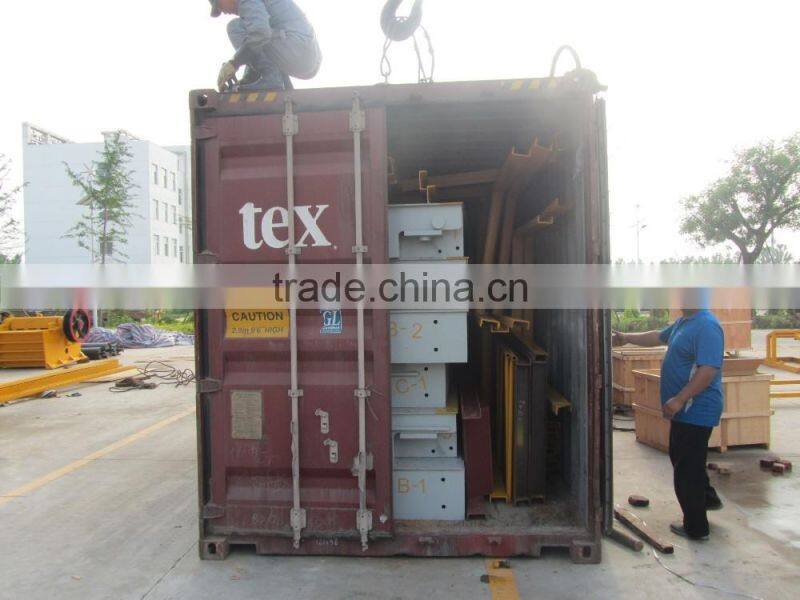

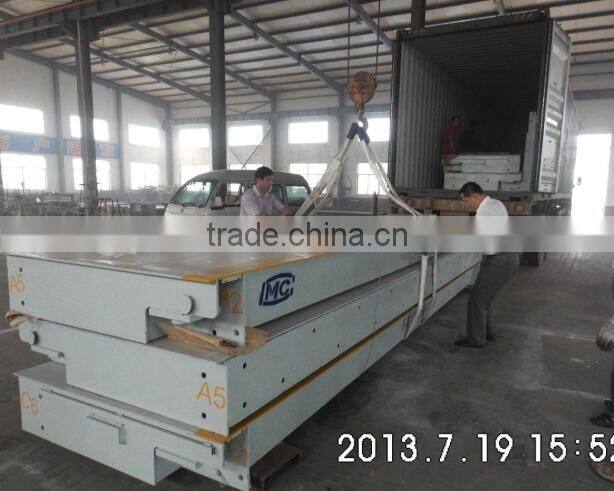

EXPORT LOADING CONTAINER

TECHNICAL PARAMETER

1) 10mm/12mm/14mm/16mm top plate optional, middle dissected structure

2) U shape beams in 32cm height, robust and economic.

3) General mounting height: 430mm.

4) Load cell :Double ended beam load cell or column load cell could be choosen

5) with OIML R60 approved load cells KELI

6) Indicator: A9, A9P (with interprinter)

7) 2 units of 18m can be loaded in one 40' HQ.
