Inner Inlaid Dripper Style Drip Irrigation Belt
Diameter( mm ) |
Wall Thickness( mm ) |
Distance( mm ) |
Flow Rate( L/ H ) |
Working Pressure( Mpa ) |
16 |
0.18-0.6 |
100-1000 |
100-1000 |
0.01-0.10 |
Brief Introduction
Forming techniques;
Fully turbulent and resistance to clogging;
Anti-corrosion, anti-aging;
Less water-head loss along the travel of water, longer spread length;
The strength of anti-machine is good, and it is easy to be laid down by mechanization;
Application
Greenhouse, industrial crops, vegetables, fruit trees, industrial trees etc.

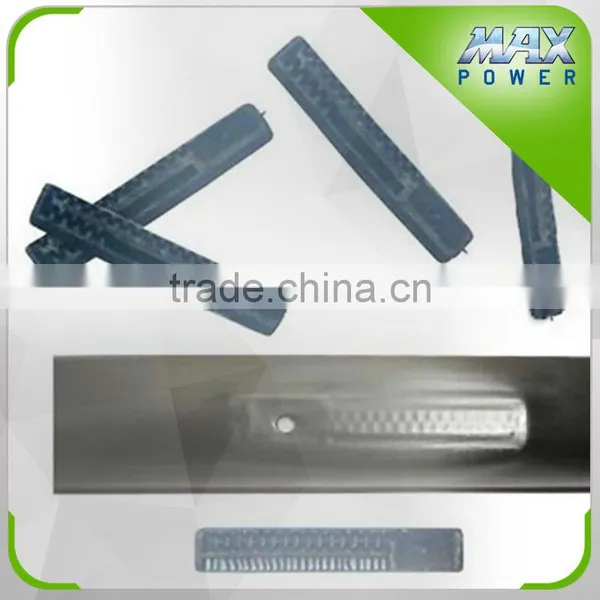

Inner Inlay Drip Irrigation Belt with Continuous Flat Dripper
Parameter |
|
Diameter( mm ) |
16 |
Wall Thickness( mm ) |
0.15-0.60 |
Distance( mm ) |
100-150-200-250-300-330-500 |
Working Pressure( Mpa) |
0.01-0.10 |
Flow Rate( L/h ) |
0.85-3.5 |
Brief Introduction
High- Fidelity mold degrade the making deviation much small;
There are many filtering holes in the entrance, so it's has strong anti stops;
The long turbulent flowing channel make the level of average water leakage good;
One time extruding and welding, no seam, and raw edges, reducing the possibility of cracking as heavy pressure;
The different diameters and wall thickness are suitable fore the different framlan. It has certain compensation, longer spread length/ The flow rate and distance between drippers are adjustable;
Drilling holes by machine to form water slit gate to prevent root hair or insects entering into flow passage, stopping drippers;
Application
Ideal for greenhouse, industrial crops, vegetables, fruit trees, industrial trees and so on.
Inner Inlay Flat Style Drip Irrigation Pipe
Diameter( mm ) |
Wall Thickness( mm ) |
|
Distance( mm ) |
Working Pressure( Mpa) |
Flow Rate( L/h ) |
16 |
0.6-1.2 |
|
100-2000 |
0.06-0.40 |
1.2-3.6 |
Brief Introduction
The dropper which is molding out of plastics is welded inside pipe wall;
The Dripper is directly welded inside the pipe, so the pressure loses slight and irrigation accuracy is high;
Lateral Driptape;
It has strong anti-stops. The water current is turbulent flowing and the level of average water leakage is good;
Can be recycled and reused;
The pipe with common and pressure drippers can adapt to different landform;
The wall thickness and distance between drippers is adjustable( satisfy the need of clients);
Low price, convenient installment, transportation and operation;
The different specifications are suitable for the different open field crops;
Lateral Driptape
Diameter( mm ) |
Wall Thickness( mm ) |
Distance( mm ) |
Working Pressure( Mpa) |
Flow Rate( L/h ) |
16 |
0.17 - 0.3 |
100 - 400 |
1.4 - 4 |
0.01 - 0.10 |
Brief Introduction
1, Labyrinth runners and outlets of water formed by one time vacuum and heat technology, with high produce precision;
2, Longer spread length and uniformity in water distribution for the features of turbulent flow and pressure compensated;
3, High clogging resistantce due to multiple inlets;
4, New material is used to prevent it from being corroded and aged;
5, Reduced equipment cost;
Nice and safe packing for sea detlivery
