COMPRESSED WOOD BLOCKS MAKING MACHINE
Brief Introduction of Compressed Wood Blocks Making Machine
--Usage: This compressed wood blocks making machine is used to make blocks/feet/log for pallets, which is can be used in packing industry and logistics(transportation);
--Raw Material: Sawdust, wood shavings, wood chips, waste wood, used pallet and so on,also the glue(urea formaldehyde resin);
--Block Size: Mainly 75*75,80*80,80*100,80*120,90*90,100*100,100*115,100*120,90*120, 145*145 etc and can be customized.
Contacts
Name: Ms Emily Gao
Mobile: 0086-15890650503
Skype: emilythoyu
Technical Data of Compressed Wood Blocks Making Machine
Model | TYD-150(Double Heads) | TYF-100(Single Head) |
Power | 20.3Kw | 16.86Kw |
Glue water amount used | 200-240kg/m3 | 100-120 kg/m3 |
Supports the density | 550-850kg/m3 | |
Capacity | 4-6m3/24h | 2-3m3/24h |
Voltage | 380V 50Hz 3Phase | |
Weight | 1500kg | 1000Kg |
Dimension | 4800*700*1300mm | 4800*600*1300mm |
Process of Compressed Wood Blocks
1.Crush wood branches, biomass, used pallets, wood logs, waste wood etc into powder, wood shavings or wood chips;
2.Dry the raw materials into certain moisture at 8-10%;
3.Mix materials with glue water;
4.Press materials into block shape as your demand size.
Raw Material for Compressed Wood Blocks Making Machine
Single Head Compressed Wood Blocks Making Machine
Double Heads Compressed Wood Blocks Making Machine
Cutting Saw for Compressed Wood Blocks Making Machine----used to cut block with 1m or 1.2m)

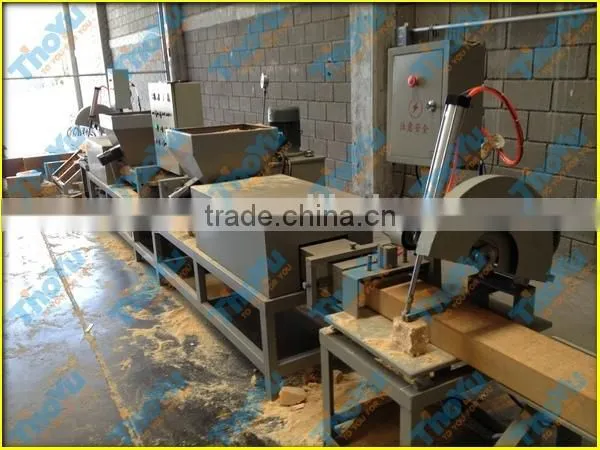

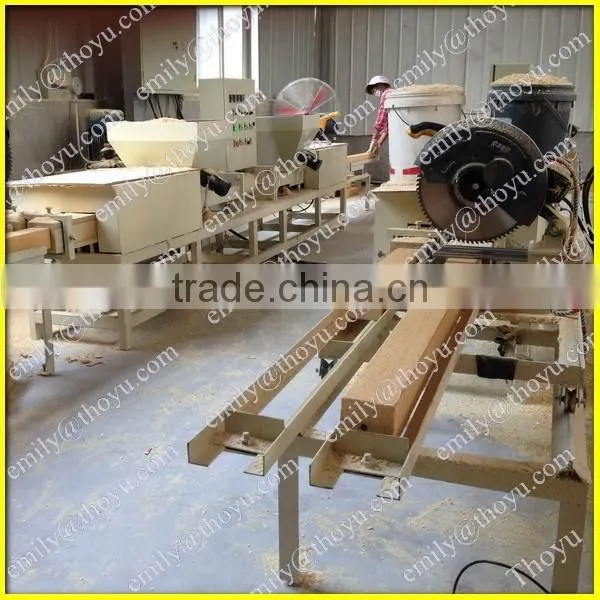

Whole Production Line of Compressed Wood Blocks Making
Processing flow chart: Crusher----Dryer----Glue Mixer----Block Machine----Block Cutting Machine

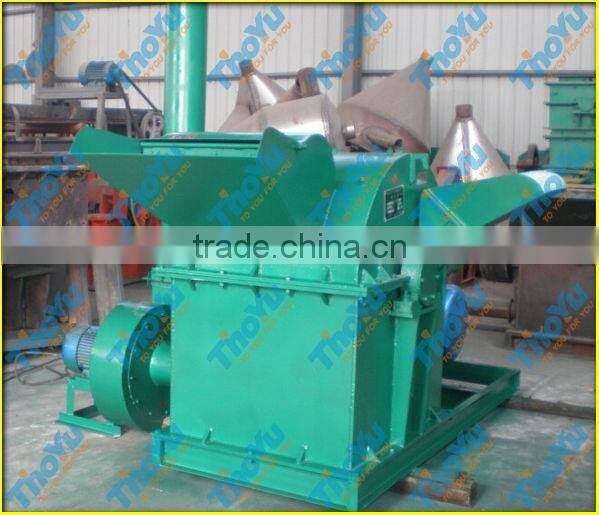

Crusher

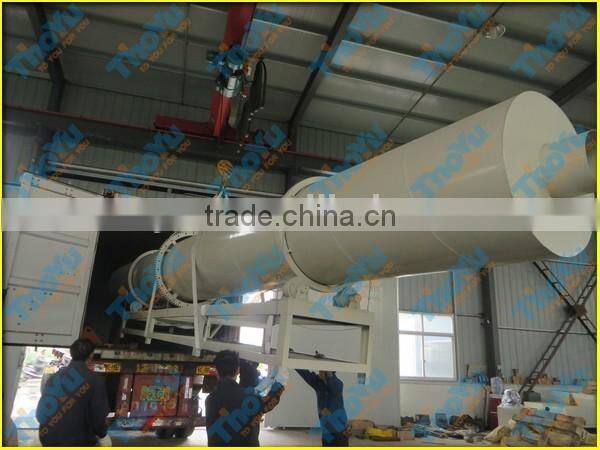

Dryer
Glue Mixer

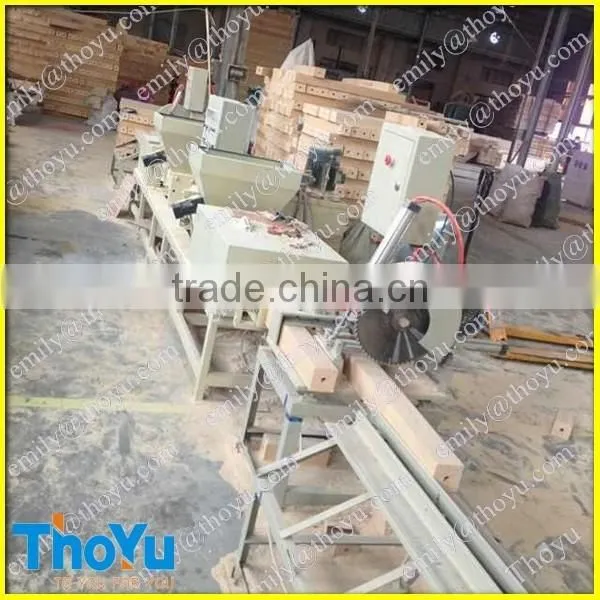

Wood Pallet Block Making Machine

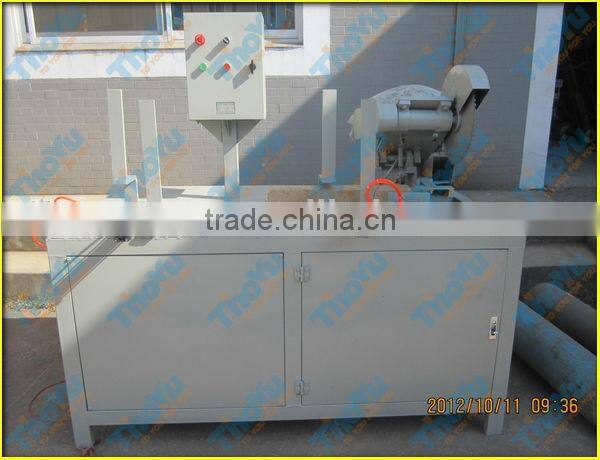

Compressed Wood Blocks Cutting Machine----used to cut the block into small pieces

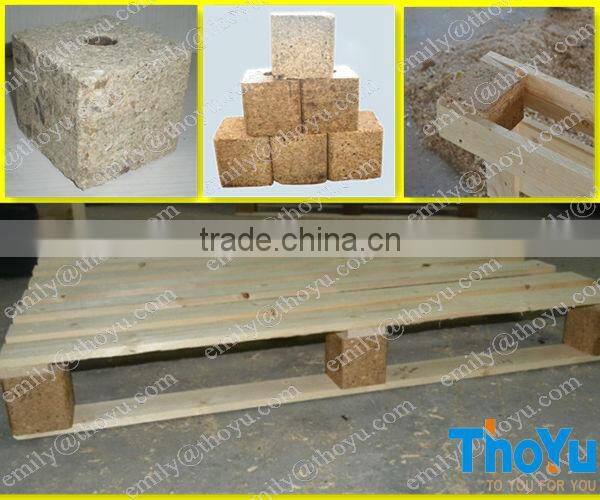

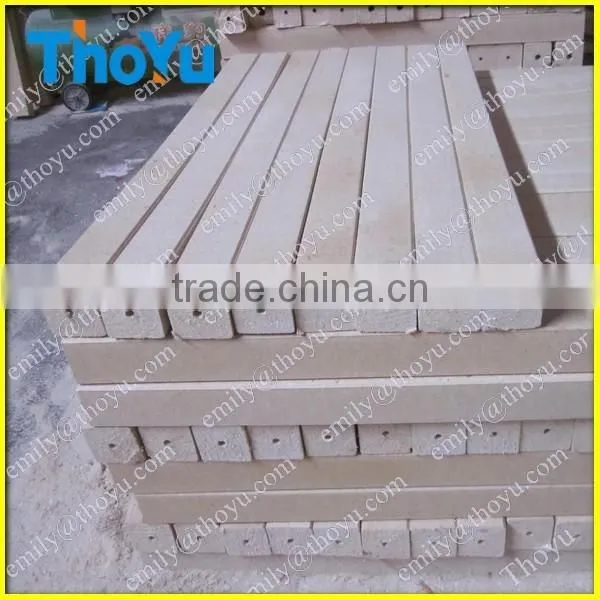

Final Compressed Wood Blocks
We, Zhengzhou Thoyu M dachinery CO.,LTD, We wil provide the most environment-friendly wood pallet block making machine with high-quality at most favorable price for the customer, together with perfect after service.
| Delivery Time | 5-15 working days after receiving clients’ payment. |
| Payment Terms | T/T, L/C, D/P, D/A, Escrow, Paypal, Western Union, can be negotiated |

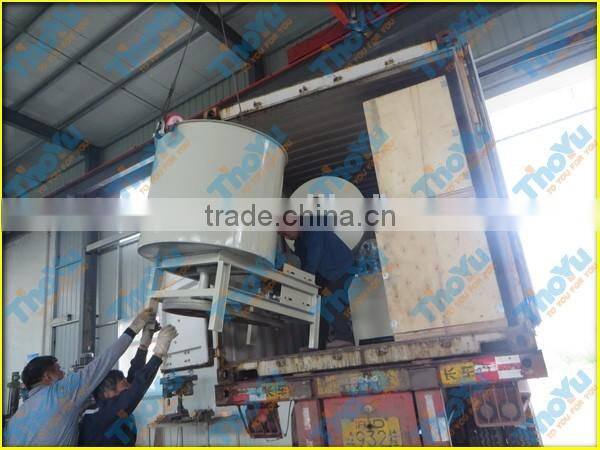

Packing Situation | a.Machines are wrapped in plastic bags first before being convolved with rope. |
| Quality Guarantee Terms | Quality guarantee term is two years. Malfunctions which are caused by machineself and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self. |
| After-sales Service | All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. 1.Before sending the machine, we will test and adjust, so you can use directly when you get it. |
Our Company's Advantages
a, Rapid response on any inquiry;
b, Competitive price;
c, Good after-sales service;
d, Professional inspection department to guarantee quality.
How to Contact Us?
a, Send your Inquiry Details in the Below, Click "Send" Now!
b, Call me at +86-15890650503 or send me message.
c, Contact me by the following tools:
Certification for Thoyu Machinery
