Thoyu Brand Wood Pallet Block Making Machine with Best Quality(SMS:0086-15903677328)
1>Brief Intro of Wood Pallet Blocking Machine:
This Wood Pallet Blocking Machine is used to make blocks/feet/log for pallets, which is can be used in packing industry and logistics.

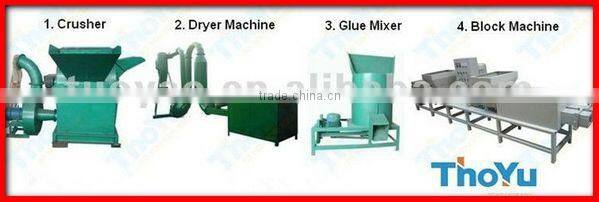

1.Our wood block making/press line is mainly made up of Crusher, Dryer, Glue Mixing Machine, Press Machine and Saw to cut the block piece by piece.
2.The raw material for wood sawdust block press machine is sawdust, wood shavings, waste wood, used pallet and so on. If the raw material size is not very big, we do not suggest crushing first.
3.The pallet block's size can be made by customer's demands.
a, Material of Wood Pallet Blocking Machine:
--- sawdust, wood shavings, waste wood, used pallet ect.
b, Products of Wood Pallet Blocking Machine:
c, Application of Wood Pallet Blocking Machine:
2>Main Features of Wood Pallet Blocking Machine:
1.Generally four hot presses are a production line, must provide the dryer, the gluing machine, grinder each.
(Dryer, gluing machine, grinder and so on supporting facility customer buys in addition).
2.Personnel disposition: Production personnel are 4-5 people per shift. And raw material sort (screening),
drying, spreads 2-3 people, looked that machine 2 people (a person may look at two machines).
3.Production cycle: After confirmation order form and payment advanced payment, 40 super craftsmanship factory delivery.
4.Equipment investment recoupment period: 10—12 months.
5.Our factory is responsible for the technical training, and provides the consummation the post-sale service.
3>Main Parameters of Wood Pallet Blocking Machine:
Specification model | Power input (kw) | Outlook size (mm) | Production efficiency (m3/24h) | Glue water amount used (kg/m3) | Supports the density (kg/m3) | Warm prosecution type | Complete machine weight (kg) |
TY75*75 | 13 | 5000*600*1300 | 2 | 100-120 | 550-600 | PID adjusts the merit accent to press the control | 1000 |
TY80*100 | 13 | 5000*600*1300 | 2 | 100-120 | 550-600 | 1000 | |
TY80*120 | 13 | 5000*600*1300 | 2.2 | 100-120 | 550-600 | 1050 | |
TY90*90 | 13 | 5000*600*1300 | 2 | 100-120 | 550-600 | 1000 | |
TY90*140 | 13.5 | 5000*600*1300 | 2.4 | 100-120 | 550-600 | 1100 | |
TY100*100 | 13 | 5000*600*1300 | 2.2 | 100-120 | 550-600 | 1050 | |
TY100*115 | 13 | 5000*600*1300 | 2.3 | 100-120 | 550-600 | 1080 | |
TY100*140 | 13.5 | 5000*600*1300 | 2.5 | 100-120 | 550-600 | 1120 | |
TY140*140 | 15 | 5000*600*1300 | 3 | 100-120 | 550-600 | 1350 |

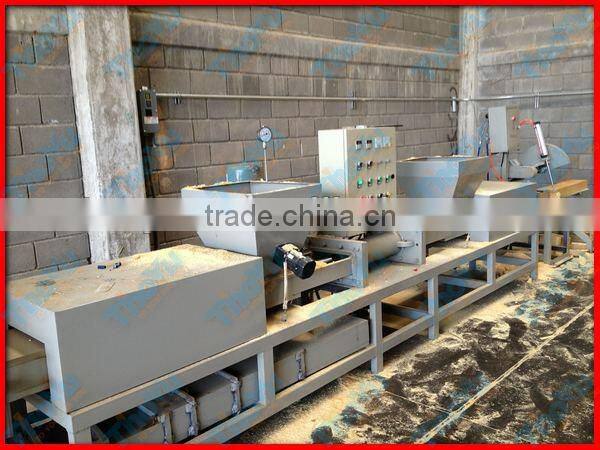

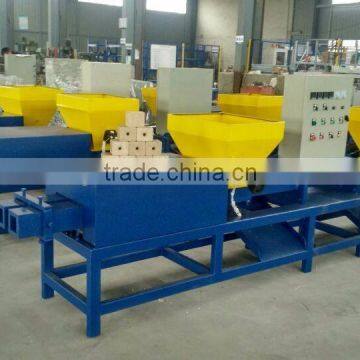

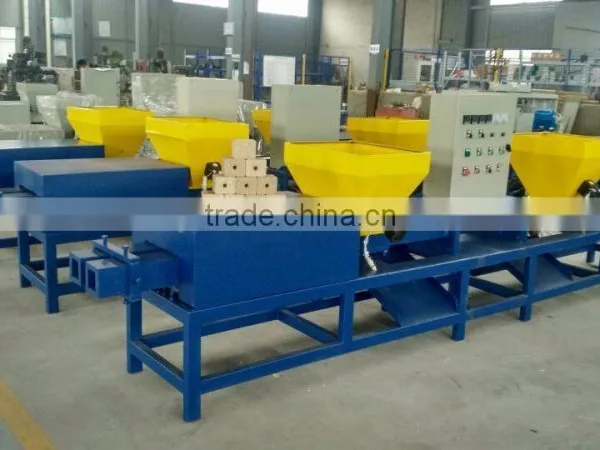

4>Photos of Wood Pallet Blocking Machine:

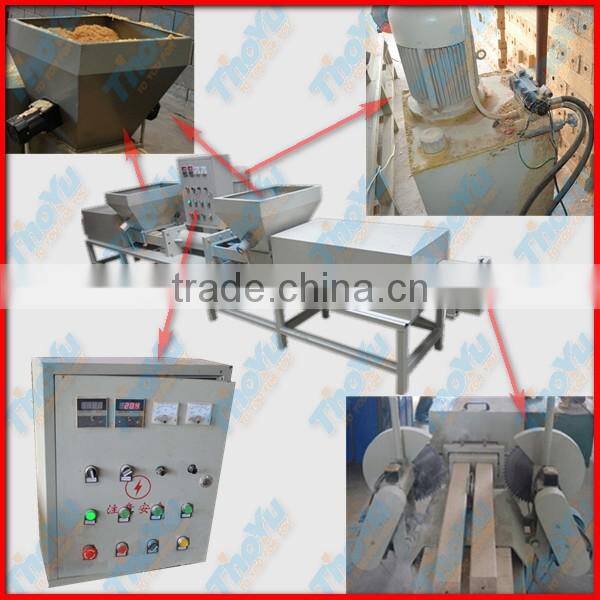

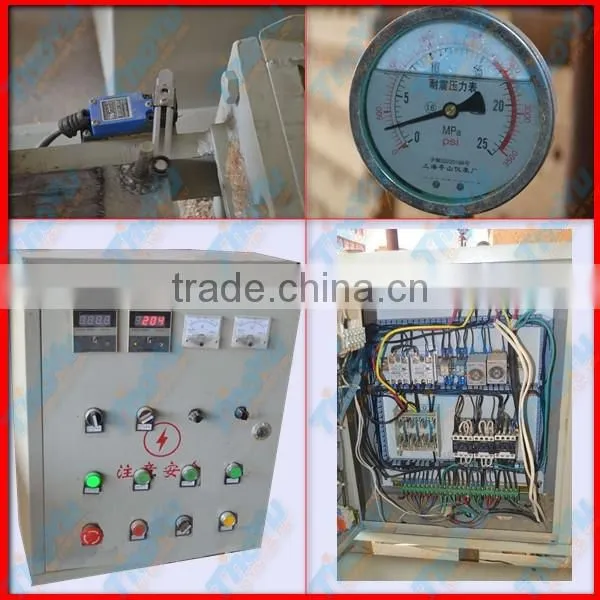

Details of Wood Pallet Blocking Machine:

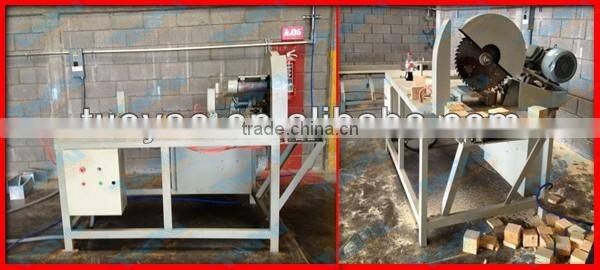

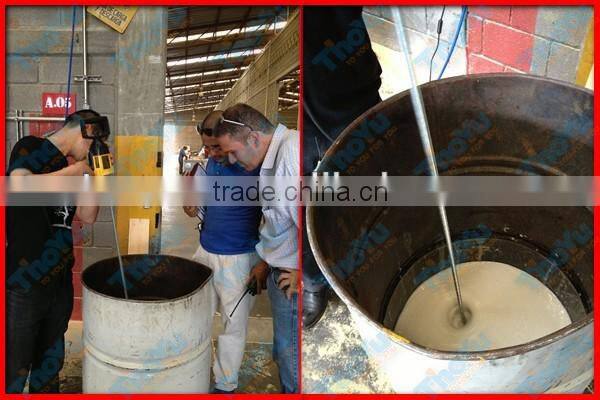

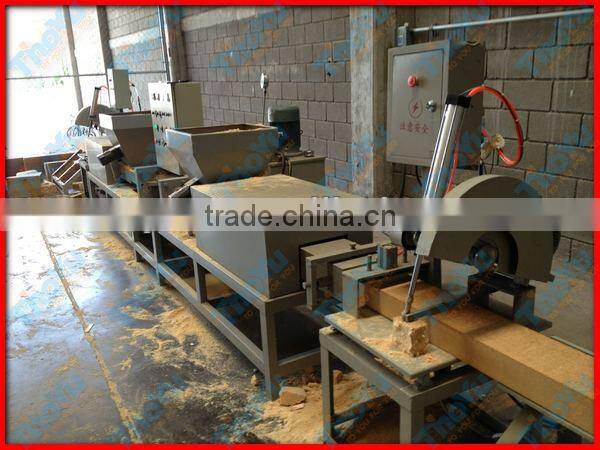

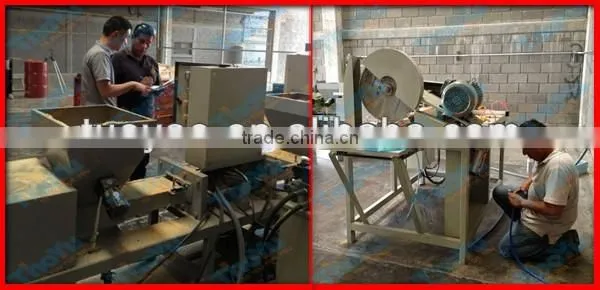

Commissioning in Client's factoryof Wood Pallet Blocking Machine:

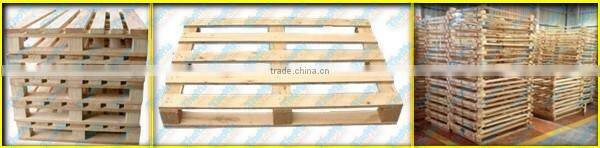

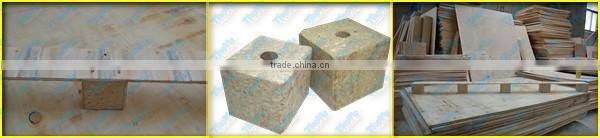

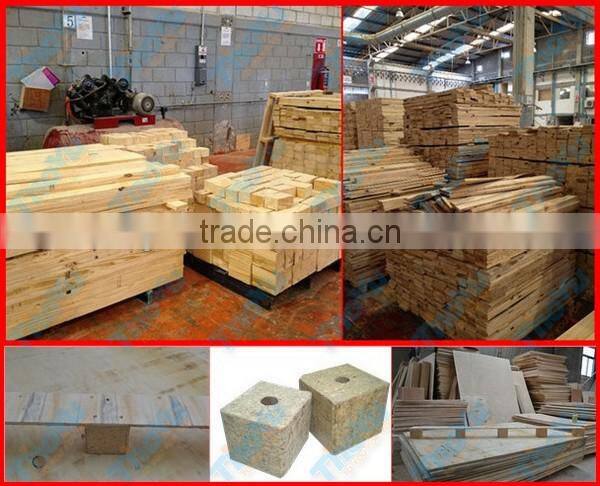

Final products of Wood Pallet Blocking Machine:

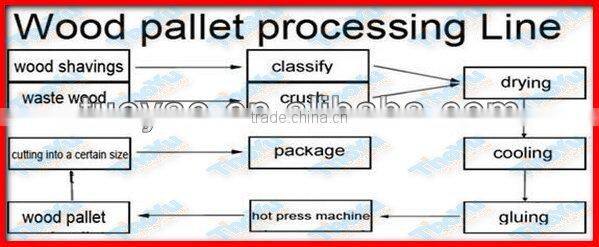

5>Processing line of Wood Pallet Blocking Machine:
1.Crush wood branches, biomass, used pallets, wood logs, waste wood etc into powder, wood shavings or wood chips.
2.Dry the raw materials into certain moisture as 10%.
3.Mix materials with glue water.
4.Press materials into block shape as your demand size.
6>Packing Situation of Wood Pallet Blocking Machine:
a. Machines are wrapped in plastic bags first before being convolved with rope.
b. Then the machines are putted in strong iron sheet case/wooden case which is free of fumigation, lined with metal wire if necessary.
7>Delivery time of Wood Pallet Blocking Machine:
within 7-15 work days after getting payment.
8>Payment terms of Wood Pallet Blocking Machine:
T/T, western union, money gram, Escrow, L/C, D/P, D/A, Paypal.
