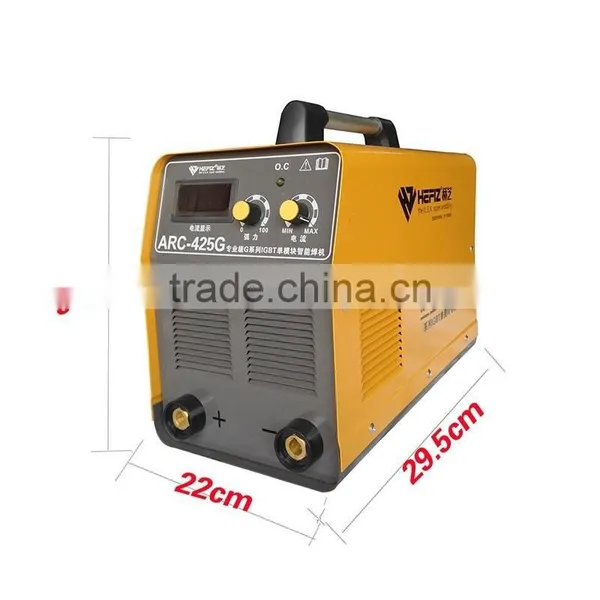

HIGH QUALITY HEFIZ WELDING MACHINE----ARC-425G
Main functions and features:
The inverting frequency is 20 KHZ, significantly reduced the volume and weight of the machine.
The significantly reduced copper loss improves the efficiency of welding machine, and energy saving effect is obvious.
The switching frequency is not in the audio frequency range, almost no noise.
The advanced design scheme of auxiliary power supply makes the welding machine’s power supply be wider application scope.
The advanced control scheme enhances the performance of the welding, which can meet the requirement of welding process better.
It can be widely used in the welding of various types of acid, alkaline electrodes.
It has the characteristics of easy arc strike, small splash, stable current, good molding etc..
The adjustable thermal arc improves the arc performance of the welding machine significantly.
The self-adapting push current significantly improves the performance of welding machine when welding in extension wire line.
Multifunctional, having the function of carbon arc gouging.
Can be equipped with infinite carrier and remote control, so the welding is more convenient.
Main technical parameters:
Power voltage/Frequency:3 phase 380V/suit for ¢5.0 electrode ¢4.0 with the change of welding
Rated input current (KVA): 18
Rated input current (V): 67
Rated load voltage (A): 20-425
Rated load voltage (V):36
Rated duty cycle (%): 60
Rated duty cycle (W) :100
Efficiency: 85
Power factor: 0.93
Insulation class: F
Protection class: IP21S
Diver adjustment arrange: 0-100
Overall dimensions (MM): 410x220x300
- Weight (KG): 15
