Home > Products > Other Machinery > 2015 MAYJOY Novel Invention High Mixing Efficiency Lab Use powder mixer ribbon blender
2015 MAYJOY Novel Invention High Mixing Efficiency Lab Use powder mixer ribbon blender
- 300 Unit / Units per Month
- Qingdao Shanghai
- Credit Card
Product Details
Condition: | New | Mixer Type: | Screw | Product Type: | Other, Various powder |
Application: | Powder | Additional Capabilities: | Milling | Place of Origin: | Henan, China |
Brand Name: | Mayjoy | Model Number: | MJT series | Max. Loading Capacity: | 5.6L |
Voltage: | 220v | Power(W): | 120kw | Certification: | ISO CE certificate, CE |
Warranty: | 12 months, 1 year |
Product Description
2015 MAYJOY Novel Invention High Mixing Efficiency
Lab Use powder mixer ribbon blender
Company brief introduction
Our factory is a professional manufacturer for mixing machine. We are an ambitious company with personality and strong ability in R&D. We do a lot of customization orders every years. You will not regret for your choice in us.
Product introduction of powder mixer ribbon blender

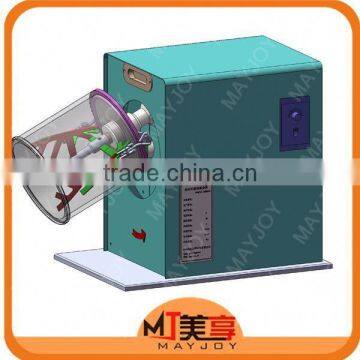

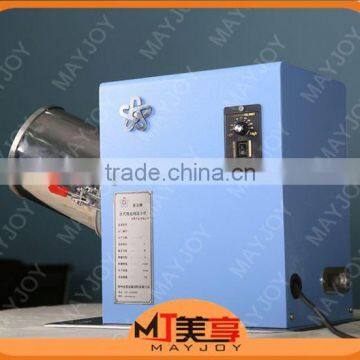

MJT powder mixer ribbon blender is an advanced mixing machine which is developed by our company.
We committed to be an innovative,scientific research and technical enterprise.
This powder mixer ribbon blender can be installed in different sizes of the vessel(2L~8L).It's convenient to remove and clean up the whole vessel and blades,prevent cross-contamination materials and meet your multiple small batch mixing experiment tasks.
This powder mixer ribbon blender has special antler shaped blades and the speed of the blades is 1.5 times as the vessel.During the material up and down or convection in the vessel,high evenness of mixing task can be completed because of the bidirectional shear and toggle of the antler shaped blades .
This is a speed (2~35r/min) of the double movement of energy efficient mixing machine and it can meet your a variety of hybrid experiment.
ADVANTAGE of powder mixer ribbon blender
1. Small-sized:
The out-form dimensions are 540*300*390mm and the single-phase electric power is 220V. So you can put it on the laboratory desk and it can be handled easily.
2. One Machine Multiple Containers
One powder mixer ribbon blender can be used as multiple machines. Different volume containers (3L-18L)can be installed whenever needed.
3. High Loading Ratio:
Compared with ordinary 3D mixer, ours' loading ratio is much higher. Because blades take major role in machine working. That is why our double movement mixer's loading ratio is high, max. Loading rate can reach 80% of barrel. For the same volume, the loading capacity of our one machine is almost equivalent to two 3D mixers.
4. Ideal Mixing Effect:
100% no dead corner. Due to the barrel revolving, the powder mixer ribbon blender can mix more evenly in general points. While blades stirring, the machine can mix more meticulously and completely in detail points.
5. Time-saving:
The mixing way of our powder mixer ribbon blender is two mixing ways superposed together, that is why our powder mixer ribbon blender has high efficiency. Compared with 3D mixer, our powder mixer ribbon blender can save 60% time to meet mixing standard.
6. Money-saving:
Compared with traditional mixer, our powder mixer ribbon blender can save time above 50%, save electricity about 70%, save space about 50%, money saving about 30%.
Application Range of powder mixer ribbon blender
1st .Applied to dry powder or semi-dry powder, it is usually used in these fields, such as powder metallurgy, rare earth, and pharmacy and so on.
2nd .Due to its high mixing efficiency, it is particularly suitable for mixing powder which demand strict requirement.
3rd .Suitable for fine powder, superfine powder, powder with big difference in specific gravity.
Technical parameter of powder mixer ribbon blender
Operational Modes | Cross revoling shaft double movement mixer |
Gear Motor | Guo Mao brand 120w |
Power Requirement | 220V 50HZ |
Barrel Capacity(L) | 2(2/3/5/8 are available ) |
Loading Coefficient | 80% |
Barrel Revolution Speed(r/min) | 2-35 |
Barrel Material | High quality stainless steel |
Barrel Thickness (mm) | 2.0 |
Blade Revolution Speed | 1.5 times as barrel |
Srew Blades and Support |
|
Material | high quality stainless steel |
Facility Weight(kg) | 26 |
Warranty(month) | 12 |
Our facotory:
We also have a lot other models of powder mixer ribbon blender available:
Welcome to comtact us for more information
...
