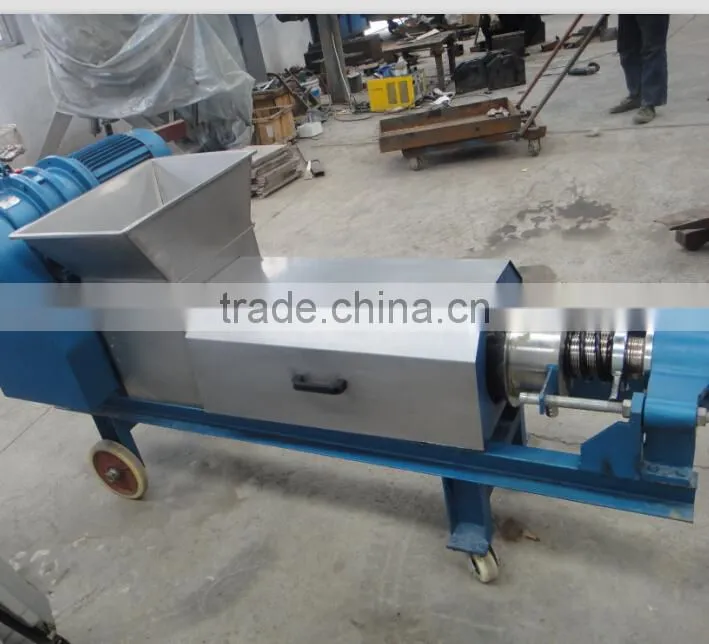

Stainless steel double screw fruit juicer machine/apple extruder for food industry use

Stainless steel double screw fruit juicer machine/apple extruder for food industry use

Application of Stainless steel double screw fruit juicer machine/apple extruder for food industry use:

This apple press machine is used for containing a certain fiber or have a sticky solid-liquid separation of the macrocosm materials. Such as grape skin residue after fermentation , ginger, spinach,

 rubber, Chinese herbal medicine, winter date, tea contains ,a certain fiber materials to extract dehydration or

juice, and also used to sea buckthorn continuously make fruit juice except the branches or contain a few sprigs ,

 the mesh specially made according to the size of the sea buckthorn fruit .

These pictures show the material suit forextraction or extrusion to get what you need.(juice or  residue after remove the water according the detail request)

The working principle and structure of Stainless steel double screw fruit juicer machine/apple extruder for food industry use:

This apple press machine is the screwtype press.The working process is the conveying  screw push

 the material which will enter the  workbin into screw press, decreased by squeezing screw pitch

and diameter  of axle,  and under the action of cone resistance and screen wall, make

 the material of the liquid (juice) will be squeezed out. Squeeze the liquid outflow from the mesh,

concentrated in the juice in the bucket. The pomace after squeezing, conversion between the end of the

 cylindrical screen and conical body eduction,conical spring loaded at the back of the body, by adjusting

 the spring pretightening force and position, can change the size of the resistance and slag notch,

sed to adjust the  squeezing degree of dry and wet.

Note: The feeding box and sieve tube and screw of this machine adopt high-quality acid and alkali

 resistant 304 stainless steel materials.

Structure of the apple press machine inside explain :

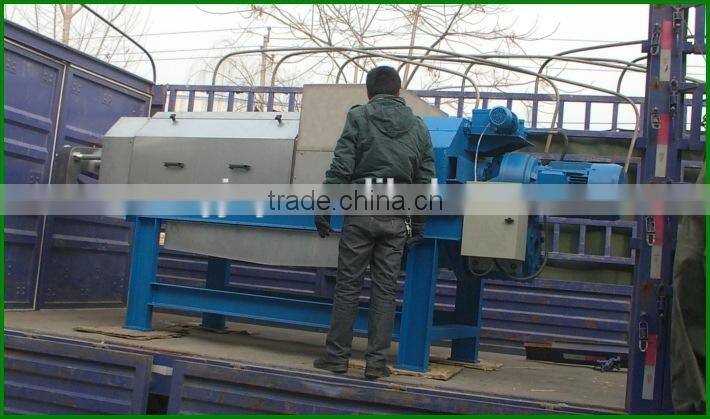

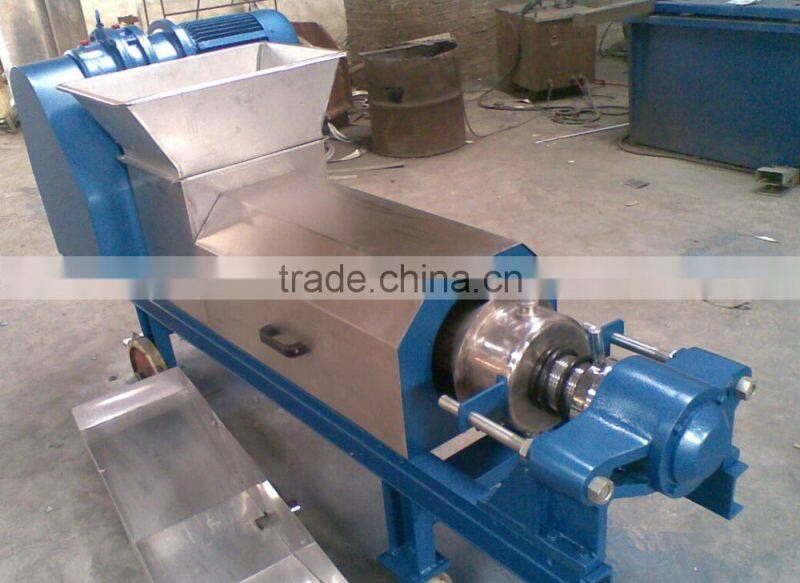

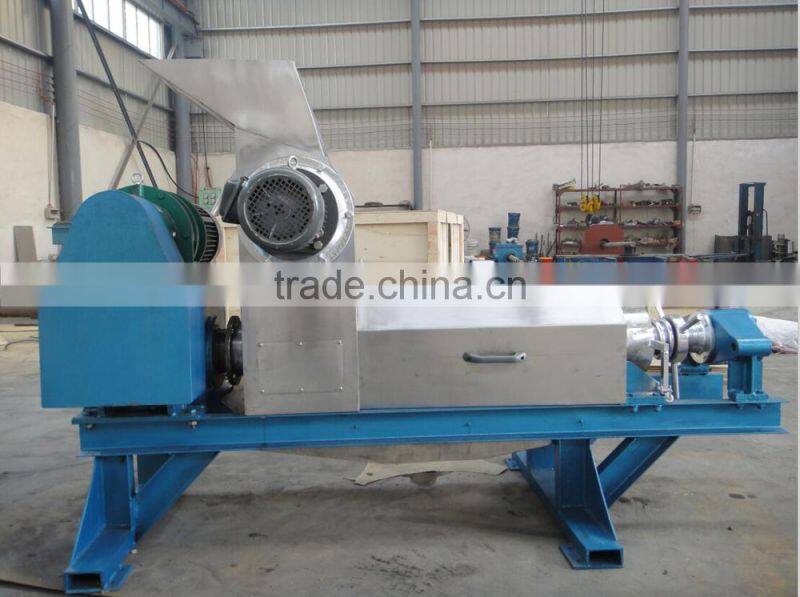

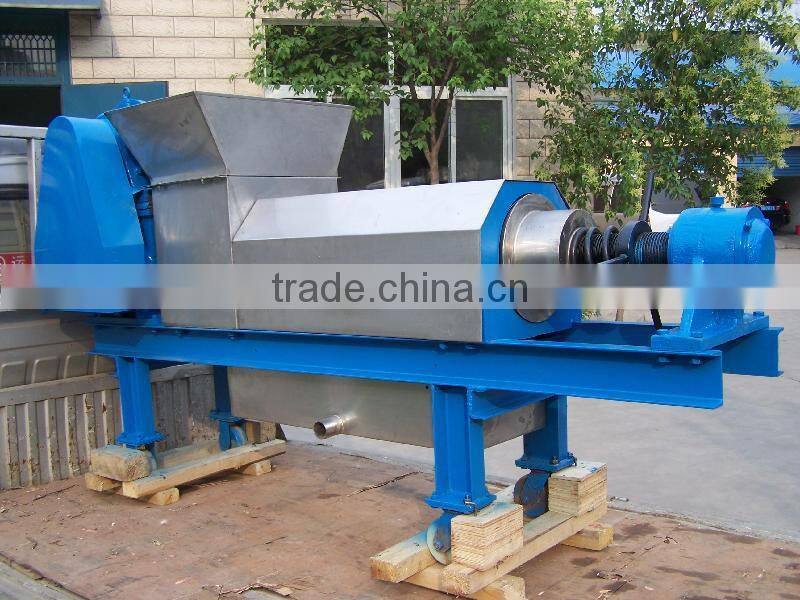

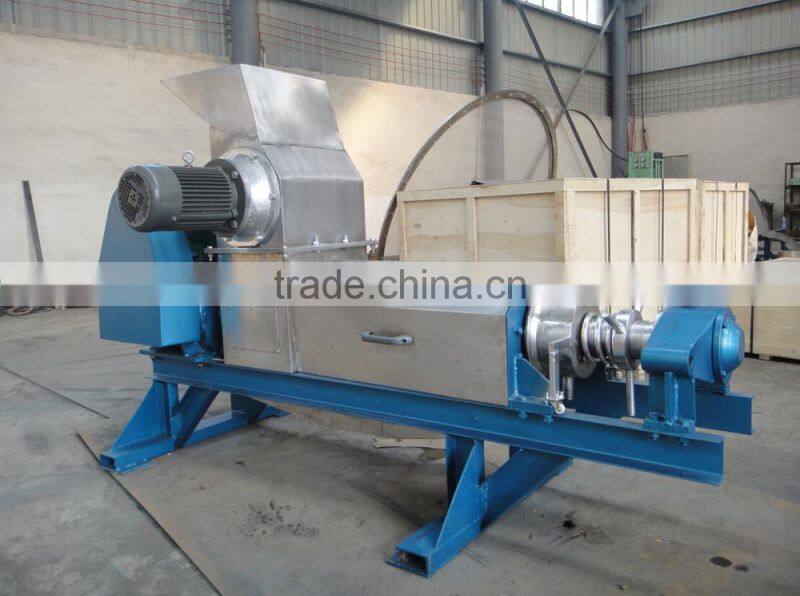

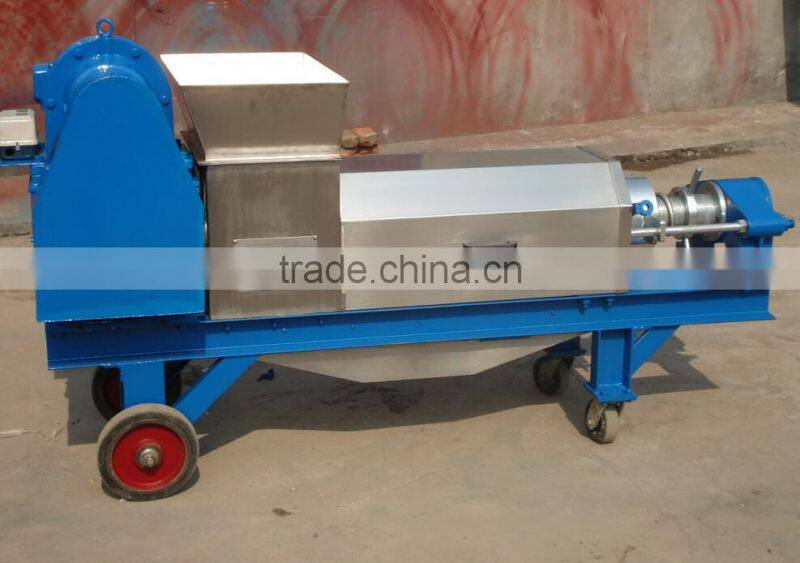

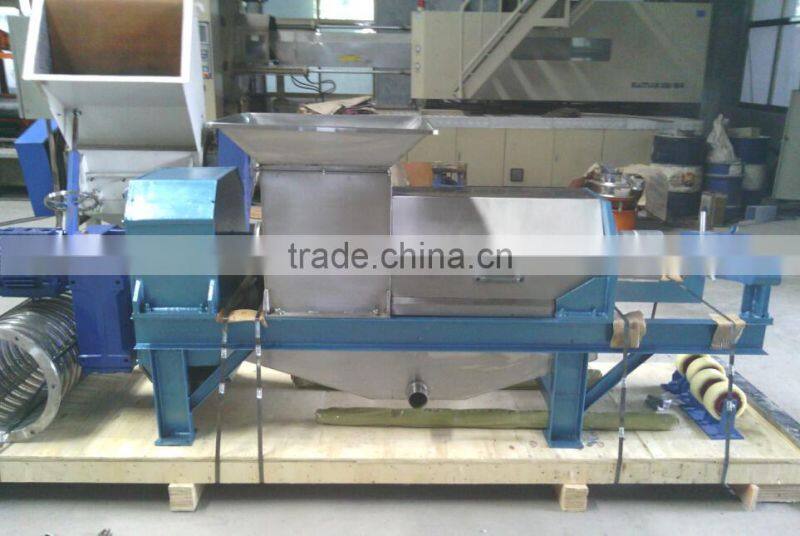

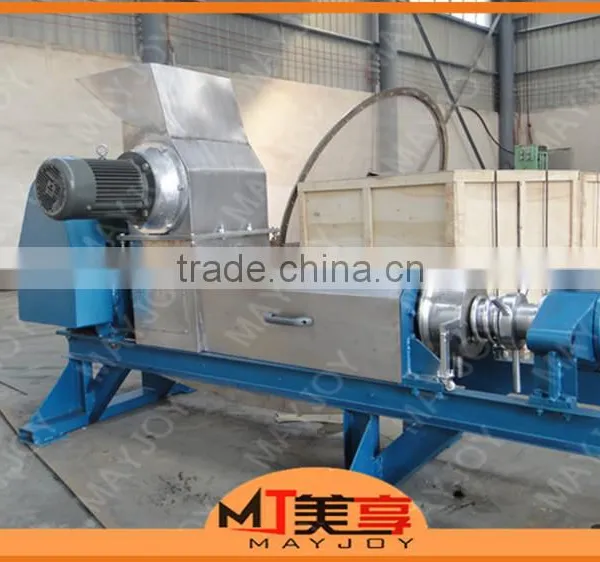

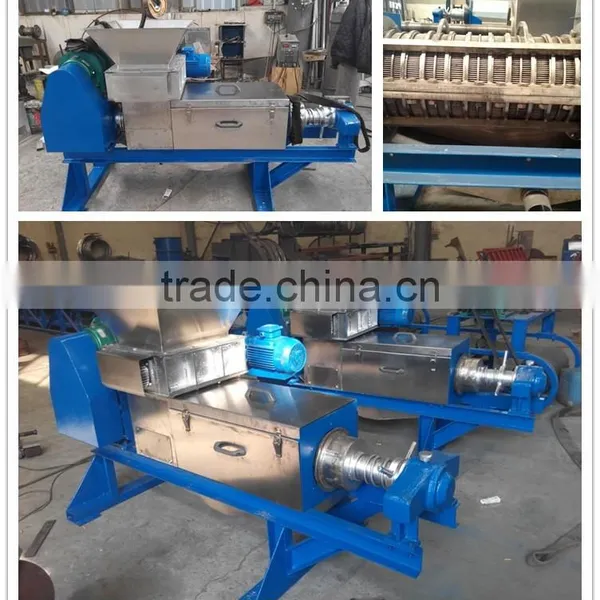

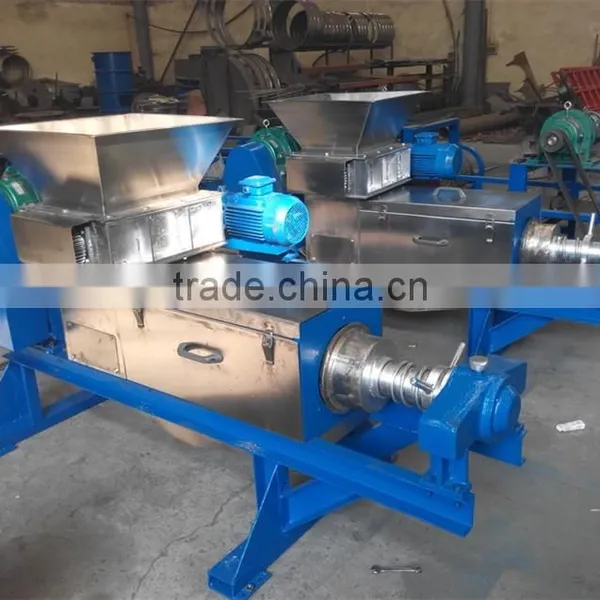

Some pictures of Stainless steel double screw fruit juicer machine/apple extruder for food industry use .

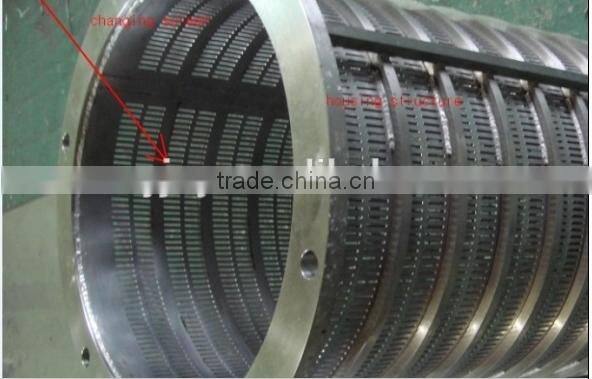

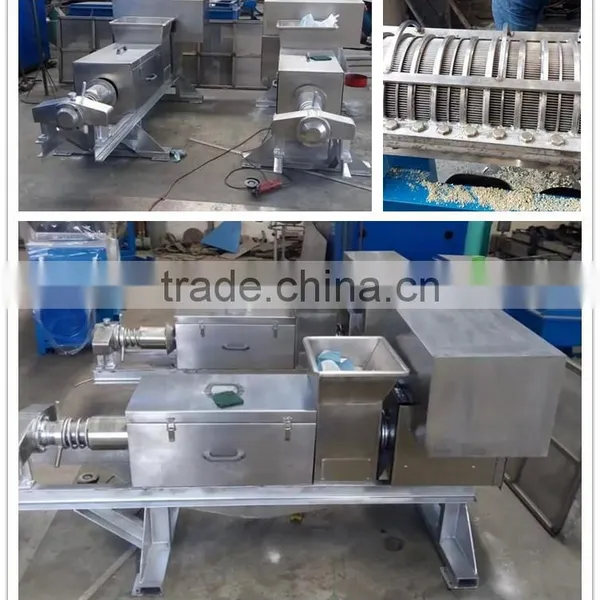

Screen of Stainless steel double screw fruit juicer machine/apple extruder for food industry use

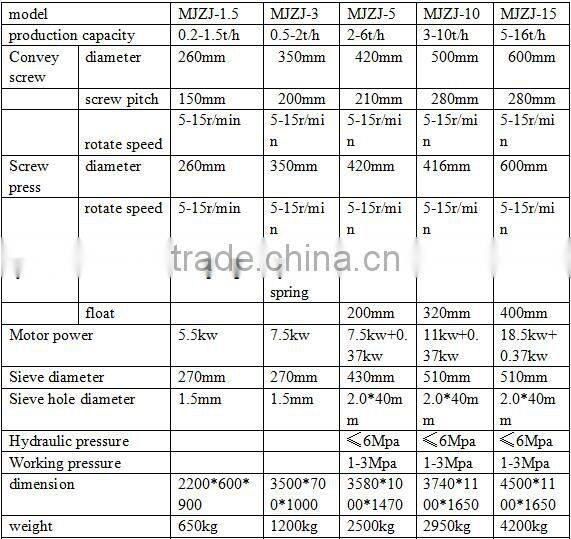

Parameter of Stainless steel double screw fruit juicer machine/apple extruder for food industry use

 Question :What this apple press machine apply to ? it is what i need ?

Answer :this machine is double or single apple press machine,mainly for industry raw juice extracting ,like ,grapes ,apple ,lemon ,pear ,blueberry etc extraction for juice , also for vegetable or other farm plant dehydrator usage , like carrot ,ginger jam ,it also for some special use like cassava dewater extruding ,manure extruding ,distiller extraction etc enviroment use .

Question :How about your apple press machine quality ?

Answer:Our machine passed the CE certification ,and it made of stainless steel ,can make sure the working and life of the machine in a good performance .we also atach the quality certification with the machine for the customer can contact us freely once any help .

Question :I want to set a fruit processing workshop or small factory and need this machine ,but i don't know what to do next step and what machine use ,can you give us more advise ?

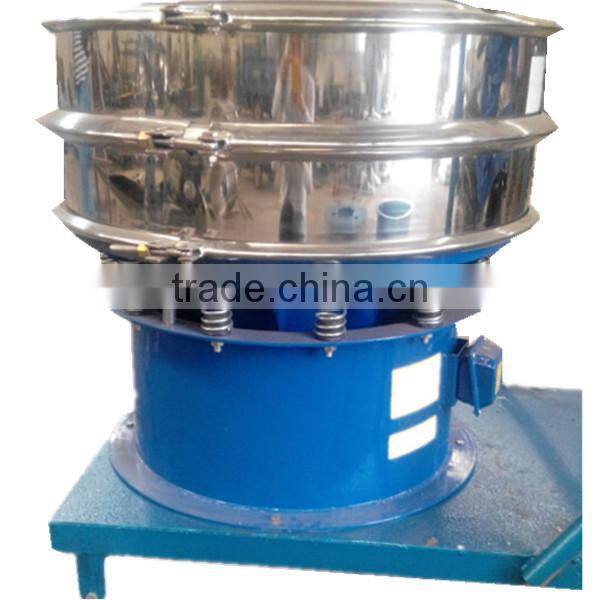

Answer :for fruit early beginning processing ,what you need to do is ensure the health of the juice ,also we should choose the machine as your request and budget ,at leat one screw juice extractor ,and we also have Rotation Vibrating Sieve for cooperation use ,first extraction for the fruit juice ,the original juice put into Vibrating Sieve for fliter ,then put the material being  flitered again through our screw extraction machine for again extracting ,such can ensure the juice rate and original juice purity for the other step have a easy processing.Our Vibrating Sieve like this pictures

If you have interest or want more information about the industry stainless steel apple press machine ,

contact me freely.
